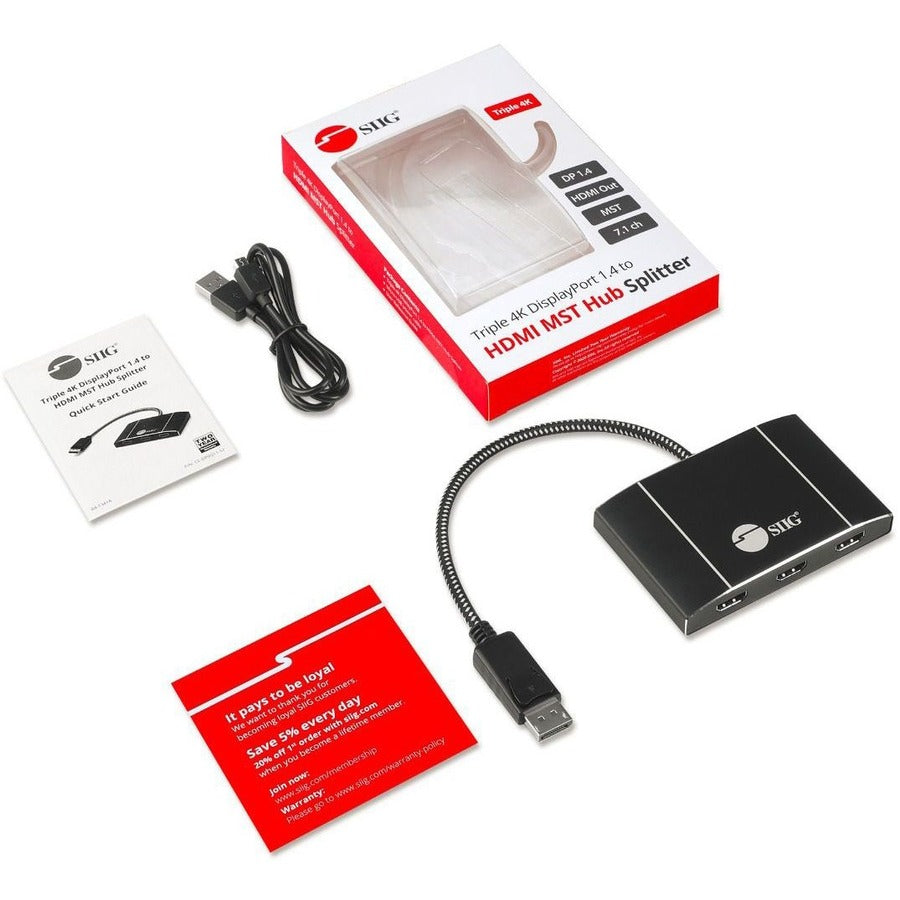

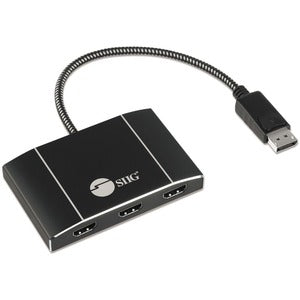

Triple 4K DisplayPort 1.4 to HDMI MST Hub Splitter

Item #: 9BF183   |   Model #: 0662774043951

  |   10 Questions
Regular price
Sale price
Regular price
Sold out
Unit price

1 Each

Special Buy

Type Value
Brand Name SIIG
DisplayPort Yes
Manufacturer SIIG, Inc
Manufacturer Part Number CE-DP0Q11-S1
Manufacturer Website Address
Marketing Information Connect up to three HDMI displays to single DisplayPort 1.4 output with Multi-Stream Transport (MST), no driver required, Windows PCs, not Mac OS compatible, DP 1.4 MST Video Splitter Hub, 3 HDMI, Dual 4K60Hz or Triple 4K30Hz

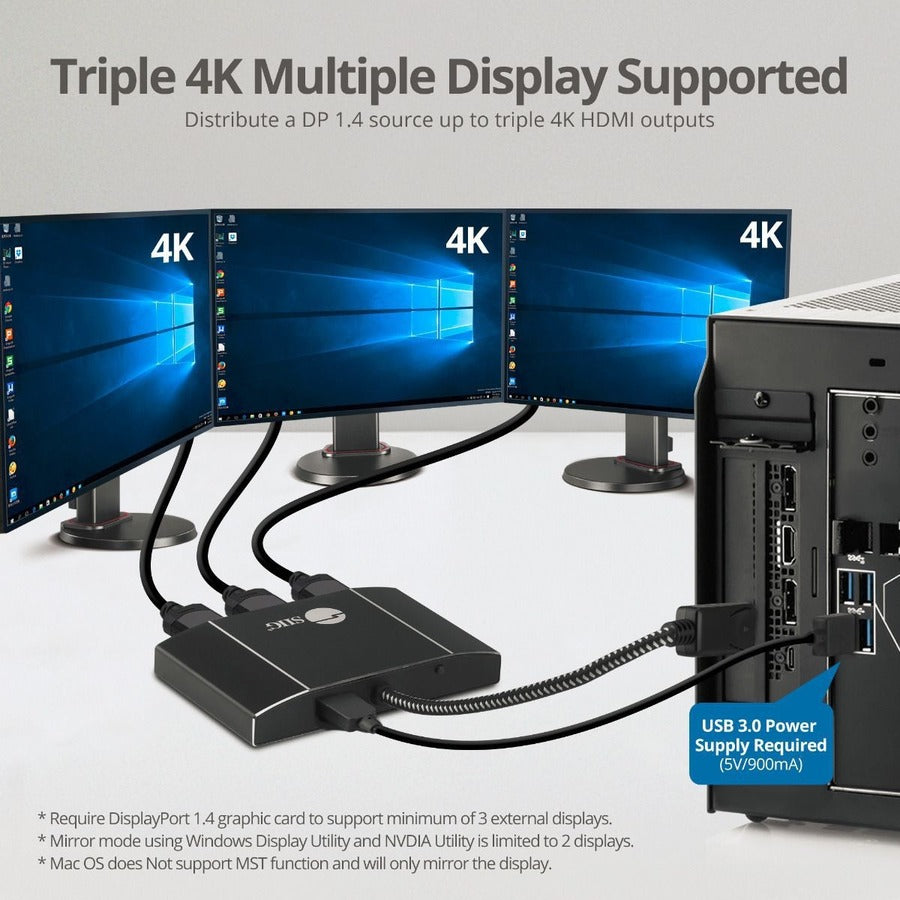

  • Boost your productivity by connecting three HDMI displays to single DisplayPort 1.4 output with Multi-Stream Transport (MST) technology

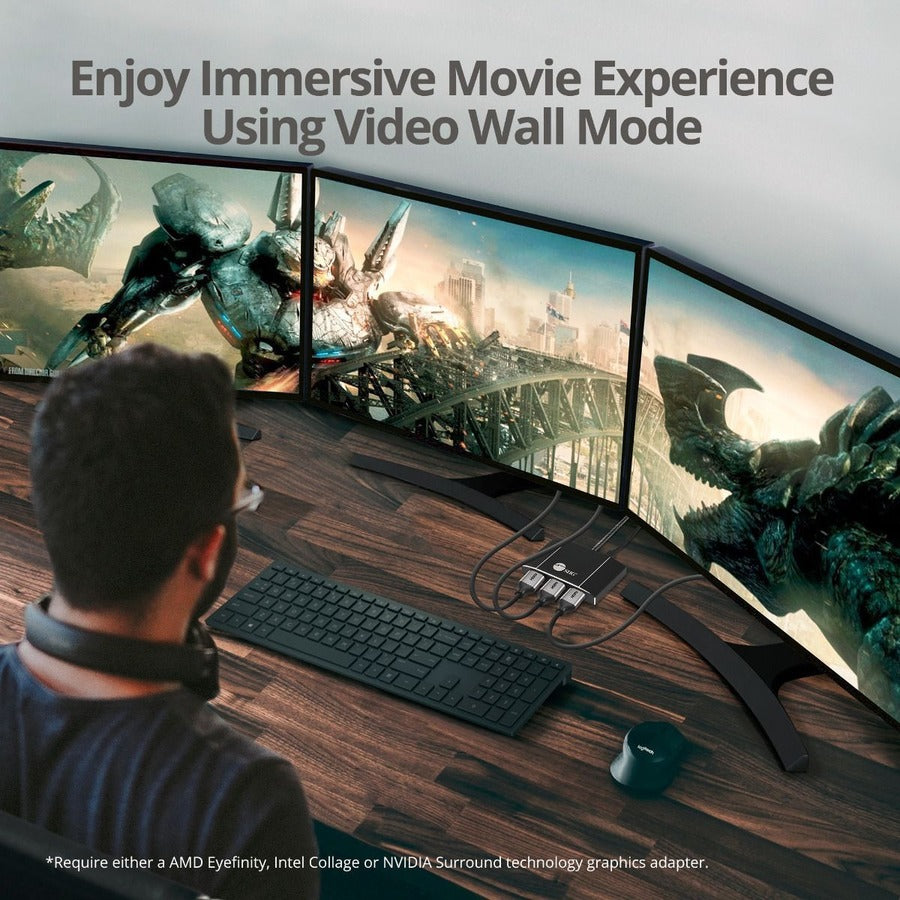

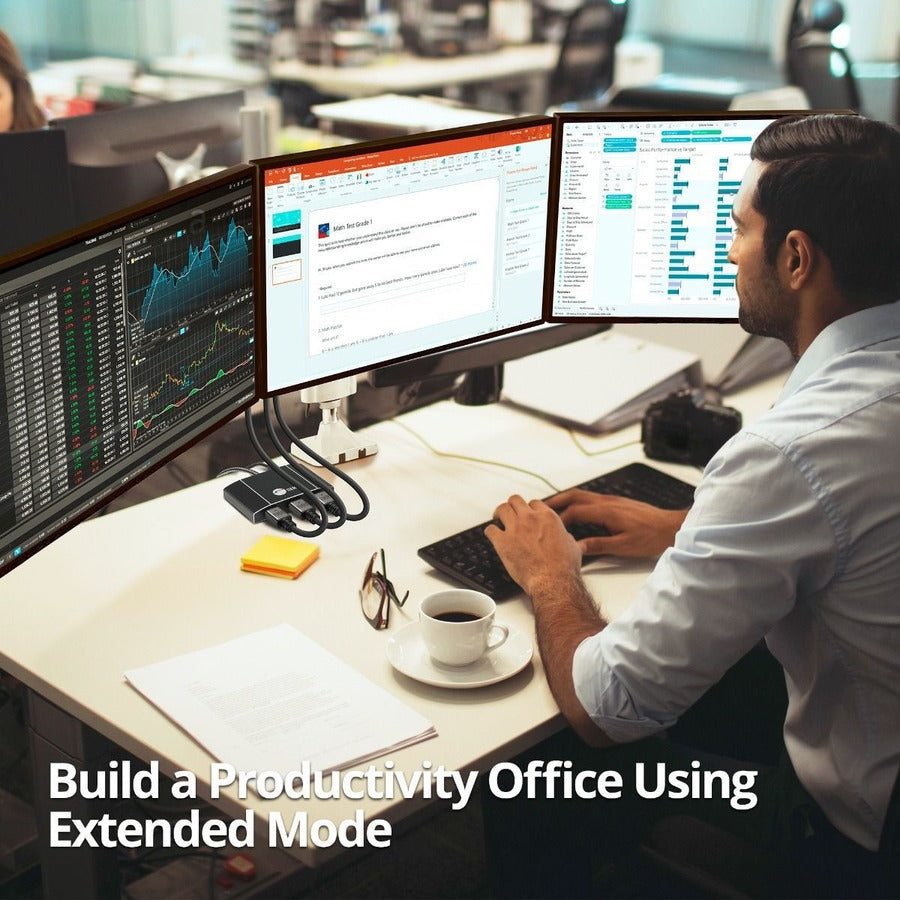

  • Provides multiple display modes for various applications such as Mirror mode* same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode** which combines multiple monitors to use as one large display

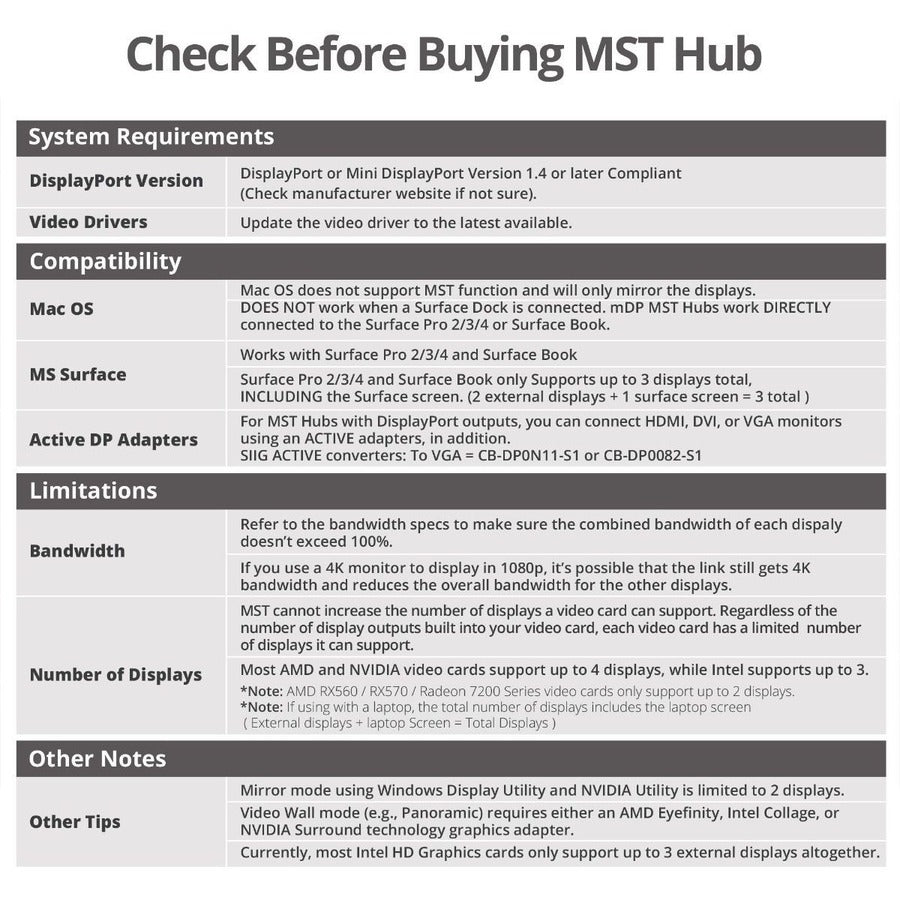

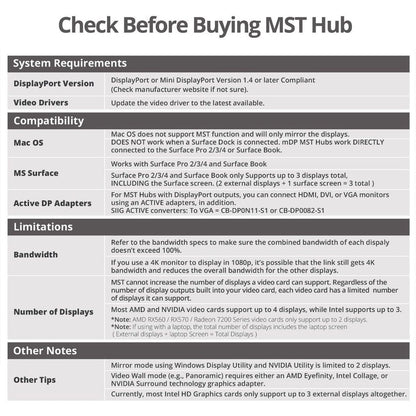

    Note: *Mirror mode using a NVIDIA Surround technology graphics adapter is limited to 2 displays. **Video Wall mode requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter

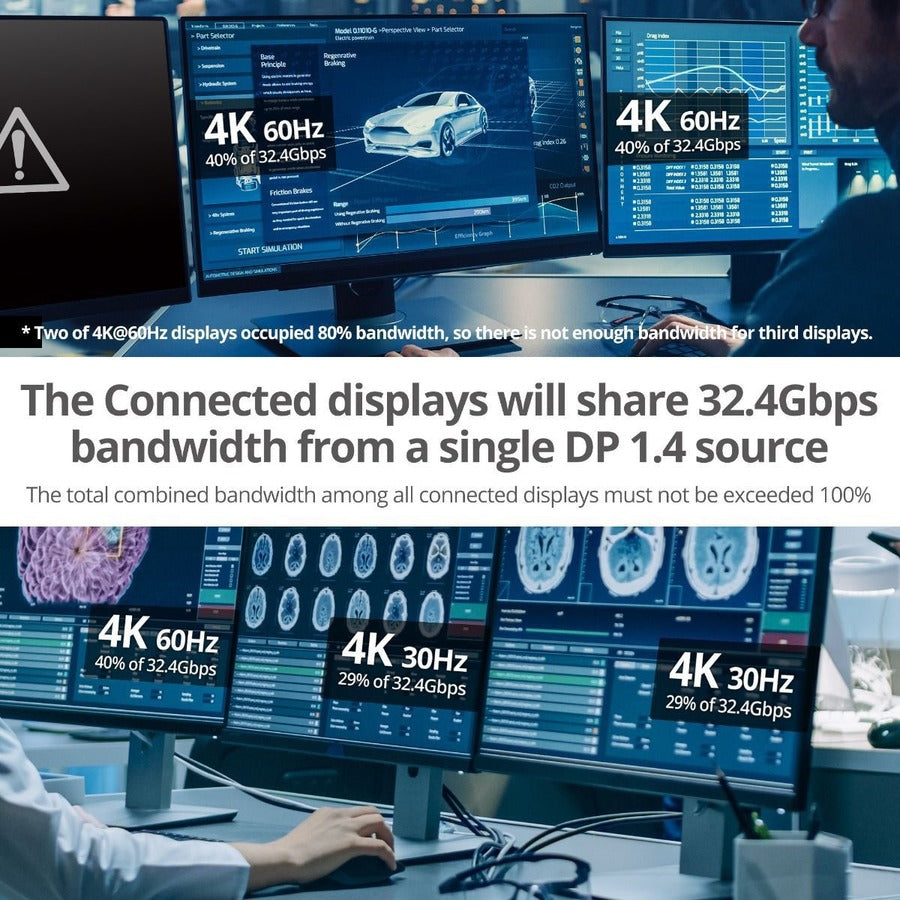

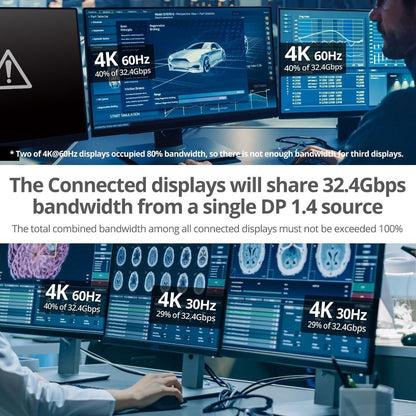

  • Total Bandwidth 32.4Gbps (Max): Supports one UHD 8K (7680 x 4320)@30Hz display, two 4K@60Hz displays, or three 4K (3840x2160)@30Hz or less display. Other resolution combinations which are less than or equal to 4K@30Hz will work also. For example, three 2K, three 1080p, 4K+2K+1080p etc
    Note: The total combined bandwidth among all connected displays must NOT be exceeded the total bandwidth of 32.4Gbps
  • Compatible with DisplayPort 1.4 MST graphics cards with AMD Eyefinity, Intel Collage or NVIDIA Surround technology
  • Support 4K HDR and HDCP 2.2

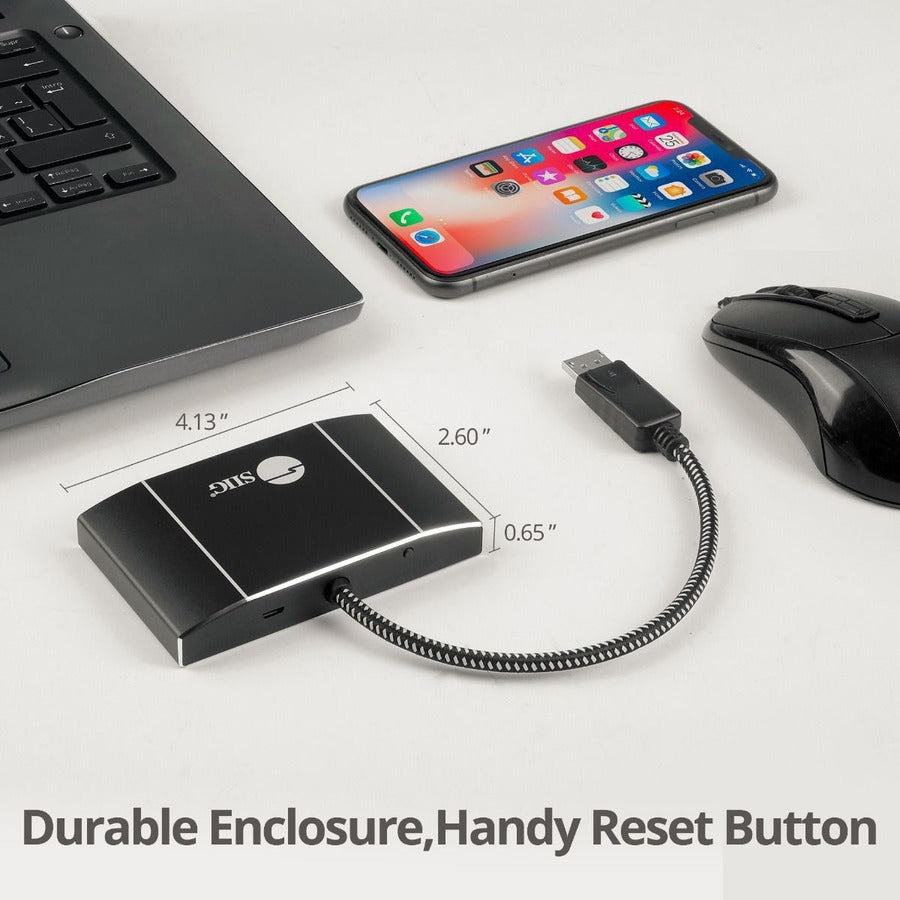

  • Reset button allows re-detection of all the displays if any of the displays are not detected
  • Plug-n-play, trouble-free set up without complicated hardware or driver installation
  • Premium aluminum housing with embedded woven braided DisplayPort cable decreases surrounding interference and provides optimal video quality

More from the Manufacturer

Product Name Signal Splitter
Product Type Signal Splitter
