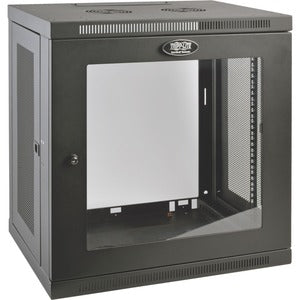

ContactTripp Lite 12U Wall Mount Rack Enclosure Server Cabinet w/ Glass Front Door
Item #: 4294048 | Model #: 0037332187307
| 10 Questions
| Type | Value |
|---|---|
| Application/Usage | Server |
| Assembly Required | No |
| Brand Name | Tripp Lite |
| Country of Origin | China |
| Depth | 17.7" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form Factor | Wall Mountable |
| Height | 25.1" |
| Limited Warranty | 5 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SRW12UG |
| Manufacturer Website Address | http://www.tripplite.com |

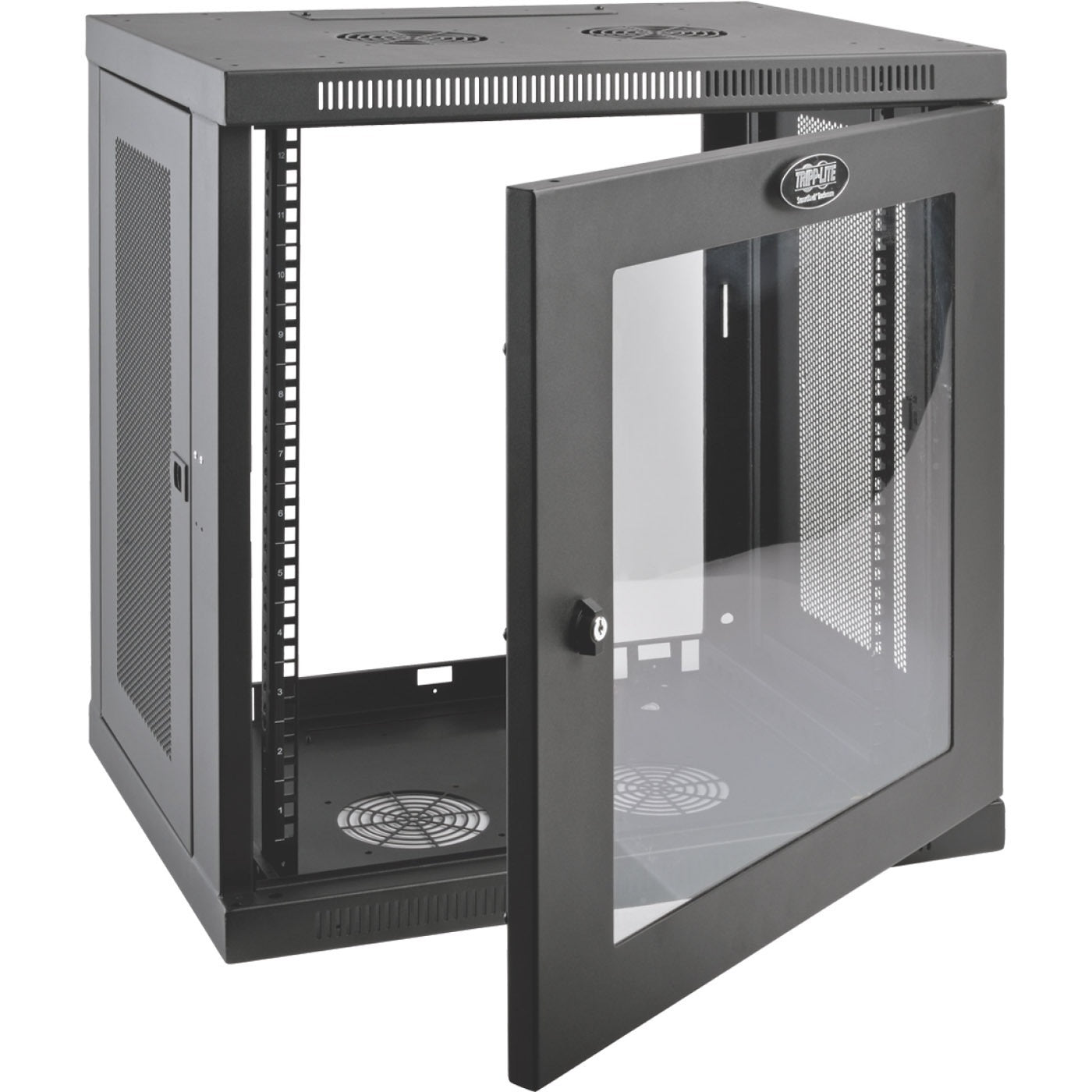

| Marketing Information | The SRW12UG SmartRack 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation. The side panels and front door lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW12UG comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels. |
| Maximum Weight Capacity | 200 lb |

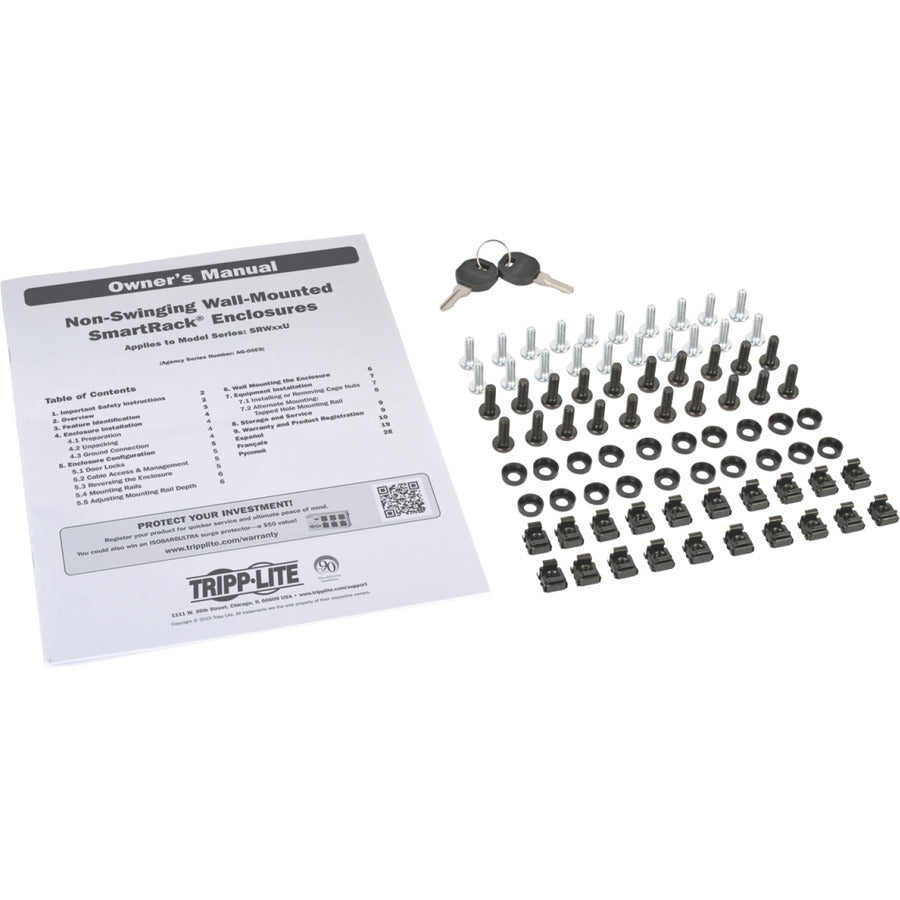

| Package Contents |
|
| Product Color | Black Powder Coat |
| Product Line | SmartRack |
| Product Material | Steel |
| Product Model | SRW12UG |
| Product Name | SRW12UG SmartRack 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet |
| Product Type | Rack Cabinet |
| Rack Depth | 16.50" |
| Rack Height | 12U |
| Rack Width | 19" |
| Static/Stationary Weight Capa | 200 lb |
| Weight (Approximate) | 48.50 lb |
| Width | 23.6" |
Tripp Lite 12U Wall Mount Rack Enclosure Server Cabinet w/ Glass Front Door - For Server - 12U Rack Height x 19" Rack Width x 16.50" Rack Depth - Wall Mountable - Black Powder Coat - Steel - 200 lb Maximum Weight Capacity - 200 lb Static/Stationary Weight Capacity
