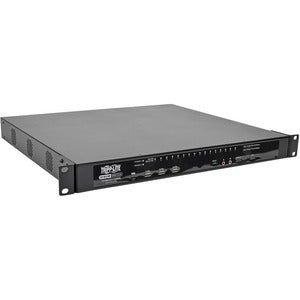

ContactTripp Lite 16-Port KVM Switch Cat5 Over IP 1 Local 2 Remote User 1U TAA GSA
Item #: 2604222 | Model #: 0037332151513
| 10 Questions
| Type | Value |
|---|---|
| Brand Name | Tripp Lite |
| Country of Origin | Taiwan |
| Daisy Chain Supported | Yes |
| Depth | 16" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form Factor | Rack-mountable |
| Graphic Mode | UXGA |
| Height | 1.8" |
| KVM Technology | Digital |
| Limited Warranty | 3 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | B064-016-02-IPG |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Tripp Lite's 16-port NetDirector Cat5 IP KVM Switch is the optimal solution for remotely controlling multiple computers (combination of PS/2, USB and Serial) by up to 3 (1 Local and 2 Remote) independent, simultaneous users. A single unit occupies a mere 1U of rack space, yet can control up to 16 directly connected computers, and a maximum of 256 computers when a second level of B064-016 KVM switches are cascaded. A full-screen graphical OSD with multi-level authentication (Super Administrator, Administrator and User) allows you to quickly and efficiently manage your installation, and can be displayed in English, German, Russian, Japanese, traditional Chinese and simplified Chinese. Critical events on the installation can be tracked via email notification, SNMP traps, the Windows based log server or Syslog server. Accessing the connected computers is a breeze; view multiple computers at the same time using panel array mode, automatically sync USB mice, access the on-screen keyboard feature in numerous language formats. Virtual Media allows computers connected using a B055-001-USB-V2 Server Interface Unit to access DVD/CD drives, flash drives and other storage media as if they were directly connected to the computer. In addition, three USB ports are located on the front panel of the unit for use with Virtual Media or an external keyboard and mouse. Other features include dual power supplies that allow the unit to continue running in the event one power supply stops receiving power, temperature sensors that control the speed of the unit's cooling fans, remote authentication support via RADIUS, LDAP, LDAPS and Active Directory, dial-in modem access and non-browser access using Windows and Java applications. Constructed of heavy-duty steel housing. 3 year limited warranty. |
| Maximum Video Resolution | 1600 x 1200 |
| Network (RJ-45) | Yes |
| Number of Computers Supported | 16 |
| Number of Local Users Support | 1 |
| Number of Network (RJ-45) Por | 16 |
| Number of PS/2 Ports | 2 |
| Number of Remote Users Suppor | 2 |
| Number of USB Ports | 2 |

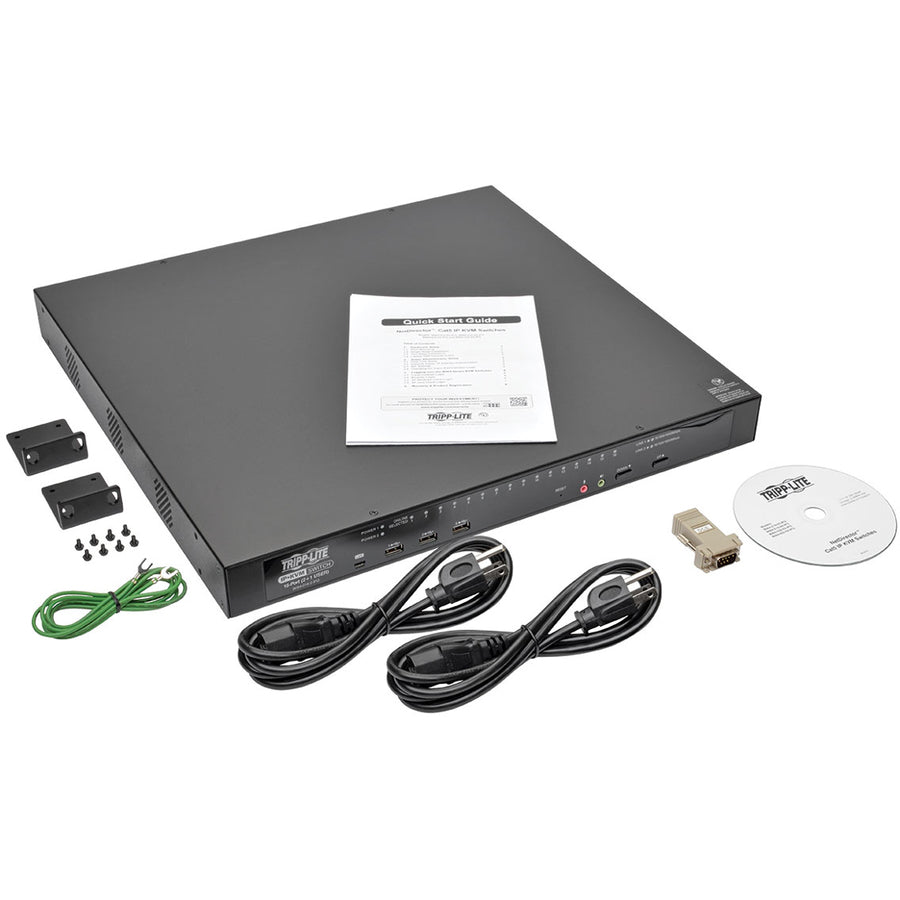

| Package Contents |
|
| Product Line | NetDirector |
| Product Model | B064-016-02-IPG |
| Product Name | NetDirector KVM Switch |
| Product Type | KVM Switchbox |
| PS/2 Port | Yes |
| Rack Height | 1U |
| TAA Compliant | Yes |
| USB | Yes |
| Weight (Approximate) | 17 lb |
| Width | 17" |
