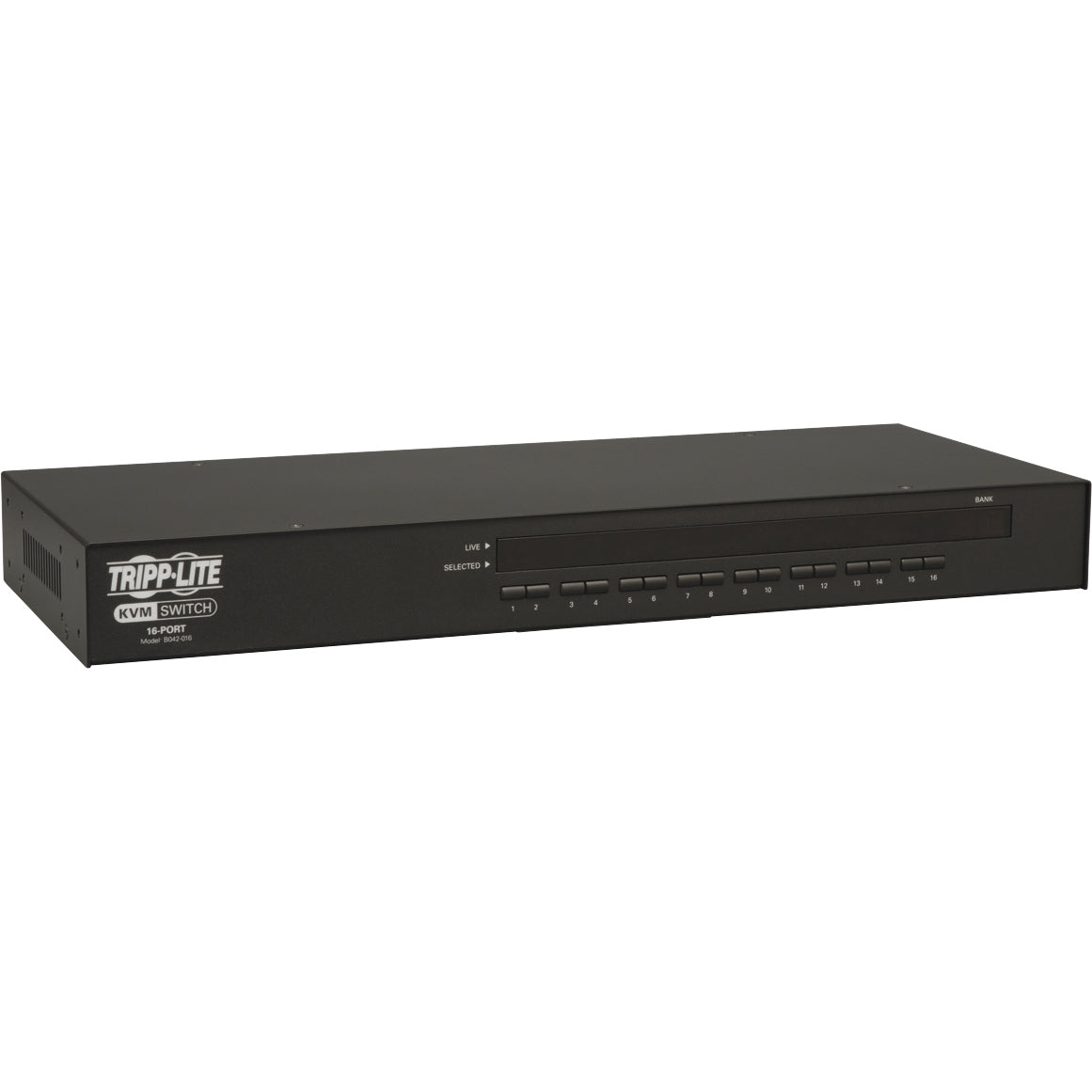

Tripp Lite 16-Port Rackmount USB / PS2 KVM Switch w/ On-Screen Display 1U

Item #: B042016   |   Model #: 0037332141408

  |   10 Questions
Regular price
Sale price
Regular price
Sold out
Unit price

1 Each

Special Buy

Type Value
Brand Name Tripp Lite
Country of Origin China
Daisy Chain Supported Yes
Depth 6.5"
Environmental Certification RoHS
Environmentally Friendly Yes
Form Factor Rack-mountable
Graphic Mode QXGA
Height 1.8"
Input Voltage 9 V DC
Limited Warranty 3 Year
Manufacturer Tripp Lite
Manufacturer Part Number B042-016
Manufacturer Website Address
Marketing Information

Tripp Lite's NetController 16-Port, 1U rackmount KVM Switch is an affordable, highly-flexible enterprise class KVM Switch, which allows the user to connect either USB or PS/2 keyboards and mice. In addition, P780-Series USB/PS2 combo KVM cable kits allow you to connect either USB or PS/2 computers, without the need to purchase separate cables or adapters. Control up to 16 directly connected computers, or expand the number of connected computers to up to 256 by daisychaining up to 15 additional B042-Series KVM switches. Switch between connected computers via the On-Screen Display (OSD), pushbuttons, or keyboard hotkey commands. Other features include: password protection, auto-scanning, auto-logout, firmware upgrade and video support up to 2048 x 1536 (QXGA). Mounts easily in a standard 19" rack/cabinet and includes all necessary mounting hardware. Compatible with all major operating systems. Constructed of heavy-duty steel housing. 3 year limited warranty.

Maximum Video Resolution 2048 x 1536
Number of Computers Supported 16
Number of PS/2 Ports 1

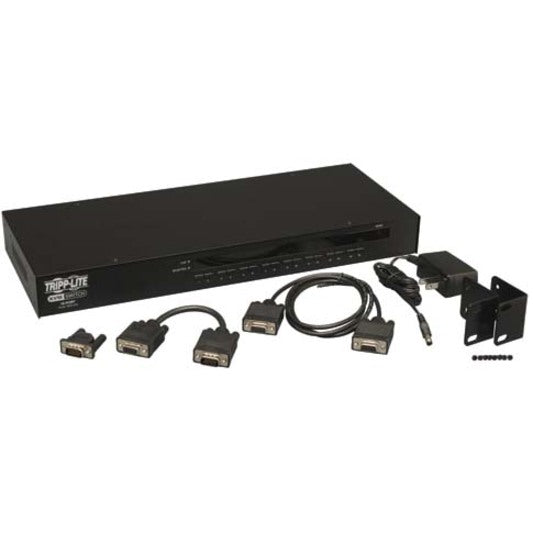

Package Contents
  • KVM Switch
  • External Power Supply
  • Rackmount Hardware
  • 8 In Daisy Chain Cable
  • Daisy Chain Terminator
  • 4 ft HD15 to DB9 Firmware Upgrade Cable
  • CD with Owner's Manual and Quick Start Guide
  • Quick Start Guide
Product Name KVM Switch
Product Type KVM Switchbox
PS/2 Port Yes
Rack Height 1U
Width 16.1"
