ContactTripp Lite 2-Port DVI Single Link Video / Audio Splitter / Booster DVIF/2xF
Item #: 2719675 | Model #: 0037332156747
| 10 Questions
| Type | Value |
|---|---|
| Brand Name | Tripp Lite |
| Country of Origin | Taiwan |
| Device Supported | Computer |
| DVI In | Yes |
| DVI Out | Yes |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Graphics Modes | WUXGA |
| Limited Warranty | 3 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | B116-002A |
| Manufacturer Website Address | http://www.tripplite.com |

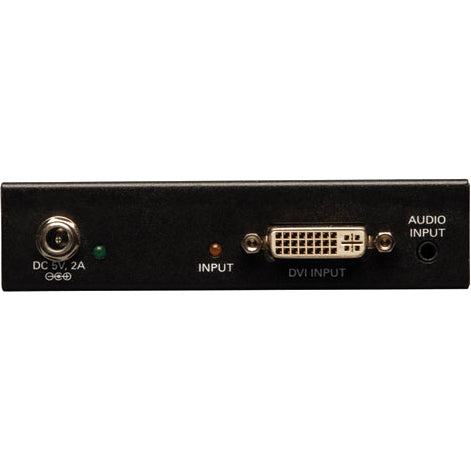

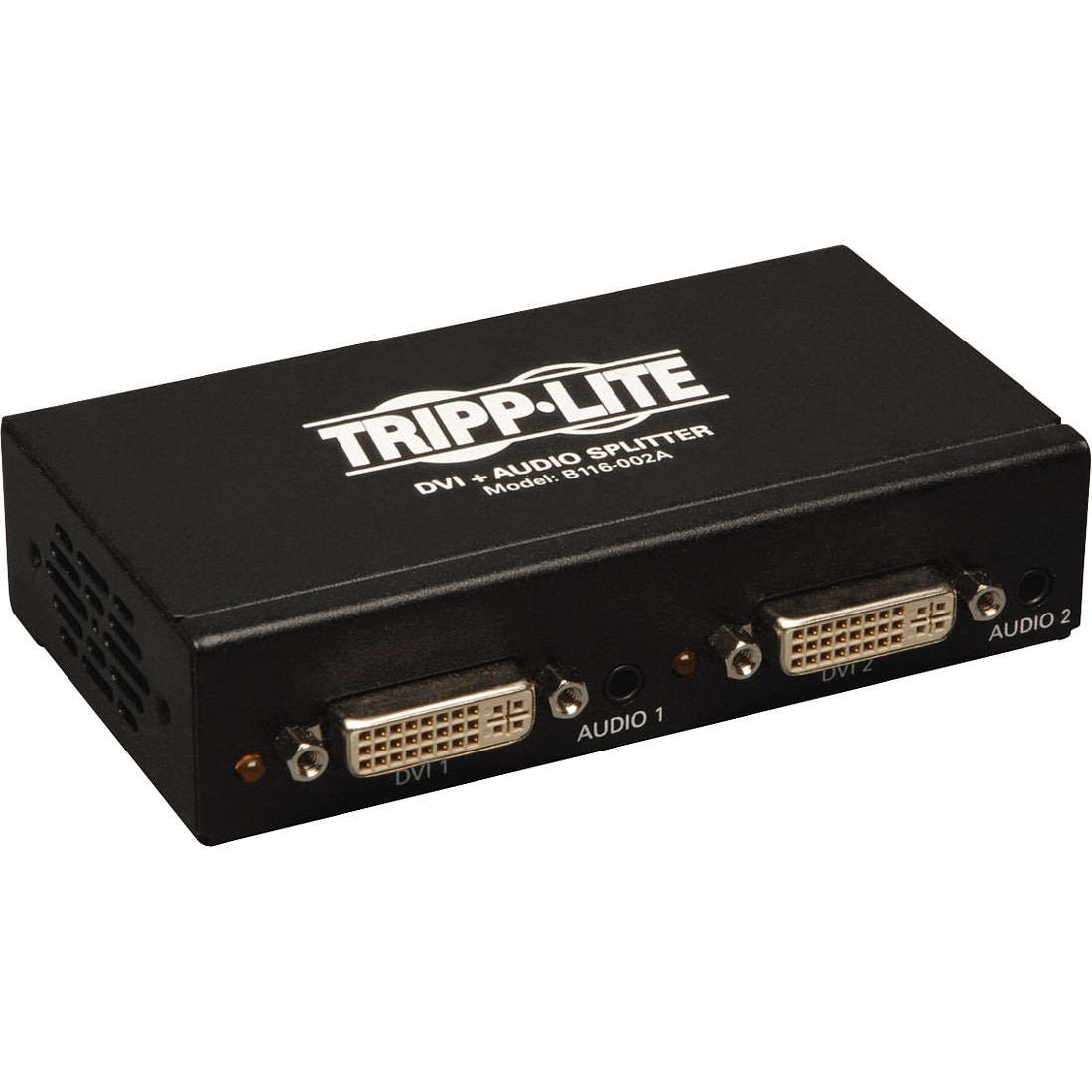

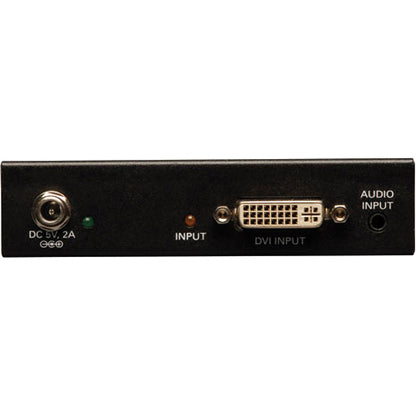

| Marketing Information | With Tripp Lite's 2-Port DVI + Audio Splitter, you can transmit a DVI-D Single Link video signal and 3.5 mm. audio signal to two sets of monitors and speakers. Supports DVI Single Link computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p. The unit is HDCP, EDID, and DDC compatible. A built-in signal booster allows you to extend the distance between the splitter and connected monitors past the 16 ft. (5 m.) distance limitation. For source video resolutions anywhere from 1600 x 1200 @ 60Hz to 1920 x 1200 @ 60Hz - The distance between the splitter and the connected monitor/speakers must not exceed 49 ft. (15 m.). This distance can be extended by using a B120-000-SL DVI extender. The B120-000-SL can be located up to 65 ft. (20 m.) from the splitter, and 16 ft. (5 m.) from the connected monitor. For source video resolutions lower than 1600 x 1200 @ 60Hz - The distance between the splitter and the connected monitor/speakers must not exceed 65 ft. (20 m.). This distance can be extended by using a B120-000-SL DVI extender. The B120-000-SL can be located up to 114 ft. (35 m.) from the splitter, and 16 ft. (5 m.) from the connected monitor. The number of connected monitors/speakers can be expanded by cascading up to three levels of splitters. Plug and Play...no software or drivers required. Mounting hardware is included with the product, and allows it to be rackmounted, wallmounted or pole-mounted. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. |
| Maximum Operating Distance | 16.40 ft |
| Maximum Video Resolution | 1920 x 1200 |
| Number of Displays Supported | 2 |
| Number of DVI Inputs | 1 |
| Number of DVI Outputs | 2 |
| Number of Input Devices Suppo | 1 |
| Package Contents |
|
| Product Model | B116-002A |
| Product Name | B116-002A TAA/GSA Compliant DVI Splitter |
| Product Type | Video Switchbox |
| TAA Compliant | Yes |
Tripp Lite 2-Port DVI Single Link Video / Audio Splitter / Booster DVIF/2xF - 1920 x 1200 - WUXGA - 1 x 22 x DVI Out - TAA Compliant
