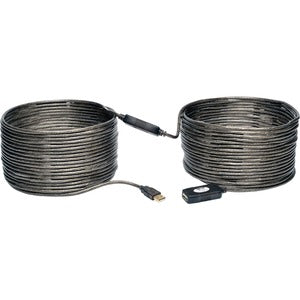

Tripp Lite 20M USB 2.0 Hi-Speed Active Extension Repeater Cable USB-A M/F 65ft 20 Meter

Item #: U02620M   |   Model #: 0037332167668

  |   10 Questions
$115.86
$115.86
Sold out

1 Each

Special Buy
Add to list
Type Value
Additional Information
  • 20 m. (65 ft.) USB2.0 Active Extension Cable, USB-A Male to USB-A Female
  • Full 480Mbps Transfer rate, as well as backward compatible to USB 1.1 ( 12Mbps )
  • Daisy Chain two cables for a total of 40 Meters ( 131ft )
  • Compatible with all major operating systems....Plug-and-Play; no software to load
  • The U026-20M provides up to 90mA of power to the connected device. If your device requires more than 90mA of power, it will either need to have its own power supply; or, to be plugged into a powered USB 2.0 hub (such as U222-004-R) that is connected to the U026-20M.
Brand Name Tripp Lite
Cable Characteristic Extension Cable
Cable Length 65.60 ft
Cable Type USB
Color Black
Connector on First End 1 x Type A Male USB 2.0 USB
Connector on Second End 1 x Type A Female USB 2.0 USB
Connector Plating Gold
Country of Origin China
Data Transfer Rate 480 Mbit/s
Device Supported USB Hub
Environmental Certification RoHS
Environmentally Friendly Yes
Features Strain Relief
Limited Warranty 3 Year
Manufacturer Tripp Lite
Manufacturer Part Number U026-20M
Manufacturer Website Address http://www.tripplite.com
Marketing Information Tripp Lite's U026-20M is a 20-meter (65 ft.) USB 2.0 active extension cable used to increase the length of a USB device cable beyond the 16.ft cable limitation without signal loss and potential performance problems. The U026-20M is a bus-powered extension cable with a built-in signal booster for regenerating the signal to achieve superior signal quality and data transmission. The overall cable length can be extended up to 131ft by daisy chaining up to 2 of active cables. Standard 6' 10' or 15' USB A-B cable to reach the desired distance. Meets or exceeds all USB 2.0 specifications and also supports faster data transfer for legacy USB 1.1 devices. Power capacity is up to 90mA of power to the connected device. (If more than 90mA is required, it will either (i) need to have its own power supply, or (ii) be plugged into a powered USB 2.0 hub (Tripp Lite U222-004-R).

Features

  • Maximum Extension Distance: Daisy-chain up to two 20m cables for a complete distance extension of up to 40m (131 ft.)
  • Error-Free Signal Transfer: Supports error-free data transmission at the high speeds of all your USB 2.0 devices. Legacy USB 1.1 devices also get a speed boost with transfer speeds from 1.5 to 480 Mbps
  • Universal Compatibility: The cable is compatible with all computers, devices and cables with USB A connectors. Backward compatible to USB 1.1 (12Mbps )
  • Power Capacity: The U026-20M provides up to 90mA of power to the connected device. If your device requires more than 90mA, it will either (i) need its own power supply, or (ii) be plugged into a powered USB 2.0 hub (such as Tripp Lite U222-004-R)
  • Premium Cabling: Premium double-shielded foil-and-braid cable provides maximum EMI/RFI protection and superior signal quality

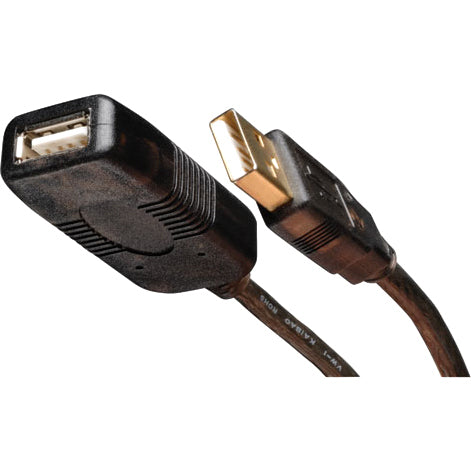

  • Gold-Plated Connectors: The U026-20M features gold-plated USB A connectors with gold-plated copper contacts to ensure excellent conductivity The connectors feature integral strain relief for durability and long life
  • Signal Booster: The built-in signal booster regenerates a USB signal for high quality and long extension distances
  • RoHS Compliance: The U026-20M is compliant with RoHS standards, reflecting Tripp Lite's commitment to environmental responsibility
  • Plug and Play Convenience: no software to load
Product Model U026-20M
Product Name USB 2.0 Active Extension Repeater Cable (A-A M/F), 20M (65-ft.)
Product Type Data Transfer Cable
