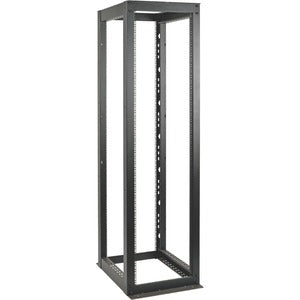

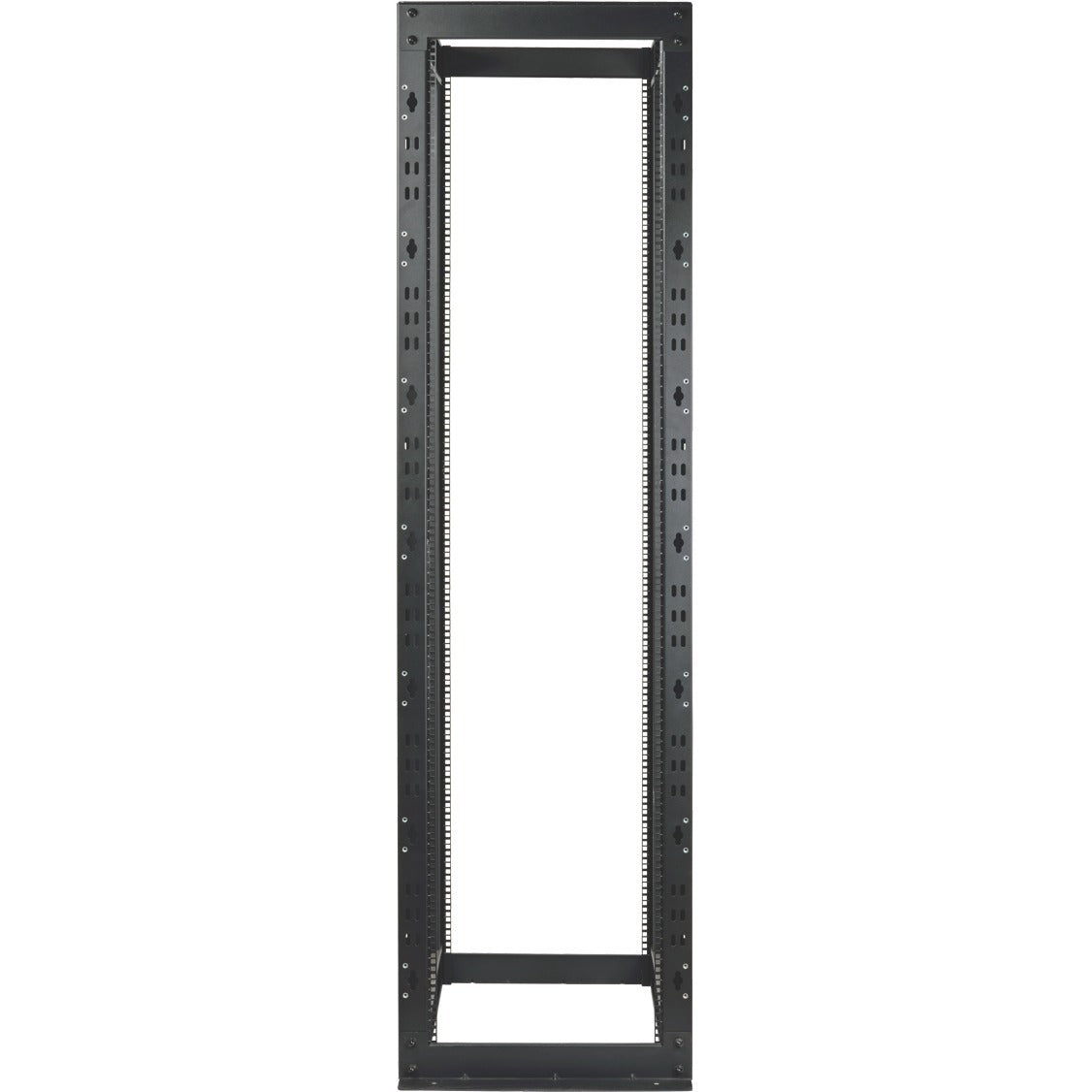

Tripp Lite 48U 4-Post Open Frame Rack Cabinet Heavy Duty 3000lb Capacity

Item #: 4185015   |   Model #: 0037332185778

  |   10 Questions
Regular price
$1,105.20
Sale price
$1,105.20
Regular price
Sold out
Unit price
per

1 Each

Special Buy

Tripp Lite 48U 4-Post Open Frame Rack Cabinet Heavy Duty 3000lb Capacity - 48U Rack Height x 19" Rack Width x 35.25" Rack Depth - Black Powder Coat - Cold-rolled Steel (CRS) - 3000 lb Dynamic/Rolling Weight Capacity - 3000 lb Static/Stationary Weight Capacity
Type Value
Assembly Required Yes
Brand Name Tripp Lite
Certifications & Standards
  • EIA-310-D
  • IEC 60297-3-100
  • DIN 41494
  • Tested to NOM (Mexico)
Country of Origin China
Depth 35.3"
Dynamic/Rolling Weight Capaci 3000 lb
Environmental Certification RoHS
Environmentally Friendly Yes
Features Cable Management
Height 90"
Limited Warranty 5 Year
Manufacturer Tripp Lite by Eaton
Manufacturer Part Number SR4POST48HD
Manufacturer Website Address http://www.tripplite.com
Marketing Information

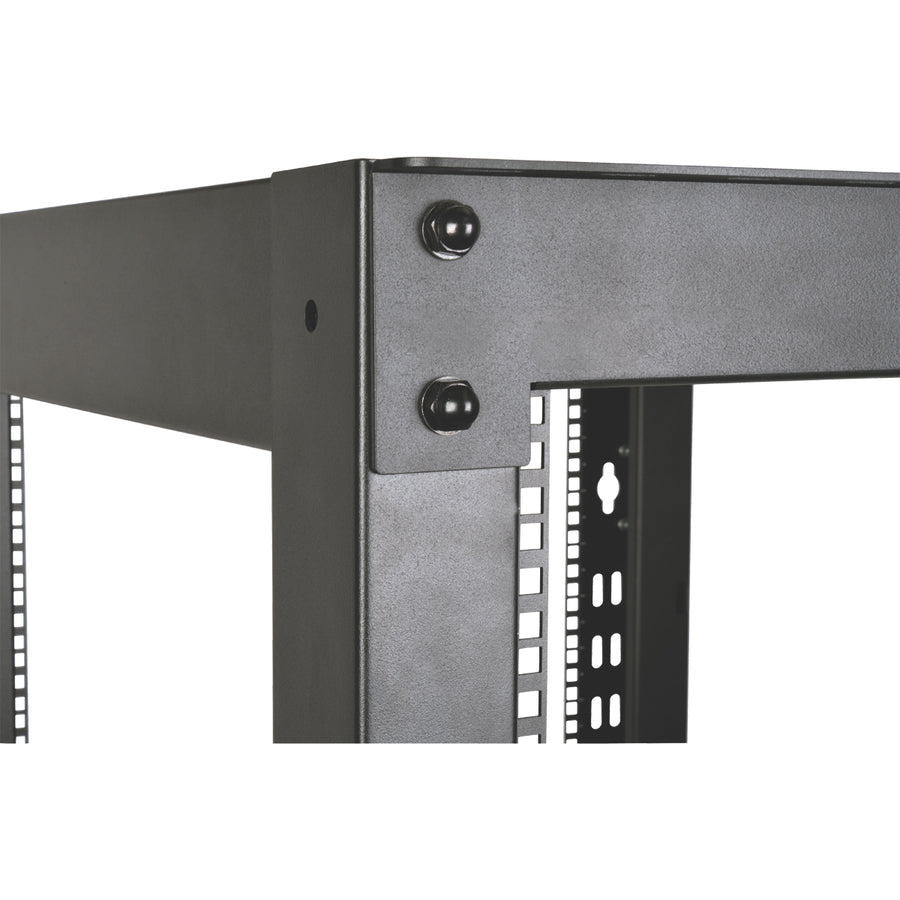

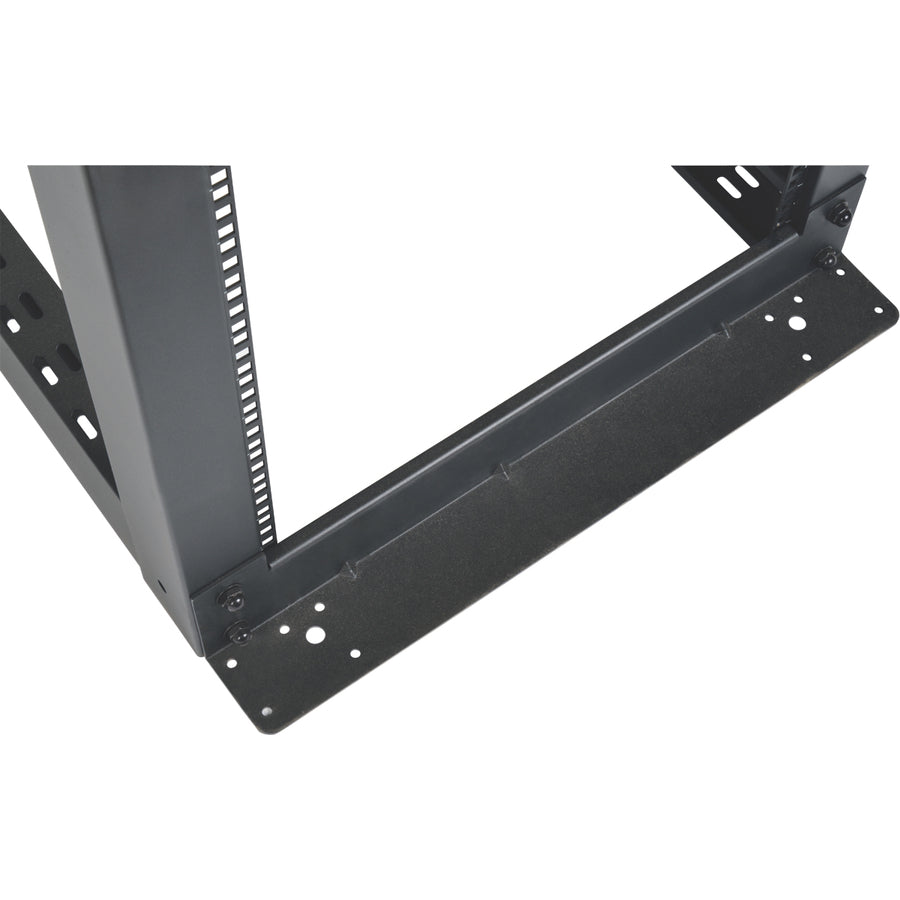

Tripp Lite's 48U Heavy-Duty 4-Post Open Frame Rack helps IT managers organize their equipment array and provides fast, easy access to installed IT equipment. The SR4POST48HD is a simple solution for housing IT equipment in secure environments and other areas that don't require a lockable rack solution. This 48U rack features heavy-duty cold-rolled steel construction with a black powder-coated finish for durability. It supports stationary loads up to 3000 lb. The SR4POST48HD comes with all the hardware required for assembly and has a self-squaring design with bolt-down provisions. For high-density applications, multiple units can be bolted together side by side.

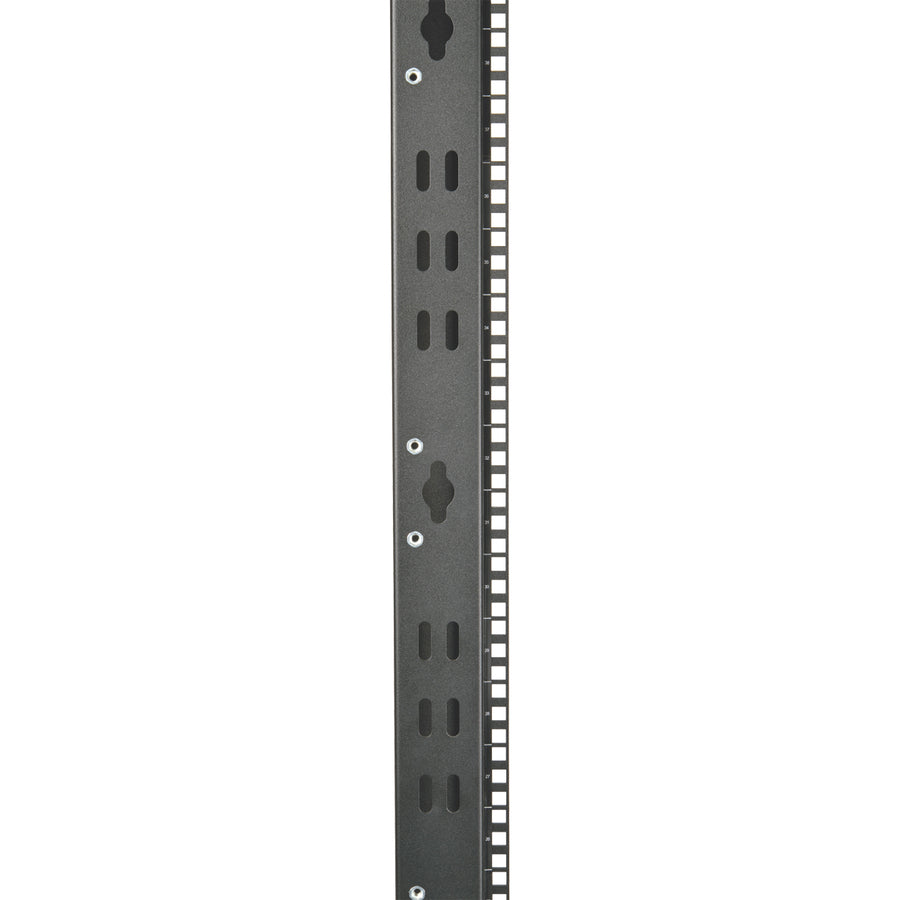

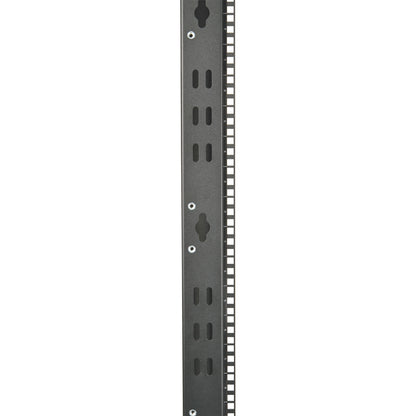

The open design of the SR4POST48HD provides unobstructed airflow and easy access to equipment and cabling. It has numbered, square-hole mounting positions for easy installation of standard 19-inch rack equipment. The SR4POST48HD supports equipment depths up to 35 inches. This rack also accommodates toolless button-hole mounting for vertical PDUs and cable managers.

The optional SRCASTERHDKIT Heavy-Duty Rolling Caster Kit adds mobility to the SR4POST48HD. The rack supports rolling loads of 3000 lb. The SR4POST48HD also supports optional side panels with the SR48SIDE4PHD, a set of two half-size side panels that add a finished look to end-of-row racks in your data center.

Package Contents
  • SR4POST48HD Heavy-Duty 4-Post Open Frame Rack
  • Installation Hardware
  • 2 x PDU/Cable Management Brackets
  • Owner's Manual with Warranty Information
Product Color Black Powder Coat
Product Line SmartRack
Product Material Cold-rolled Steel (CRS)
Product Model SR4POST48HD
Product Name SR4POST48HD Heavy-Duty 4-Post Open Frame Rack
Product Type Rack Frame
Rack Depth 35.25"
Rack Height 48U
Rack Width 19"
Static/Stationary Weight Capa 3000 lb
Weight (Approximate) 109.13 lb
Width 24"
Tripp Lite 48U 4-Post Open Frame Rack Cabinet Heavy Duty 3000lb Capacity - 48U Rack Height x 19" Rack Width x 35.25" Rack Depth - Black Powder Coat - Cold-rolled Steel (CRS) - 3000 lb Dynamic/Rolling Weight Capacity - 3000 lb Static/Stationary Weight Capacity
