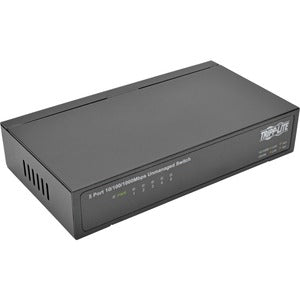

Tripp Lite 5-Port Gigabit Ethernet Switch Desktop Metal Unmanaged Switch 10/100/1000 Mbps

Item #: 4637340   |   Model #: 0037332194770

  |   10 Questions
Regular price
$58.24
Sale price
$58.24
Regular price
Sold out
Unit price
per

1 Each

Special Buy

Tripp Lite 5-Port Gigabit Ethernet Switch Desktop Metal Unmanaged Switch 10/100/1000 Mbps - 5 Ports - 1000Base-T - 5 x Network - Twisted Pair - Gigabit Ethernet - 2 Layer Supported - Desktop, Wall Mountable - 5 Year
Type Value
Brand Name Tripp Lite
Country of Origin China
Depth 3.1"
Environmental Certification WEEE
Environmentally Friendly Yes
Ethernet Technology Gigabit Ethernet
Form Factor Wall Mountable
Height 1.1"
Layer Supported 2
Limited Warranty 5 Year
Manageable No
Manufacturer Tripp Lite by Eaton
Manufacturer Part Number NG5
Manufacturer Website Address http://www.tripplite.com
Marketing Information The NG5 5-Port 10/100/1000 Mbps Desktop Gigabit Ethernet Unmanaged Switch adds 10/100/1000 Mbps Ethernet capacity to your home office, small office, workgroup or creative production environment. Share large bandwidth-intensive files, such as CAD drawings and videos, at Gigabit speeds, improving efficiency and cutting costly downtime.

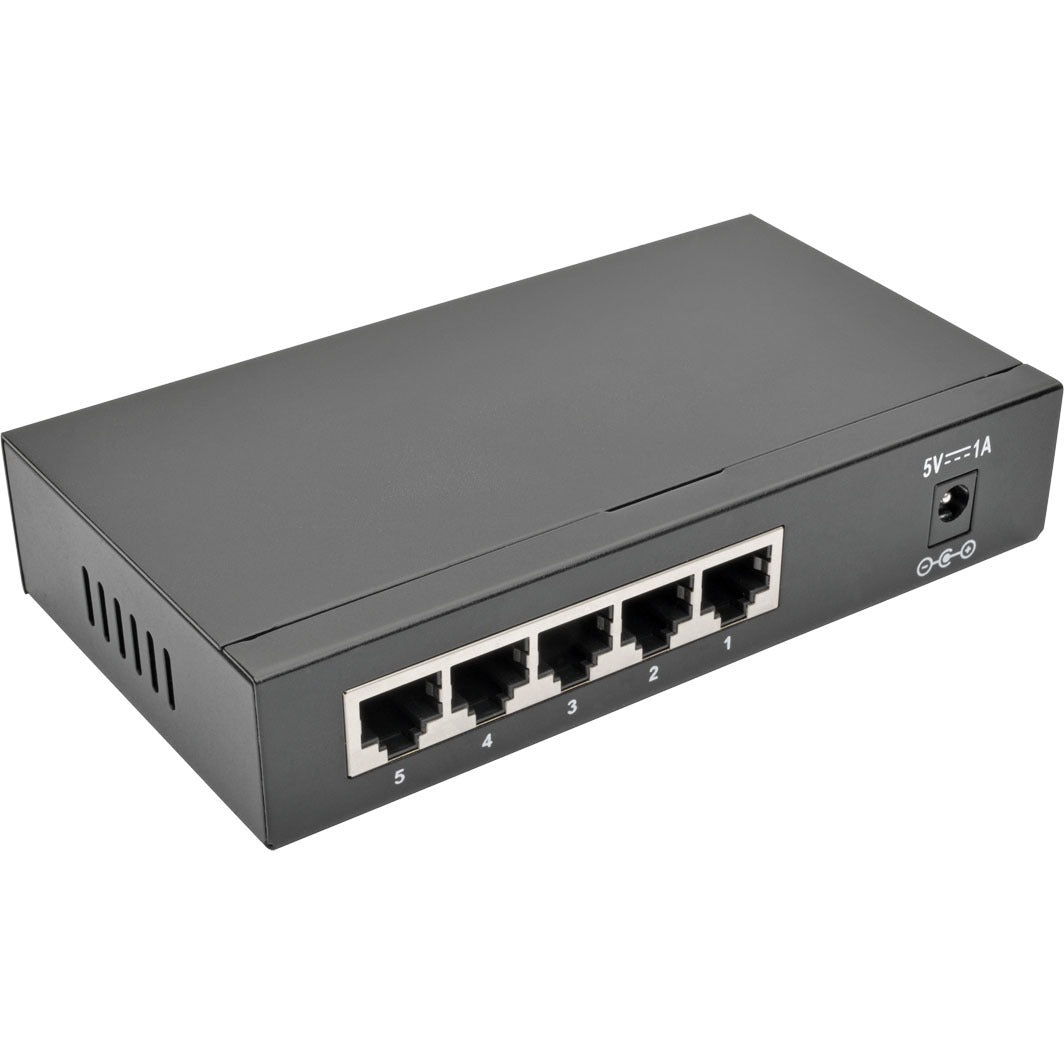

This desktop switch features five twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for convenient plug-and-play capability. No configuration is required, so you can have your Gigabit network up and running immediately. Easy-to-read LEDs indicate connection and activity status for each port. IEEE 802.3x flow control allows smooth transmission of large files.

The NG5 supports IEEE 802.3az Energy Efficient Ethernet standards by putting unused ports into a low-power state without interrupting network connections. It consumes very little input power-just a single watt. The detachable five-foot input cord with NEMA 1-15P plug connects to a protected UPS, generator or mains input AC source. The heavy-duty metal housing includes keyhole tabs for optional wall-mounting.
Media Type Supported Twisted Pair
Modular No
Network Technology 1000BASE-T

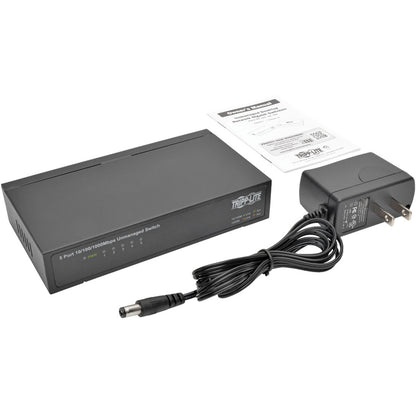

Package Contents
  • 5-Port 10/100/1000 Mbps Desktop Gigabit Ethernet Unmanaged Switch, Metal Housing
  • 5 ft. Cord
  • Owner's Manual

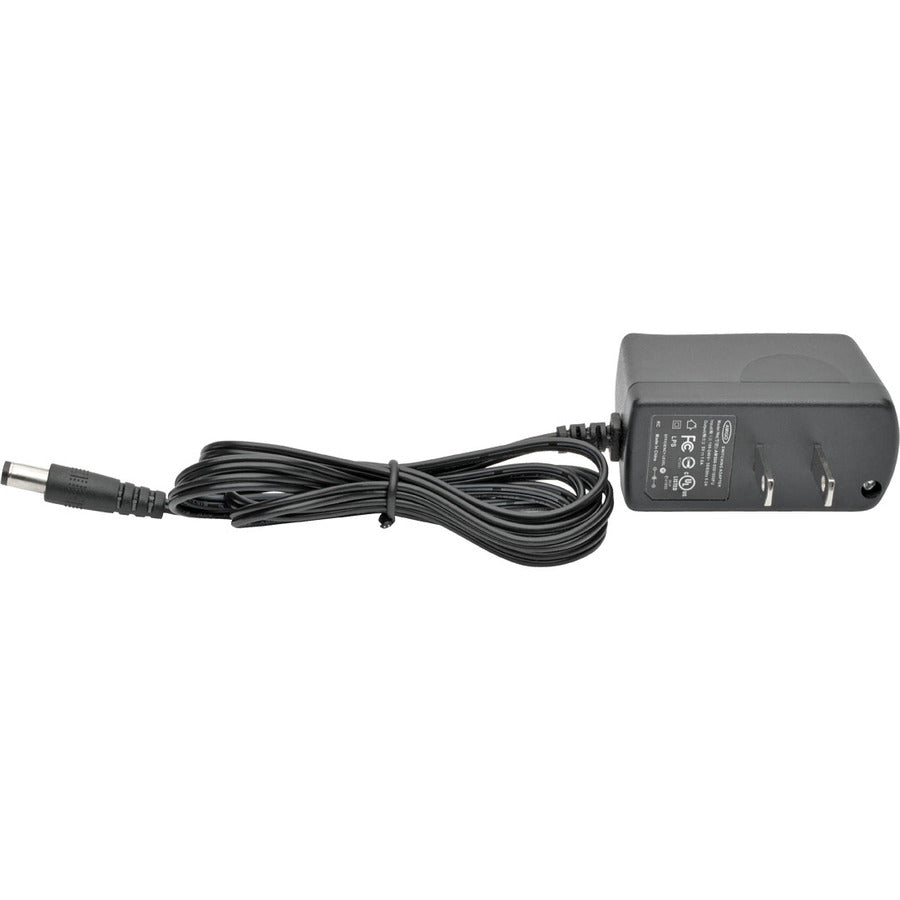

  • 5V DC Output Power Adapter
Port/Expansion Slot Details 5 x Gigabit Ethernet Network
Power Source AC Adapter
Product Model NG5
Product Name 5-Port 10/100/1000 Mbps Desktop Gigabit Ethernet Unmanaged Switch, Metal Housing
Product Type Ethernet Switch
Redundant Power Supply Suppor No
Stack Port No
Total Number of Network Ports 5
Uplink Port No
Weight (Approximate) 8.82 oz
Width 5.5"
Tripp Lite 5-Port Gigabit Ethernet Switch Desktop Metal Unmanaged Switch 10/100/1000 Mbps - 5 Ports - 1000Base-T - 5 x Network - Twisted Pair - Gigabit Ethernet - 2 Layer Supported - Desktop, Wall Mountable - 5 Year
