| Type |
Value |
| Brand Name |
Tripp Lite |
| Cable Characteristic |
Patch Cable |
| Cable Length |
16.40 ft |
| Cable Type |
QSFP+ |
| Certifications & Standards |
MSA |
| Color |
Black |
| Conductor |
Copper |
| Connector on First End |
1 x SFF-8436 Male IEEE 802.3ba QSFP+ |
| Connector on Second End |
1 x SFF-8436 Male IEEE 802.3ba QSFP+ |
| Country of Origin |
China |
| Device Supported |
Network Device |
| Environmental Certification |
RoHS |
| Environmentally Friendly |
Yes |
| Limited Warranty |
Lifetime |
| Manufacturer |
Tripp Lite |
| Manufacturer Part Number |
N282-05M-BK |
| Manufacturer Website Address |
http://www.tripplite.com |
| Marketing Information |
Tripp Lite's 5m QSFP+ (QSFP Plus) 40GBASE-CR4 / 802.3ba qualified passive copper cable provides next generation performance by combining four 10 Gb/s SFP+ channels into one affordable high-density package. Our QSFP+ cables integrate a new 40G Ethernet-optimized (40GbE) 38-position "board-as-connector" design, with zinc die-cast backshells for superior EMI resistance, minimal insertion loss, and improved cross-talk performance. Cable featuress 8-pair wire technology optimized for bandwidth-intense applications including 40-Gigabit Ethernet (40GBASE-CR4), 6G SAS, Fibre Channel and SONET. Flexible 24 AWG conductors maintain a smooth, high-frequency response (20 GHz). Each 1m (3.3-ft) length QSFP+ cable goes through a rigorous assembly and test procedure aimed at eliminating unnecessary signal loss. Our cables are fully compliant to the QSFP+ MSA and SFF-8436 architecture for guaranteed compatibility with all QSFP and QSFP+ ports. |
| Material |
Die-cast Zinc - Ferrule |
| Product Model |
N282-05M-BK |
| Product Name |

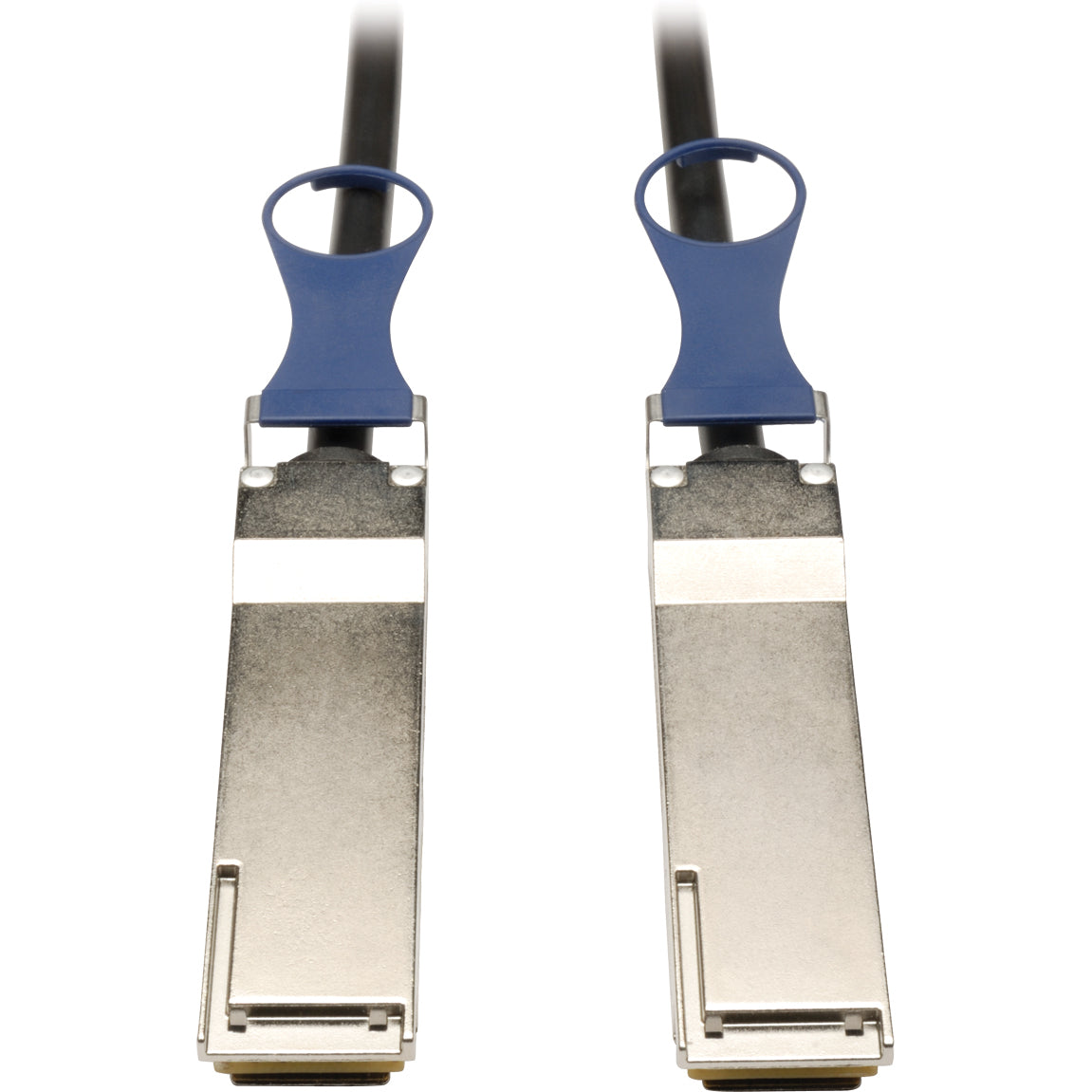

5 Meter QSFP+ to QSFP+ 40Gb Passive DAC Copper Infiniband Cable |
| Product Type |
Network Cable |
