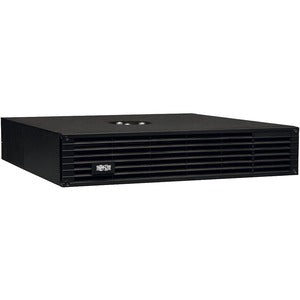

Tripp Lite 6kVA Smart Online Step-Down Isolation Transformer 208/240V-120V

Item #: 5174764   |   Model #: 0037332214652

  |   10 Questions
Regular price
$2,381.18
Sale price
$2,381.18
Regular price
Sold out
Unit price
per

1 Each

Special Buy

Type Value
Brand Name Tripp Lite
Compatibility

Tripp Lite Devices:

  • UPS
  • Generator
Country of Origin Taiwan
Depth 21.8"
Environmental Certification RoHS
Environmentally Friendly Yes
Form Factor Tower/Rack Mountable
Height 3.5"
Input Receptacle Type Hardwired
Input Voltage 230 V AC
Limited Warranty 2 Year
Manufacturer Tripp Lite
Manufacturer Part Number SU6000XFMR2UTAA
Manufacturer Website Address http://www.tripplite.com
Marketing Information

208V to 120V Isolation Transformer Converts High-Voltage Input to Low-Voltage Output

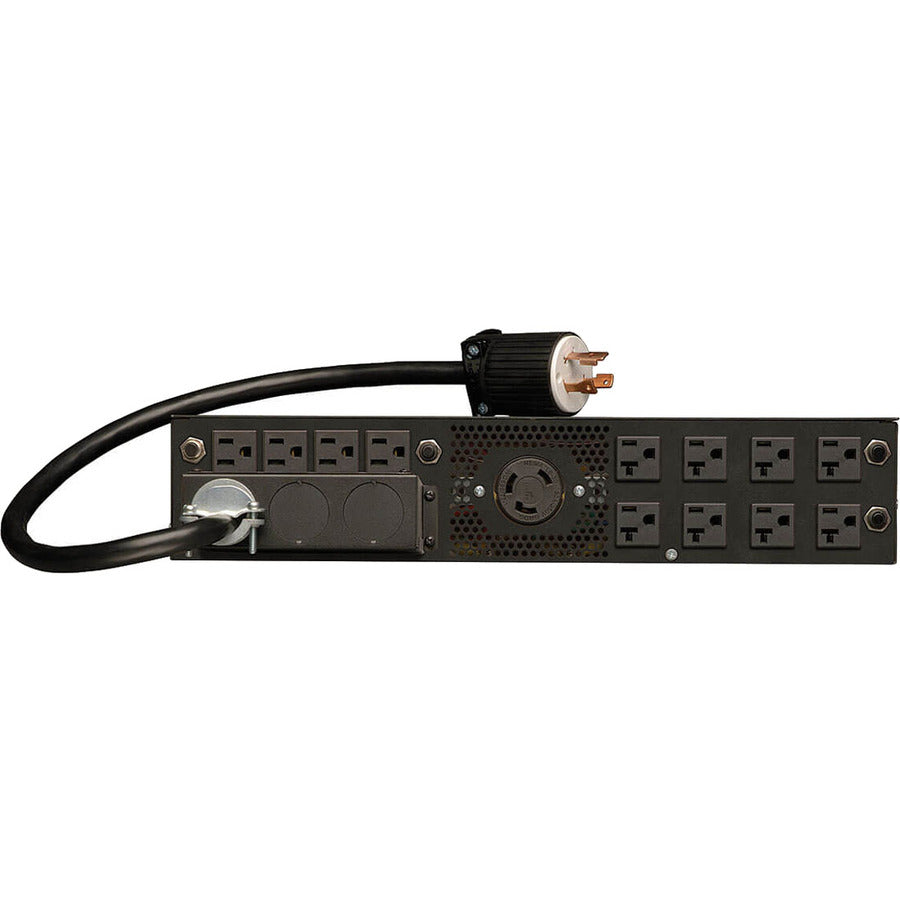

The 6kVA 6kW SU6000XFMR2UTAA SmartOnline® Step-Down Isolation Transformer converts your UPS, utility or generator's 208V or 240V high-voltage input to 120V low-voltage output. Set the input voltage using the front-panel switch. The transformer features eight NEMA 5-15/20R and four NEMA 5-15R outlets for connecting equipment with common NEMA 5-15P and NEMA 5-20P plugs. Resettable circuit breakers protect your low-voltage equipment against overload conditions. One NEMA L6-30R outlet supports high-voltage output.

Supports Plug or Hardwire Input

The transformer's four-foot power cord with 208/240V 24A input connects to a NEMA L6-30R outlet. You can also use the hardwire terminals to connect the transformer module to the power module's input and output terminal blocks.

Versatile Installation Options

Hardware is included for mounting the 208V to 120V isolation transformer transformer in 2U of space in an EIA-standard 19-inch 4-post rack with a maximum depth requirement of 27.25 inches. Use the optional 2POSTRMKITWM for 2-post rack mounting or the optional 2-9USTAND for mounting in an upright tower position (both accessories sold separately).

TAA-Compliant UPS for GSA Schedule Purchases

The SU6000XFMR2UTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

2-Year Warranty and Environmentally Responsible Design

The SU6000XFMR2UTAA comes with a 2-year warranty. It's manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility.

Maximum Line Current 30 A
Output Receptacle Detail 8 x NEMA 5-15/20R
Output Receptacle Type NEMA 5-15/20R
Output Voltage 240 V AC
Package Contents
  • SmartOnline SU6000XFMR2UTAA Isolation/Step-Down Transformer
  • Rack-mounting Hardware
  • Owner's Manual
Power Rating 6000 VA
Product Line SmartOnline
Product Model SU6000XFMR2UTAA
Product Name SmartOnline SU6000XFMR2UTAA Isolation/Step-Down Transformer
Product Type Isolation/Step-Down Transformer
Rack Height 2U
Shipping Depth 27"
Shipping Height 8.80"
Shipping Weight (Approximate) 82.60 lb
Shipping Width 22"
TAA Compliant Yes
Weight (Approximate) 72.60 lb
Width 17.5"
