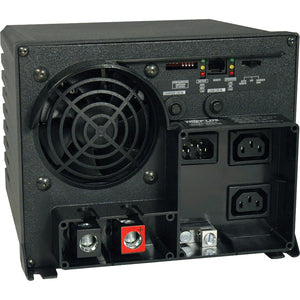

Tripp Lite 750W APS 12VDC 120V Inverter / Charger w/ Auto Transfer Switching ATS 2xC13 Outlets

Item #: 2373380   |   Model #: 0037332121622

  |   10 Questions
$766.68
$766.68
Sold out

1 Each

Special Buy
Add to list
Type Value
Additional Information
  • Frequency control for operating stability
  • RJ45 port allows connection of APS/PowerVerter Remote Switch
  • Switch allows user to select between off, auto-invert and charge-only settings
  • Advanced 20 amp, 3-stage battery charger and selector switch for gel or wet cell batteries
  • Coated internal circuit boards offer continuous operation in humid environments (0-95%, non-condensing)
  • Configuration switches to allow the user to select the low voltage for the unit to automatically transfer from AC power to battery backup
  • Low voltage transfer to battery power: User configurable to 144V, 163V, 182V & 201V Overload protection: Includes 3A input breaker dedicated to the charging system and 4A output breaker for AC output loads
  • DC Input Voltage: 12 VDC
  • AC Input Voltage: 230 VAC
  • DC Charger Output Voltage: 12 VDC
  • AC Output Voltage: 230 VAC
  • AC Plug Type: IEC-320 C14
  • DC Plug Type: Set of 2 DC bolt-down terminals
  • Outlet/Receptacle Type: IEC-320 C13
Brand Name Tripp Lite
Color Black
Compatibility

Compatible with marine, automotive, telecom, computer, emergency and a variety of other applications
Continuous Power Load 750 W
Depth 9"
Height 9"
Input Voltage 230 V AC
Input Voltage Range 10 V DC - 15 V DC
Limited Warranty 1 Year
Manufacturer Tripp Lite
Manufacturer Part Number APSX750
Manufacturer Website Address http://www.tripplite.com
Marketing Information The APSX750 750W APS X Series 12V DC 230V AC Inverter/Charger is a reliable power source for a wide variety of equipment ranging from power tools and portable lighting to laptop computers and sensitive monitoring equipment. With no fumes, fuel or excess noise, it's an excellent alternative to generator power.The DC-to-AC inverter features an automatic line-to-battery transfer switch and integrated charging system that allow it to work as a vehicle inverter, standalone AC power source or extended-run UPS. It delivers 750W of continuous power, 1125W up to one hour, or 1500W of peak power up to 10 seconds during equipment startup or cycling. An automatic overload detector, cooling fan and resettable AC circuit breakers protect the unit from damage.Designed for easy installation in RVs, over-the-road trucks, fleet vehicles and conversion vans, the APSX750 converts stored power from any 12V battery or automotive DC source to safe, stable, computer-grade AC power for unlimited runtime. When hardwired to an external 230V AC source, the unit keeps the user-supplied battery charged via a three-stage 5/20A selectable charging system while simultaneously delivering AC power to connected equipment.When used as a UPS, the APSX750 responds to blackouts and brownouts with an automatic, instantaneous transfer to battery-derived AC output. LEDs on the unit indicate load percentage and battery charge level.
Maximum Frequency 50 Hz
Output Voltage 12 V DC
Package Contents
  • PowerVerter APS X APSX750 Power Inverter/Charger
  • APSX750 Inverter/Charger
  • Instruction manual with warranty information
Peak Power Load 1500 W
Plug/Connector Type IEC 60320 C14
Product Line PowerVerter
Product Model APSX750
Product Name PowerVerter APS X APSX750 Power Inverter/Charger
Product Series APS X
Product Type Power Inverter
Receptacles 2 x IEC 60320 C13
Waveform Type Pulse-width Modulated Sine Wave
Weight (Approximate) 18.60 lb
Width 8.8"
