Tripp Lite 8-Port Rackmount USB / PS2 KVM Switch w/ On-Screen Display 1U

Item #: B042008   |   Model #: 0037332141392

  |   10 Questions
Regular price
Sale price
Regular price
Sold out
Unit price

1 Each

Special Buy

Type Value
Brand Name Tripp Lite
Country of Origin China
Daisy Chain Supported Yes
Depth 6.5"
Environmental Certification RoHS
Environmentally Friendly Yes
Form Factor Rack-mountable
Graphic Mode QXGA
Height 1.8"
Input Voltage 9 V DC
Limited Warranty 3 Year
Manufacturer Tripp Lite
Manufacturer Part Number B042-008
Manufacturer Website Address
Marketing Information

Tripp Lite's NetController 8-Port, 1U rackmount KVM Switch is an affordable, highly-flexible enterprise class KVM Switch, which allows the user to connect either USB or PS/2 keyboards and mice. In addition, P780-Series USB/PS2 combo KVM cable kits allow you to connect either USB or PS/2 computers, without the need to purchase separate cables or adapters. Control up to 8 directly connected computers, or expand the number of connected computers to up to 248 by daisychaining up to 15 additional B042-Series KVM switches. Switch between connected computers via the On-Screen Display (OSD), pushbuttons, or keyboard hotkey commands. Other features include: password protection, auto-scanning, auto-logout, firmware upgrade and video support up to 2048 x 1536 (QXGA). Mounts easily in a standard 19" rack/cabinet and includes all necessary mounting hardware. Compatible with all major operating systems. Constructed of heavy-duty steel housing. 3 year limited warranty.

Maximum Video Resolution 2048 x 1536
Number of Computers Supported 8
Number of PS/2 Ports 1

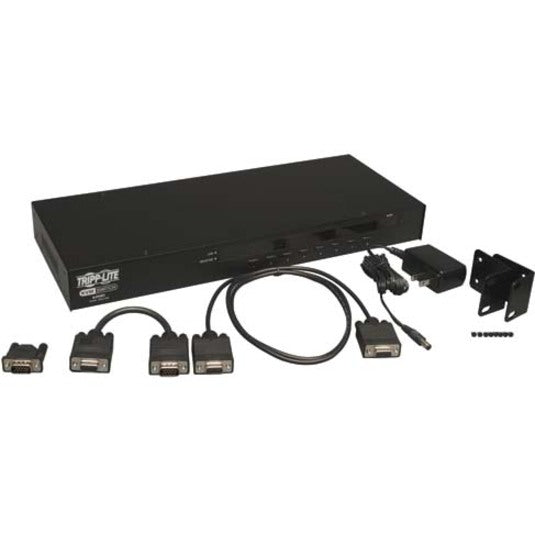

Package Contents
  • KVM Switch
  • External Power Supply
  • Rackmount Hardware
  • 4 ft. HD15 to DB9 Firmware Upgrade Cable
  • 8-in Daisy-Chain Cable - HD15M/HD15F
  • Daisy Chain Terminator - HD15M
  • CD with owner's manual and quick start guide
  • Quick start guide
Product Model B042-008
Product Name KVM Switch
Product Type KVM Switchbox
PS/2 Port Yes
Rack Height 1U
Width 16.1"
