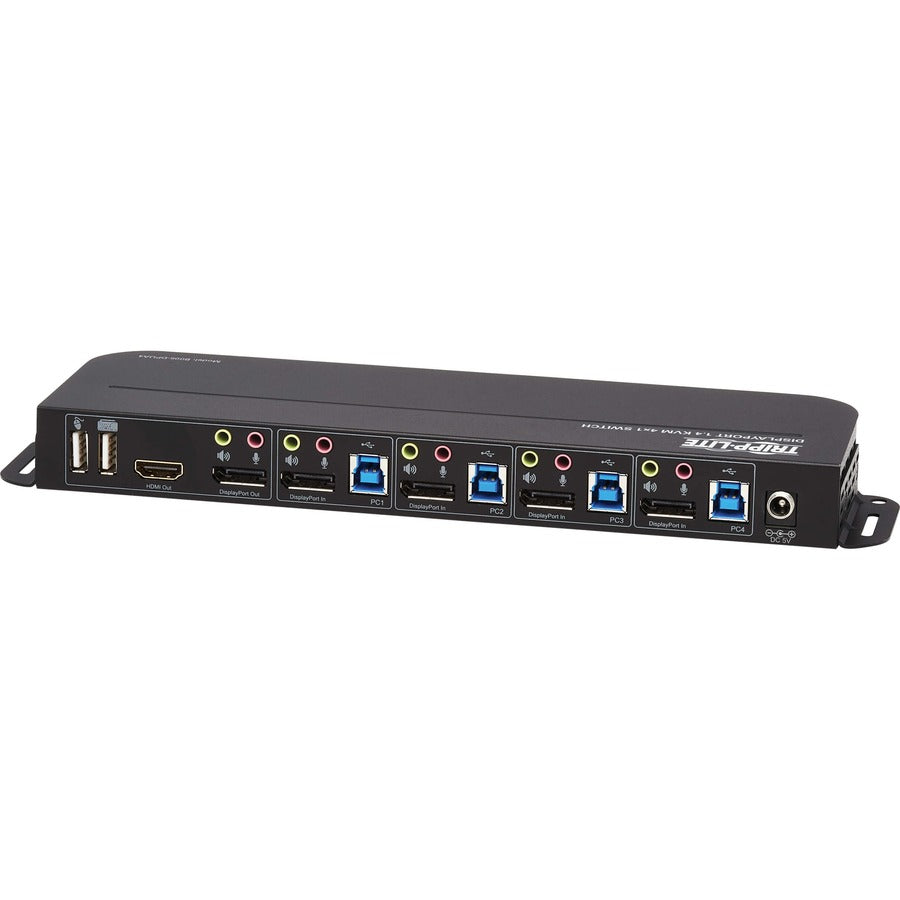

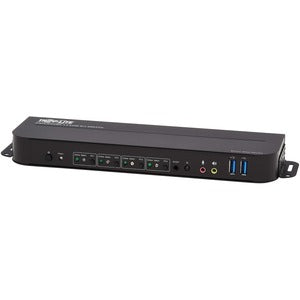

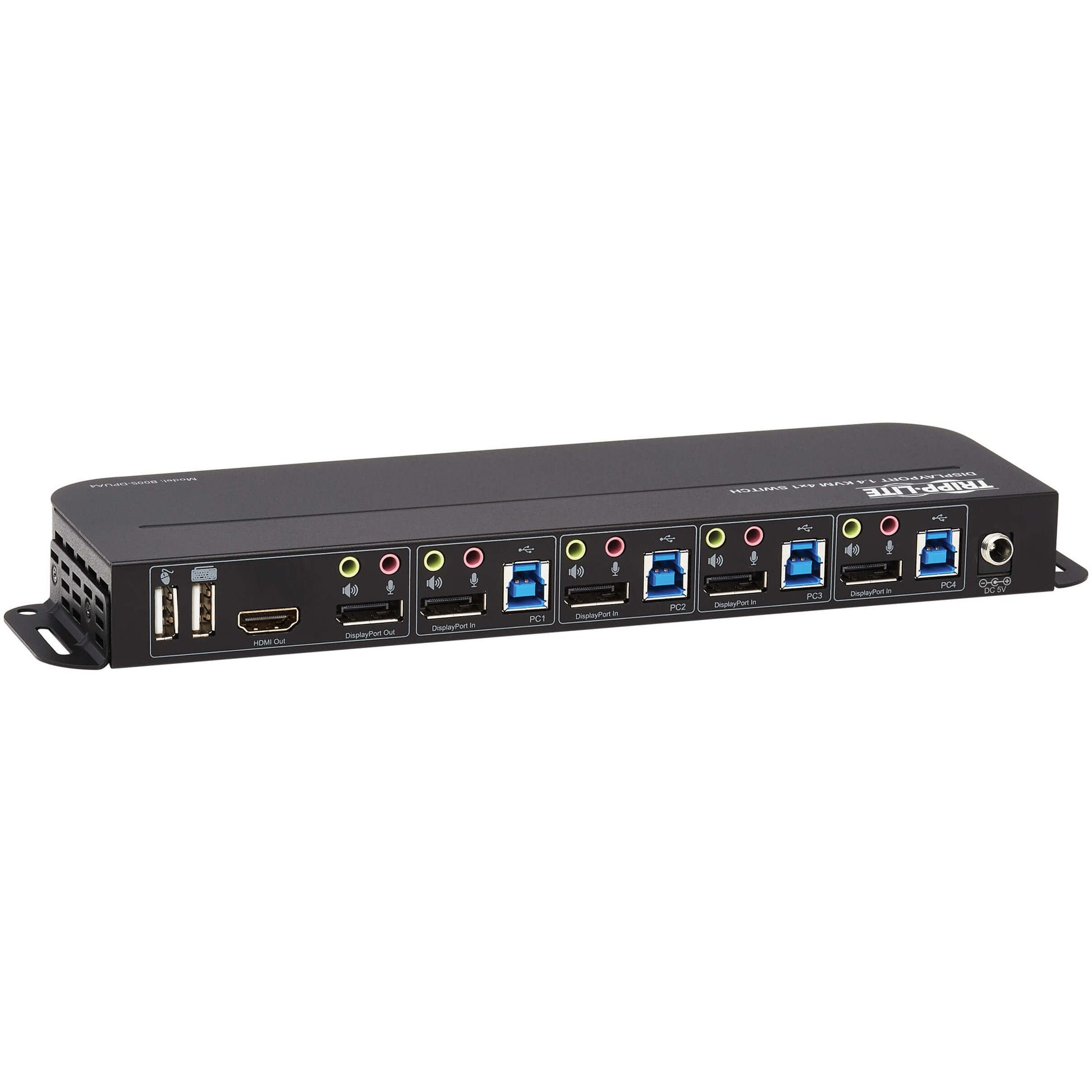

ContactTripp Lite DisplayPort USB KVM Switch 4-Port 4K 60Hz HDR DP 1.4 USB Sharing
Item #: B005DPUA4 | Model #: 0037332255020
| 10 Questions
| Type | Value |
|---|---|
| Brand Name | Tripp Lite |
| Country of Origin | Vietnam |

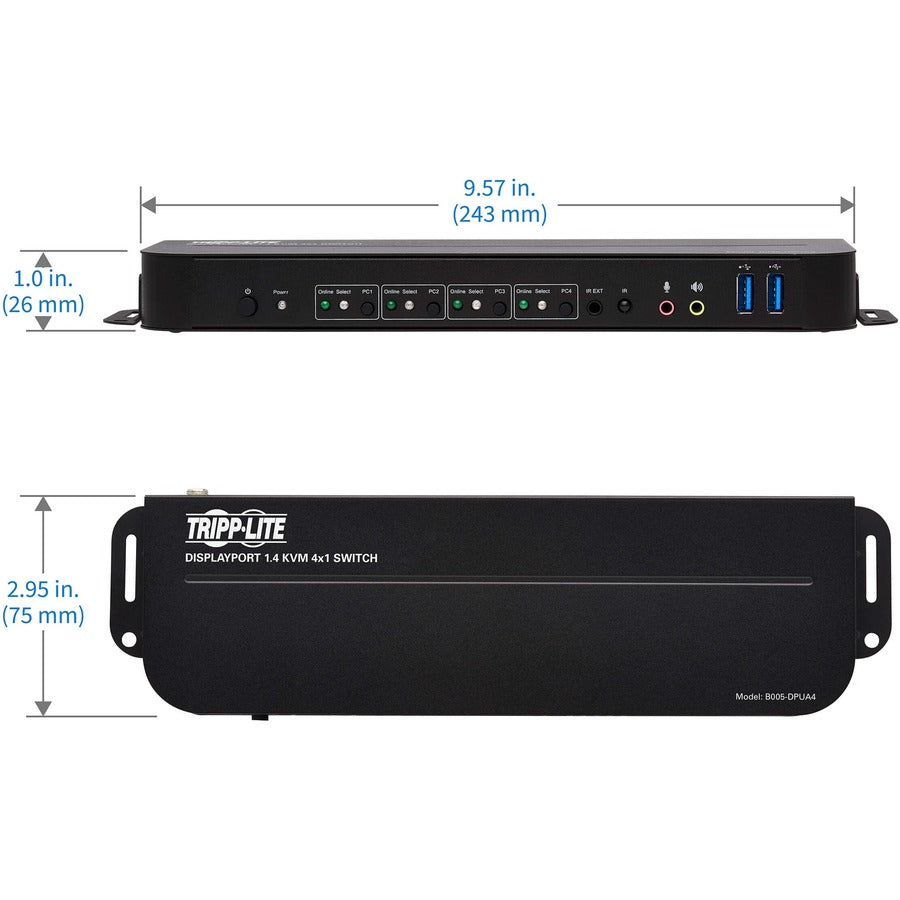

| Depth | 3" |
| DisplayPort | Yes |
| Environmental Certification | REACH |
| Environmentally Friendly | Yes |
| Frequency | 60 Hz |
| HDMI | Yes |
| Height | 1" |

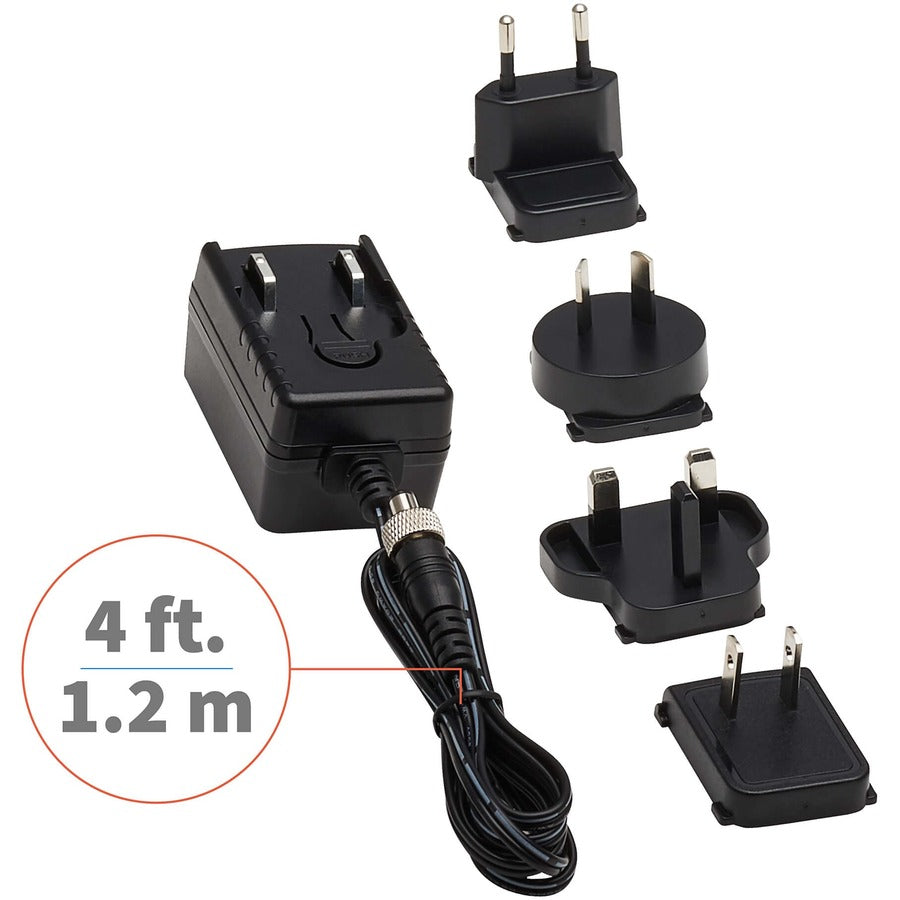

| Input Voltage | 230 V AC |
| Input Voltage Range | 100V AC to 240V AC |
| Limited Warranty | 3 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | B005-DPUA4 |
| Manufacturer Website Address | http://www.tripplite.com |

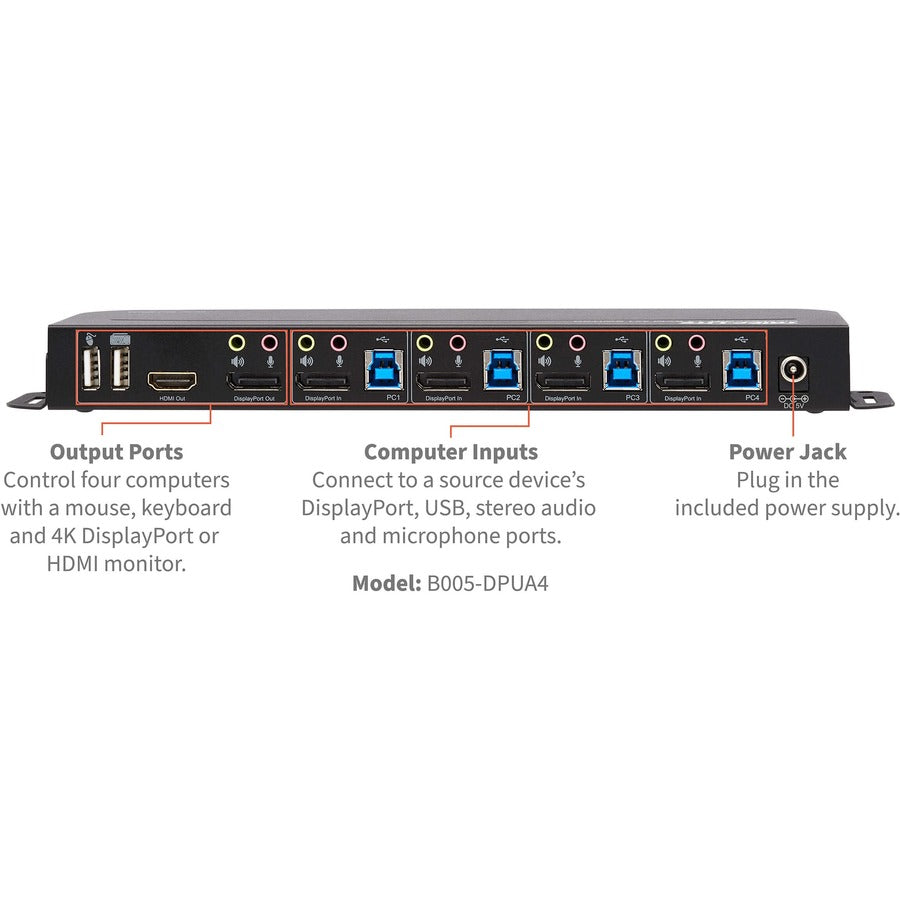

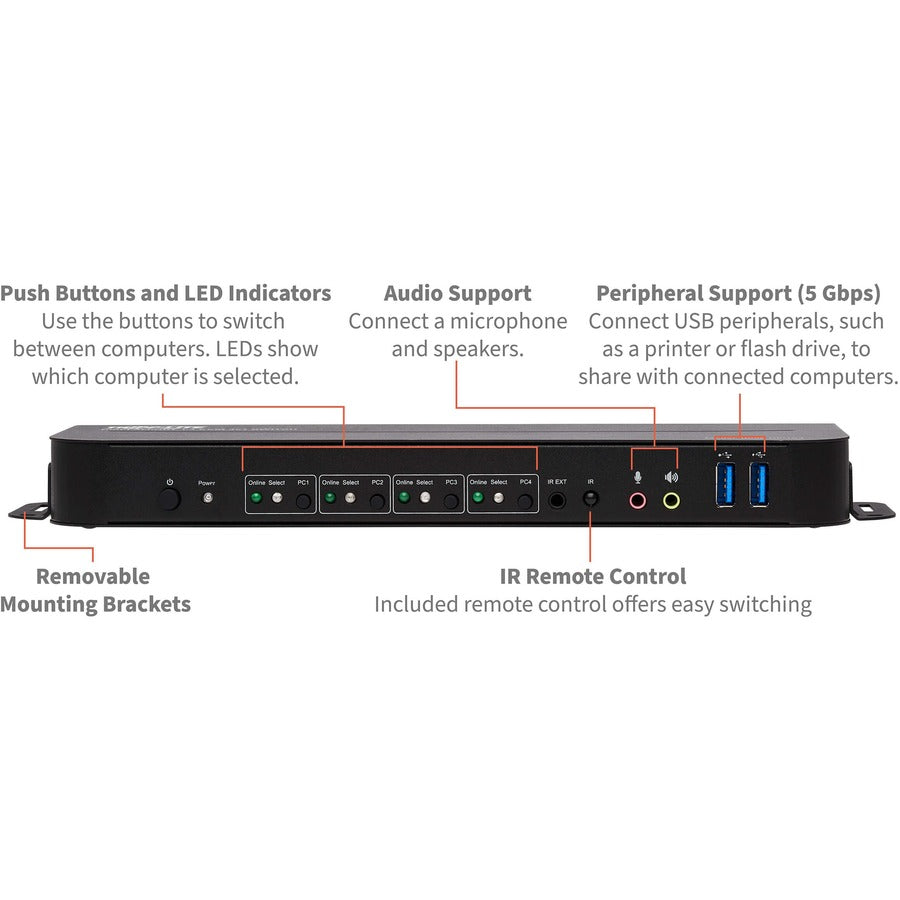

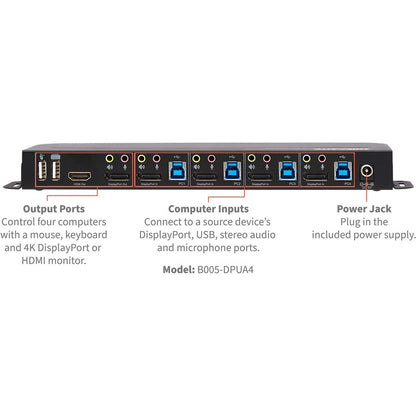

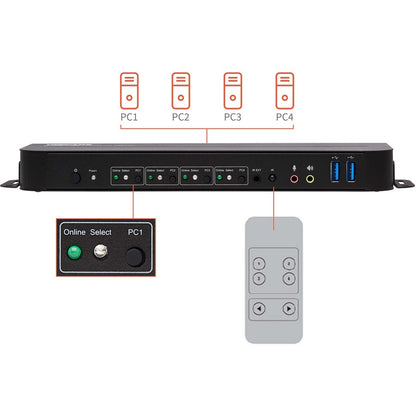

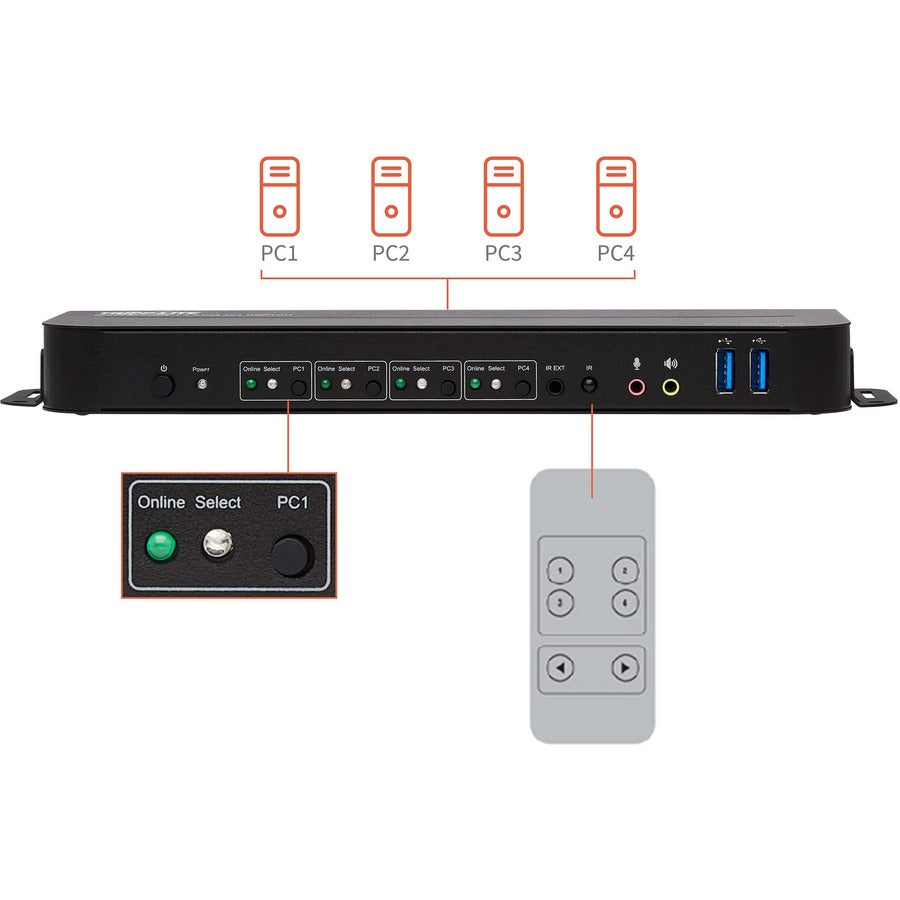

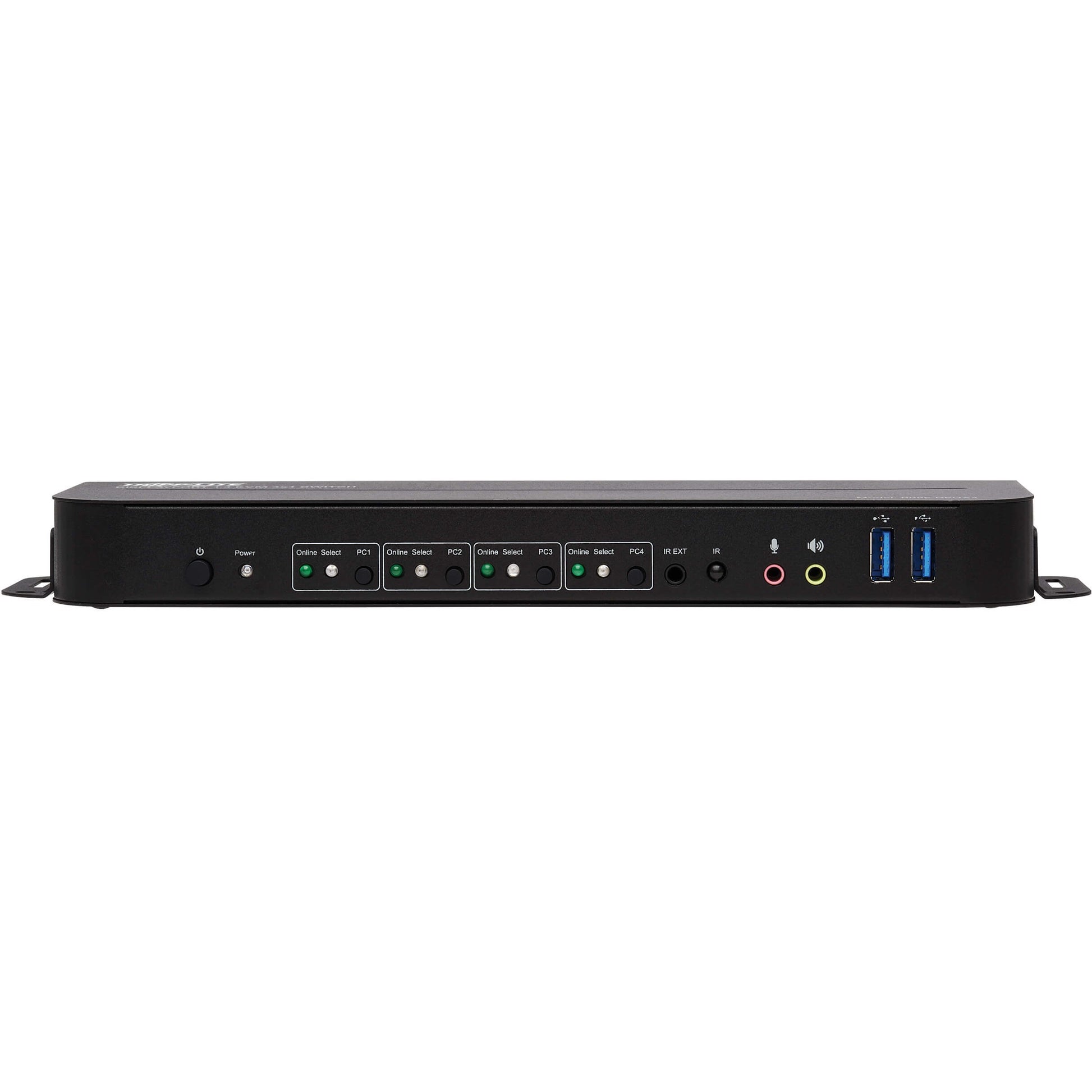

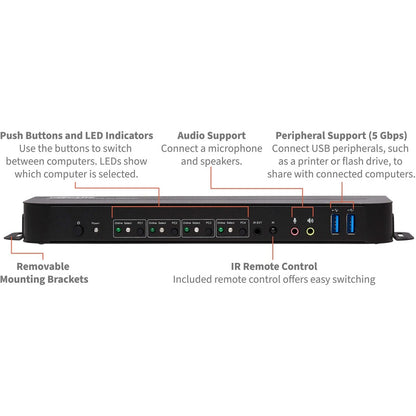

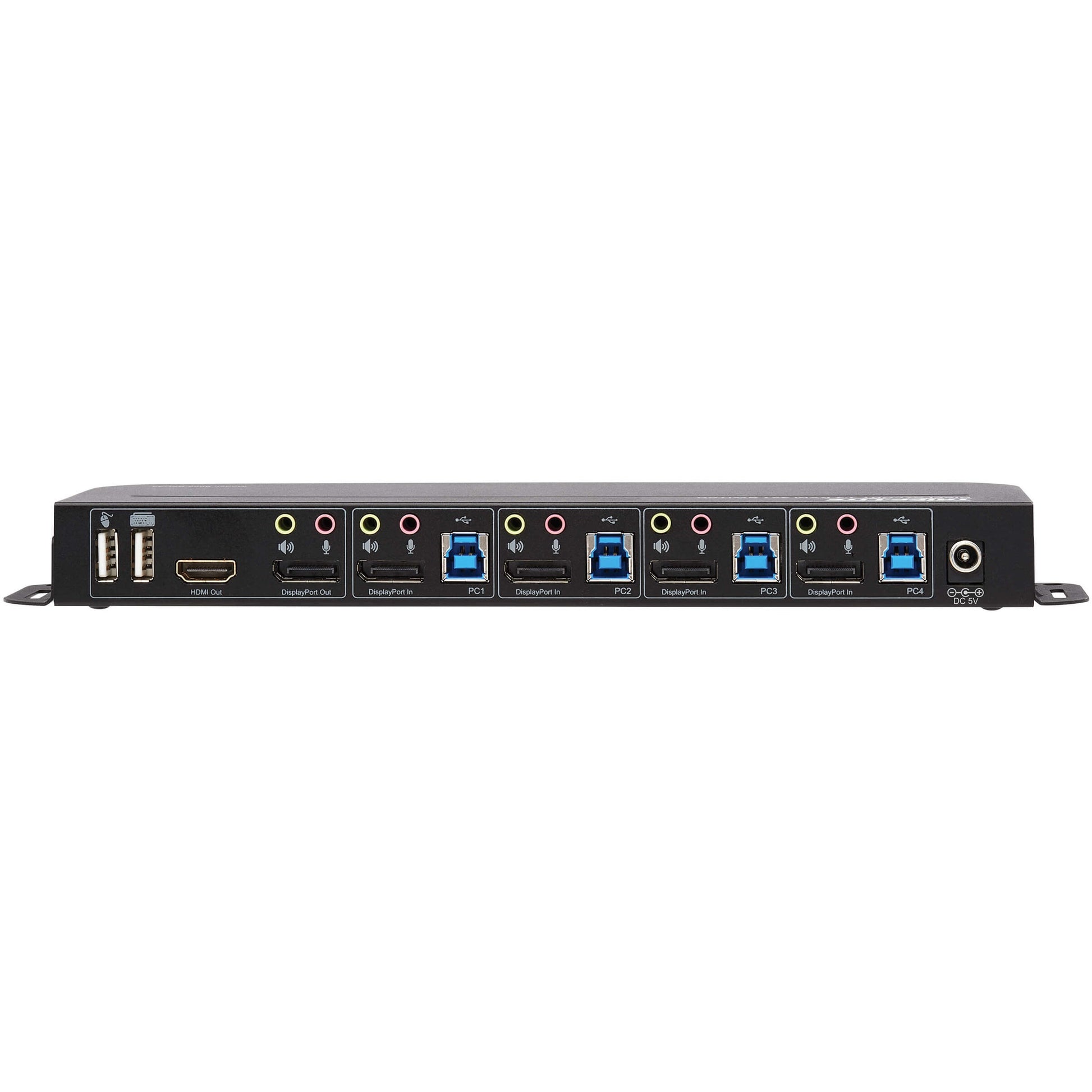

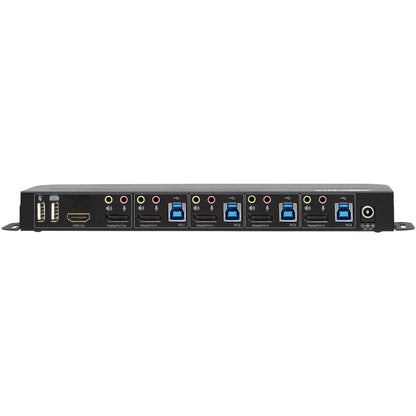

| Marketing Information | Features Connects 4 DisplayPort-Enabled Devices to a Single Monitor, Keyboard and Mouse This KVM switch lets you access, control, boot and reboot four computers with DisplayPort connectors and switch between them. In addition to desktop and notebook computers, the switch also connects up to four media centers, video game systems, Blu-ray and DVD players, cable and satellite boxes, DVRs and other DisplayPort-enabled devices. All computers share one monitor, USB keyboard and USB mouse, which saves space on your desk or workspace. Supports DisplayPort++ for Connecting an HDMI or DisplayPort Monitor The B005-DPUA4 supports DP++, allowing incoming DisplayPort signals to be converted to HDMI. It features one DisplayPort output and one HDMI output, though only one monitor may be used at a time. Switching Between Computers Is Fast and Easy Use the front-panel push buttons, hotkey commands, mouse movement or the included IR remote control for quick and easy toggling between computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. LEDs indicate which computer is currently selected. USB Hub Lets You Share Peripherals between Computers Two USB 3.0 hub ports allow you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between both connected computers. The ports support USB 3.0 data transfer speeds up to 5 Gbps and are backward compatible with earlier USB generations. Transmits Crystal-Clear True 4K Video with HDR and 4:4:4 Color The B005-DPUA4 supports Ultra HD resolutions up to 4096 x 2160 (4K x 2K) at 60 Hz, as well as HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This KVM switch also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Designed for Convenient Mounting with Included Brackets The heavy-duty metal housing comes with mounting brackets for permanent installation on a wall or beneath a desk with user-supplied hardware. The included DC power supply connects to any standard AC power source. Typical Applications
System Requirements
|
| Maximum Video Resolution | 4096 x 2160 |
| Number of Computers Supported | 4 |
| Number of DisplayPorts | 5 |
| Number of HDMI Ports | 1 |
| Number of Local Users Support | 1 |
| Number of USB Ports | 8 |

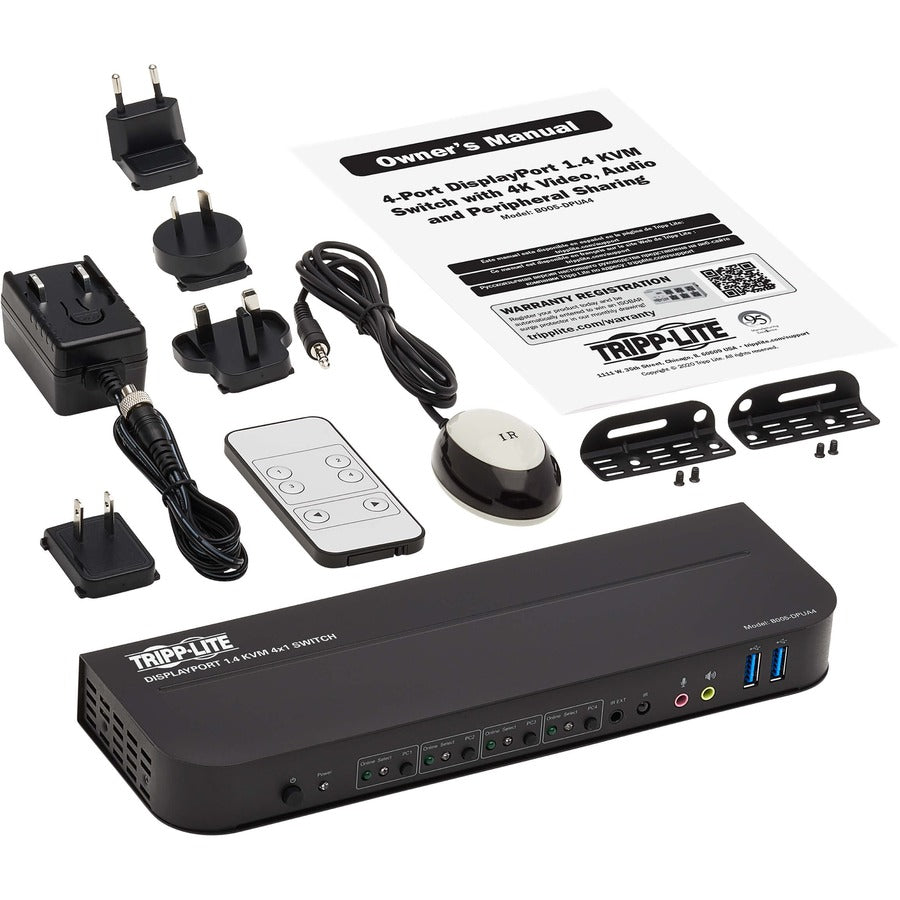

| Package Contents |
|
| Product Name | B005-DPUA4 4-Port DisplayPort/USB KVM Switch |
| Product Type | KVM Switchbox |
| USB | Yes |
| Weight (Approximate) | 1.11 lb |
| Width | 9.6" |
