Tripp Lite Isobar Surge Protector Rackmount 20A 12 Outlet 15' Cord 1URM

Item #: 303927   |   Model #: 0037332100184

  |   10 Questions
$315.84
$315.84
Sold out

1 Each

Special Buy
Add to list
Type Value
Additional Information

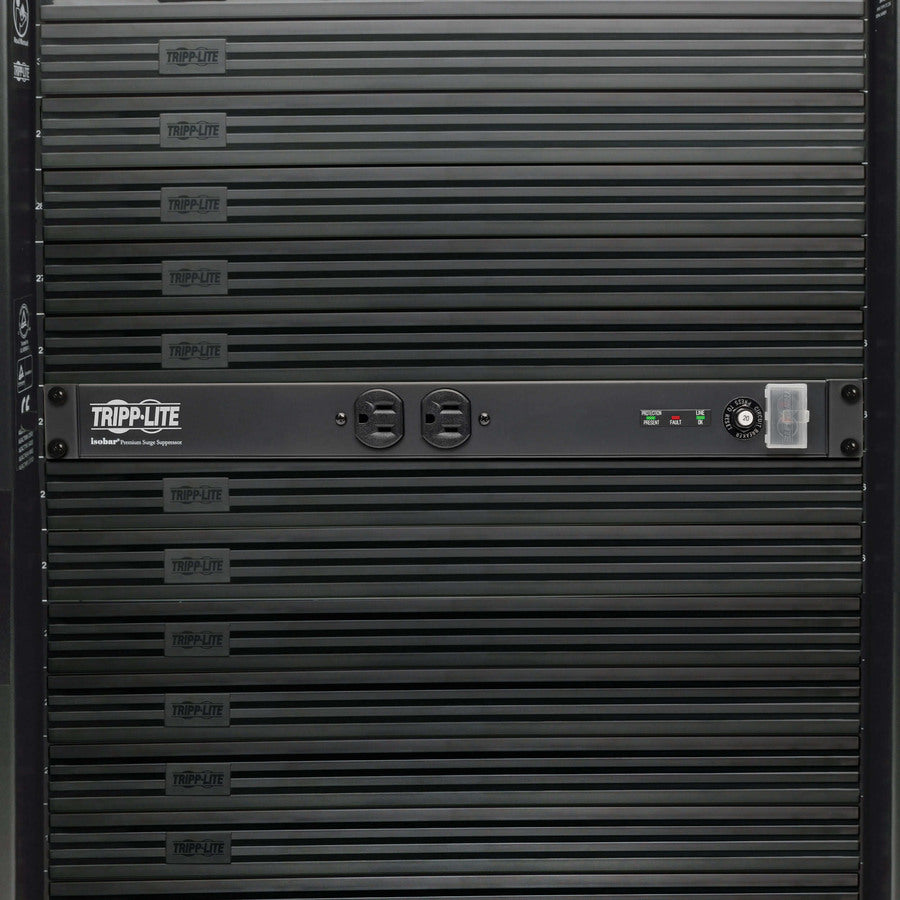

  • Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount, undercounter and other creative mounting options
  • Uses one rack space (1U) in standard 19 inch rack ("zero U" mounting possible in many racks)
  • 1280 joules / 60,000 amp network-grade AC surge suppression with EMI/RFI filtering

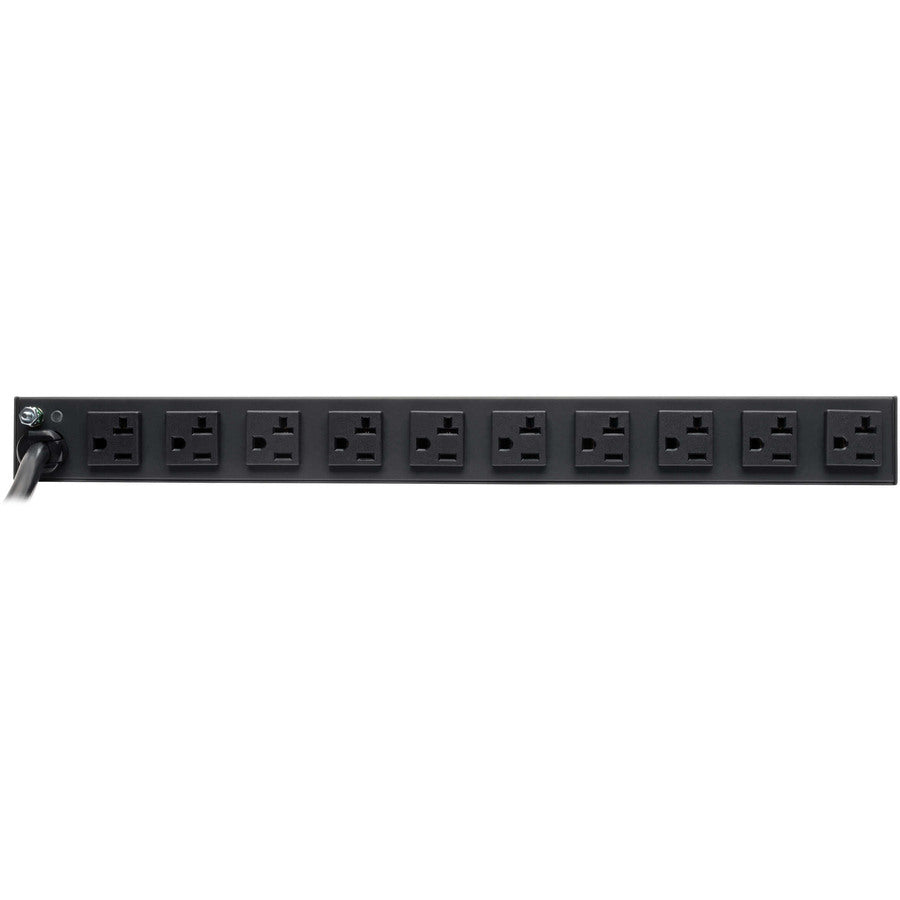

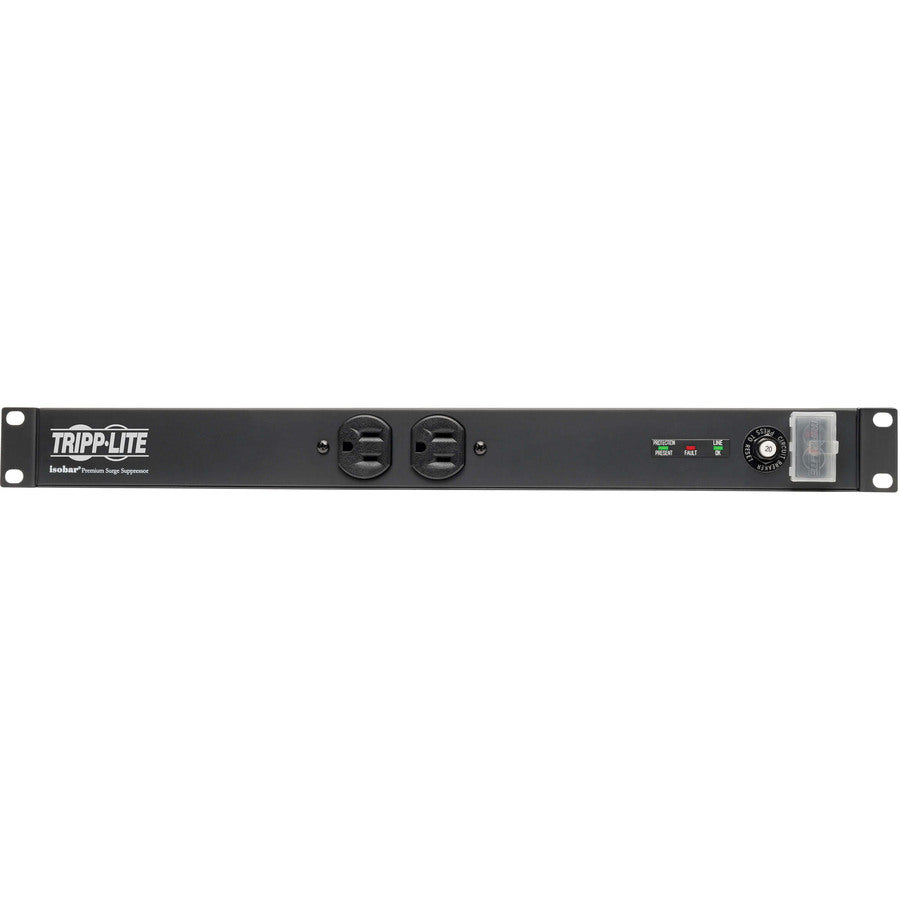

  • 12 output receptacles outlets (2 front mounted NEMA 5-15R / 10 rear mounted NEMA 5-20R)
  • 15 foot AC cord with NEMA L5-20P straight-in plug connection
  • Diagnostic LEDs confirm proper wiring and suppressor operation
  • Front panel switch controls power to all outlets
  • 20 amp electrical capacity with circuit breaker 120VAC, 50/60Hz electrical compatibility
  • $25,000 Ultimate Lifetime Insurance (USA & Canada Only)
  • Lifetime product warranty
Brand Name Tripp Lite
Certifications & Standards UL1449 (UR status), UL1283, cUL, Exceeds IEEE 587 category A&B specifications
Compatibility TYPICAL APPLICATIONS: Ideal for the protection of sensitive electronic equipment in 19 inch rackmount, wallmount and under-counter applications, such as internetworking equipment, PC systems, telecommunications, audio / video, security, sound reinforcement and more.
Country of Origin China
Depth 4"
Height 1.8"
Input Voltage 120 V AC
Limited Warranty Lifetime
Manufacturer Tripp Lite
Manufacturer Part Number IBAR12-20T
Manufacturer Website Address http://www.tripplite.com
Marketing Information

Tripp Lite's IBAR12-20T offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet with L5-20P twist-lock input plug and 20-amp capacity. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features network grade AC surge suppression with EMI/RFI noise filtering. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front mounted 15-amp/10 rear mounted 20- amp), 15 ft. power cord and power switch. Diagnostic LEDs indicate AC present, line fault and protection status.
Maximum Line Current 20 A
Output Voltage 120 V AC
Package Contents
  • IBAR12-20T
  • IBAR12-20T Surge Suppressor
  • Warranty information
  • Instruction manual
Plug/Connector Type Yes
Power Cord/Cable Length 15 ft
Product Name IBAR12-20T
Product Type Surge Suppressor/Protector
Protection Type Surge
Receptacles 12 x NEMA 5-20R
Shipping Depth 9.40"
Shipping Height 2.20"
Shipping Weight (Approximate) 6.60 lb
Shipping Width 20.20"
Status Indicators
  • Line fault
  • Line OK
  • Protection present
    		•
    Surge Energy Rating 3840 J
    Width 17.5"
