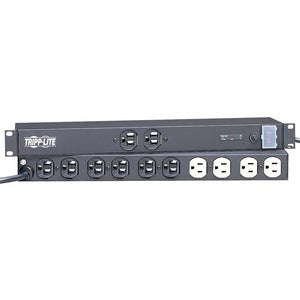

Tripp Lite Isobar Surge Protector Rackmount Metal 12 Outlet 15' Cord 1U RM

Item #: ISOBAR12ULTRA   |   Model #: 0037332011039

  |   10 Questions
Regular price
$233.52
Sale price
$233.52
Regular price
Sold out
Unit price
per

1 Each

Special Buy

Type Value
Additional Information
  • Transparent locking switch cover prevents accidental shutoff
  • 2 front and 10 rear receptacles
Brand Name Tripp Lite
Certifications & Standards
  • UL1449 (let through rating 330V)
  • UL1283
  • cUL
  • IEEE 587 category A and B
Circuit Breaker Yes
Color Black
Compatibility
  • Internetworking Equipment
  • Computers
  • Telecommunications Systems
  • Audio/Video Systems
  • Security & Sound Reinforcement
Country of Origin China
Depth 4"
Environmental Certification RoHS
Environmentally Friendly Yes
Height 1.8"
Input Voltage 120 V AC
Limited Warranty Lifetime
Manufacturer Tripp Lite
Manufacturer Part Number ISOBAR12ULTRA
Manufacturer Website Address http://www.tripplite.com
Marketing Information

Tripp Lite's ISOBAR12ULTRA offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features the highest level of AC surge and EMI/RFI noise suppression of all Tripp Lite rackmount surge suppressors. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front/10 rear), 15 ft AC power cord and guarded power switch to reduce the risk of accidental shutoff. Diagnostic LEDs indicate AC present, line fault and protection status. Lifetime warranty with $25,000 Ultimate Lifetime Insurance (USA & Canada Only) coverage .PLUG/OUTLETS: Input: NEMA 5-15P/Output: 12 NEMA5-15R (2 front & 10 rear)ELECTRICAL: 120V AC, 50/60Hz, 15A (Requires NEMA 5-15R wall receptacle)FORMAT: Supports 19 in. rackmount (uses 1 rack space/1U), wallmount, under-counter and more

Maximum Line Current 15 A
Maximum Surge Current 96 kA
Output Voltage 120 V AC
Package Contents
  • Isobar 12-Outlets 120V Surge Suppressor
  • Warranty Information
  • Instruction Manual
Plug/Connector Type NEMA 5-15P
Power Cord/Cable Length 15 ft
Power Handling 1800 VA
Product Name Isobar 12-Outlets 120V Surge Suppressor
Product Type Surge Suppressor/Protector
Protection Type Surge
Receptacles 12 x NEMA 5-15R
Shipping Depth 20.40"
Shipping Height 9.30"
Shipping Weight (Approximate) 6 lb
Shipping Width 2.60"
Status Indicators
  • Line OK
  • Line fault
  • Protection present
  • Surge Energy Rating 3840 J
    Weight (Approximate) 4.60 lb
    Width 17.5"
