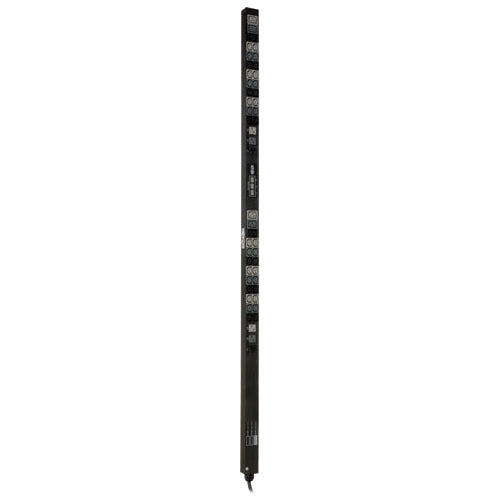

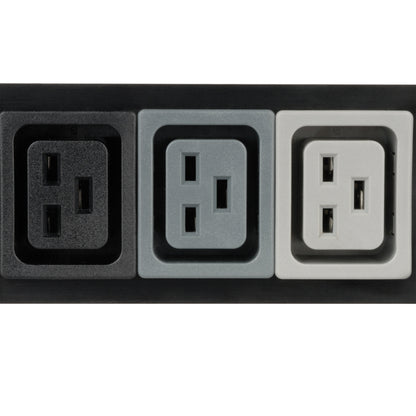

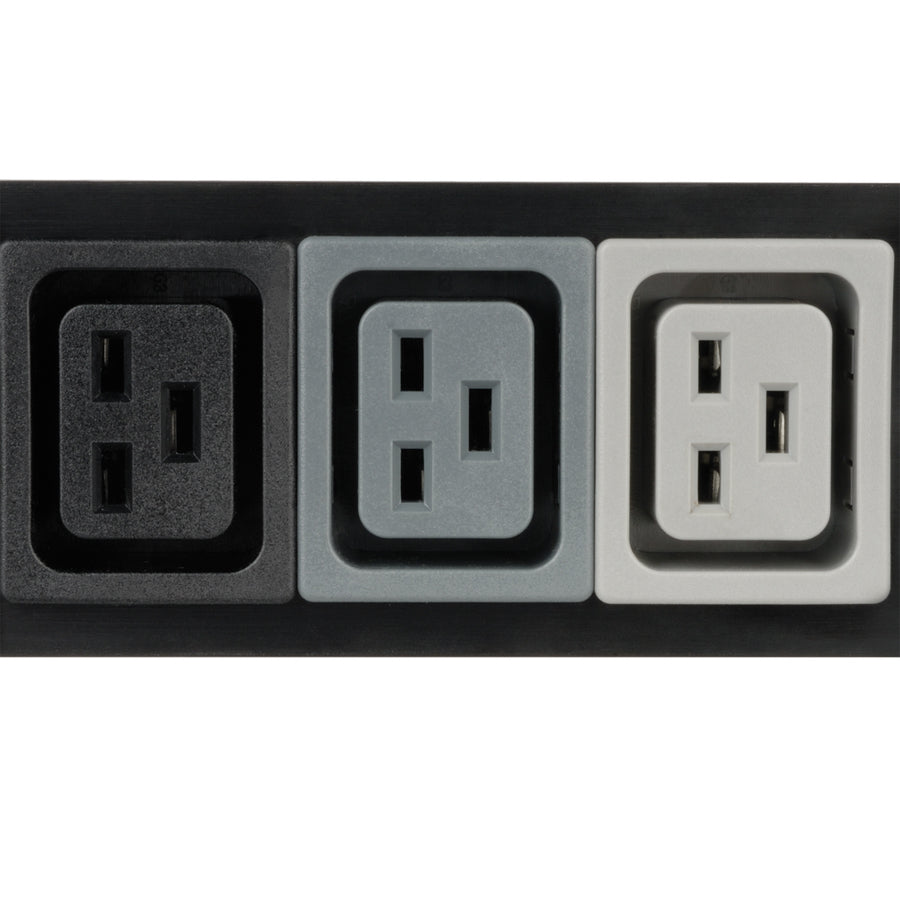

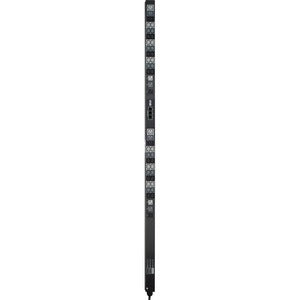

ContactTripp Lite PDU 3-Phase Metered 208/120V 5.7 Kw 36 C13; 6 C19; 6 5-15/20R 0U
Item #: 3344803 | Model #: 0037332163929
| 10 Questions
| Type | Value |
|---|---|
| Brand Name | Tripp Lite |
| Country of Origin | Taiwan |
| Depth | 2.2" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 70" |
| Input Voltage | 230 V AC |
| Limited Warranty | 2 Year |
| Manufacturer | Tripp Lite |
| Manufacturer Part Number | PDU3MV6L2120 |
| Manufacturer Website Address | http://www.tripplite.com |

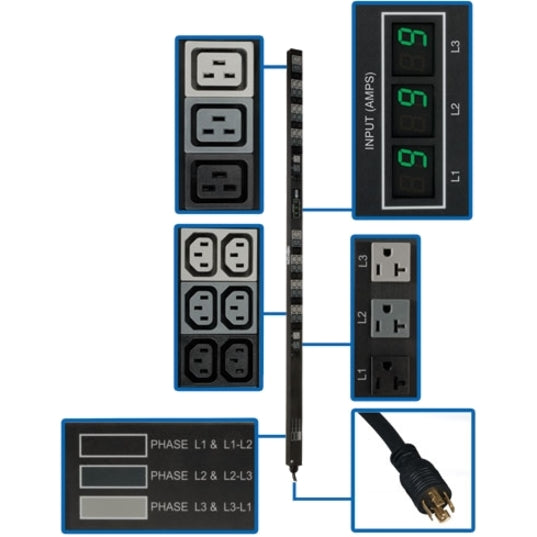

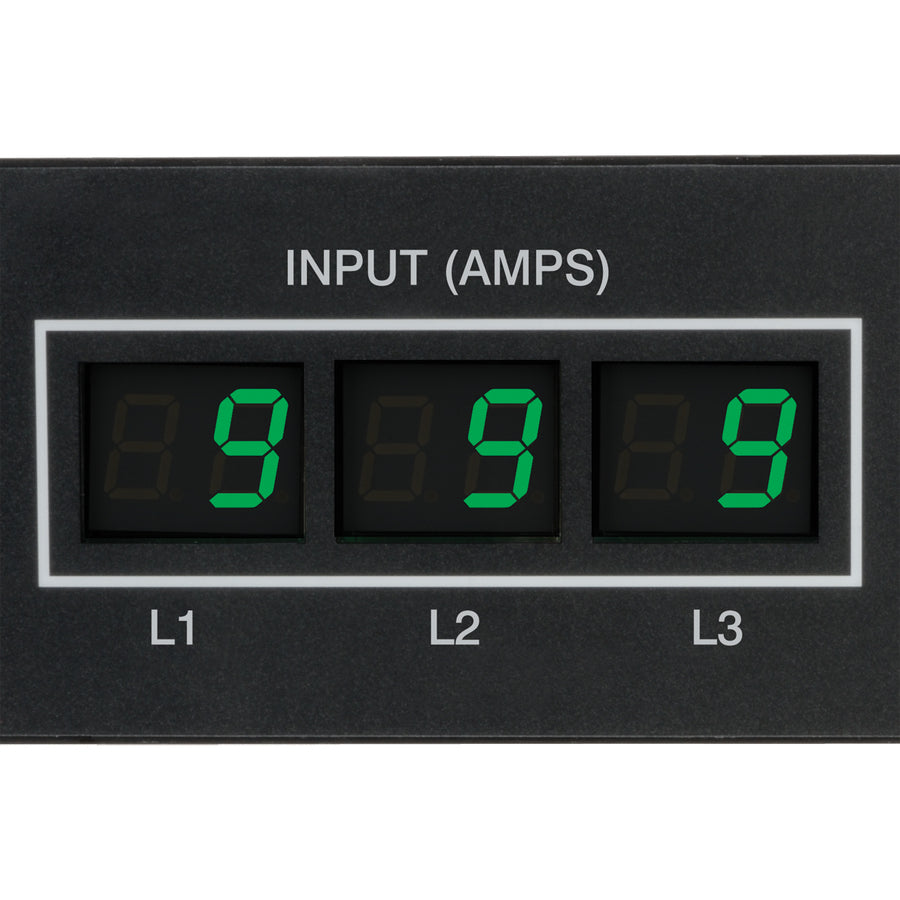

| Marketing Information | Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. |

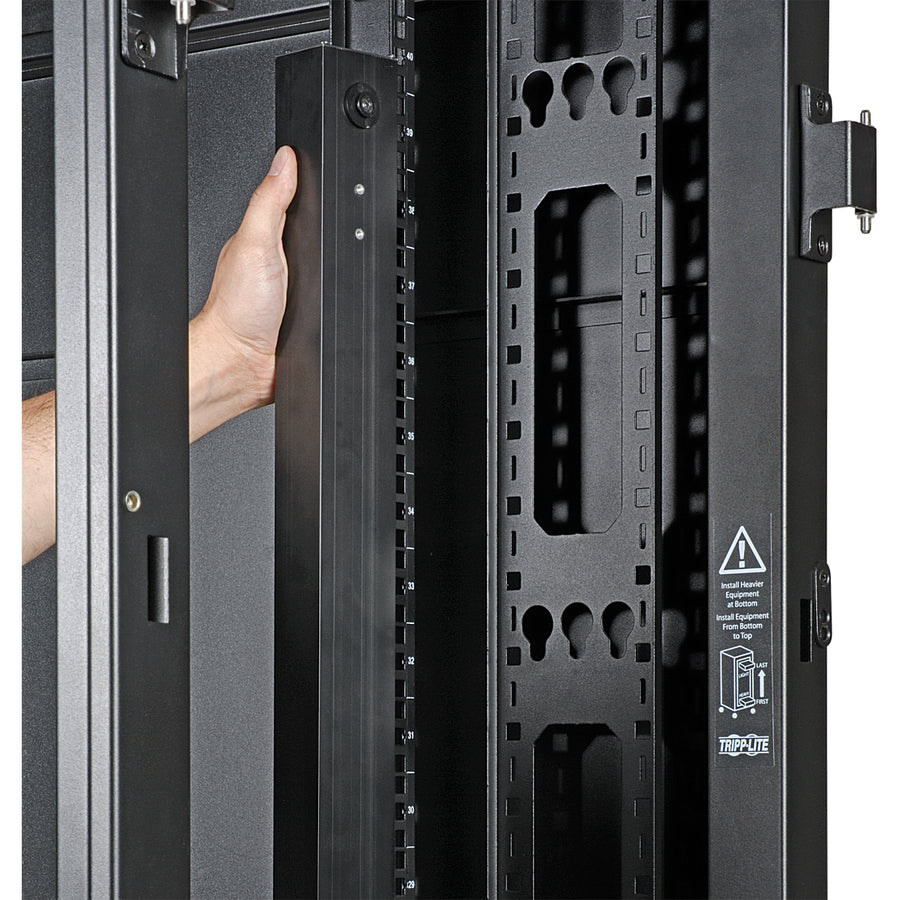

| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| Output Voltage | 208 V AC |

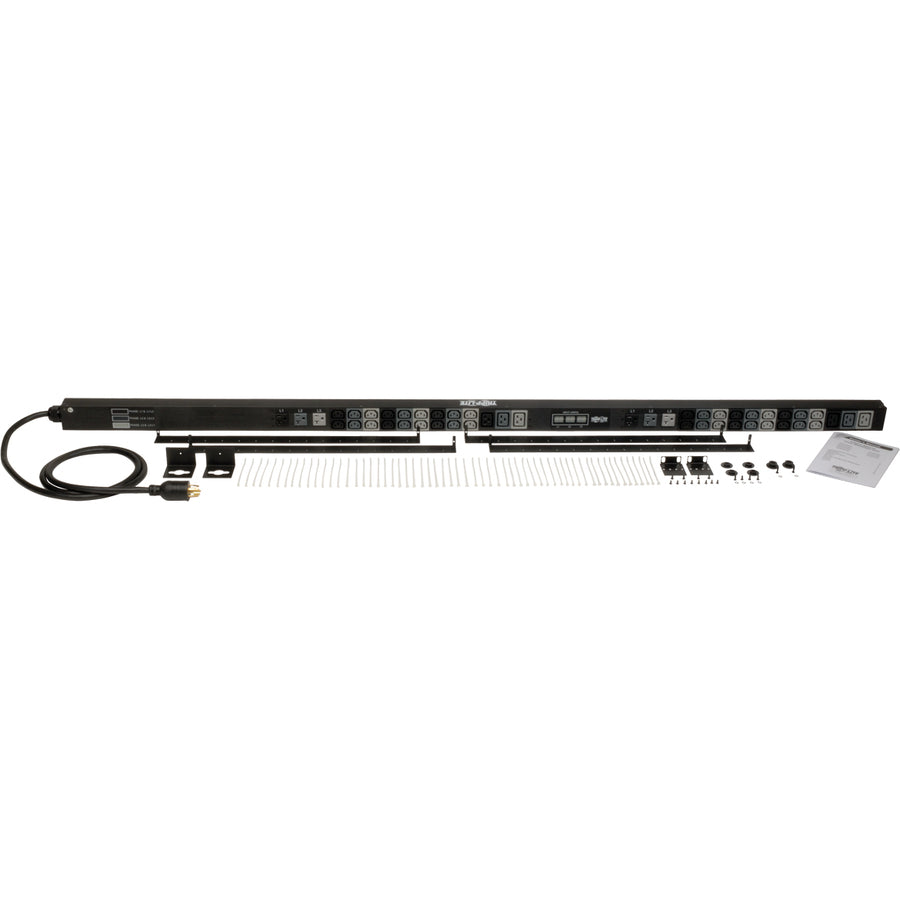

| Package Contents |
|

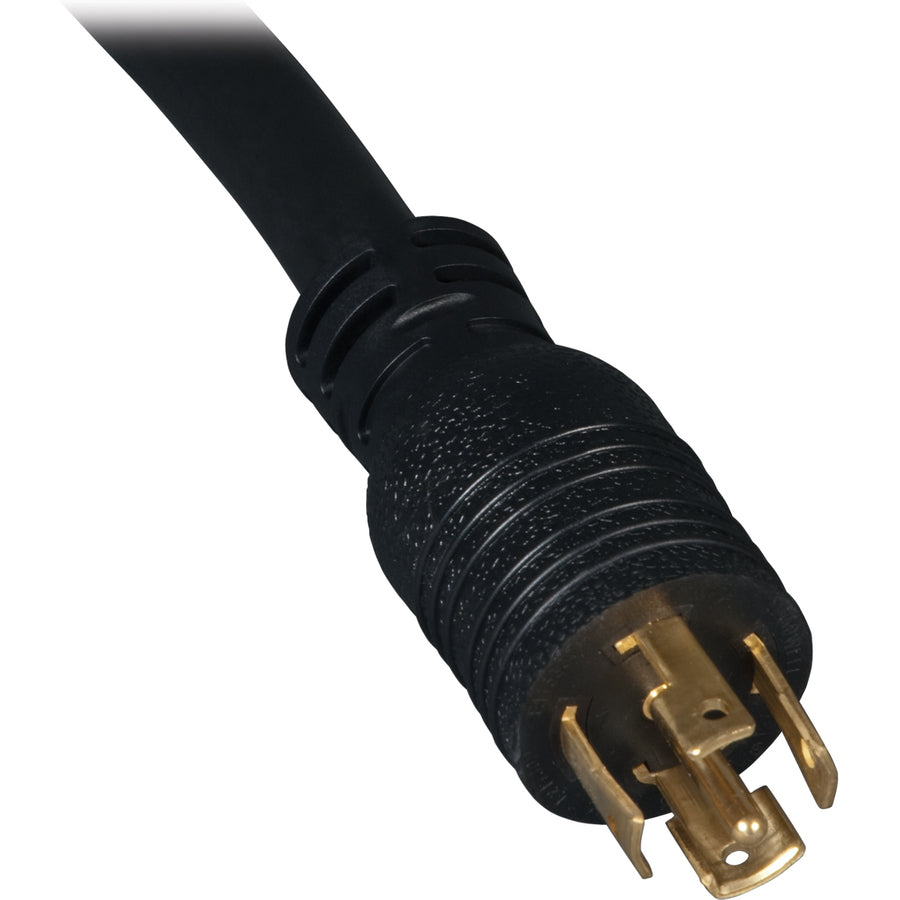

| Plug/Connector Type | NEMA L21-20P |
| Power Rating (Watt) | 5700 W |
| Product Model | PDU3MV6L2120 |
| Product Name | 3-Phase Metered PDU |
| Product Series | Metered |
| Product Type | PDU |

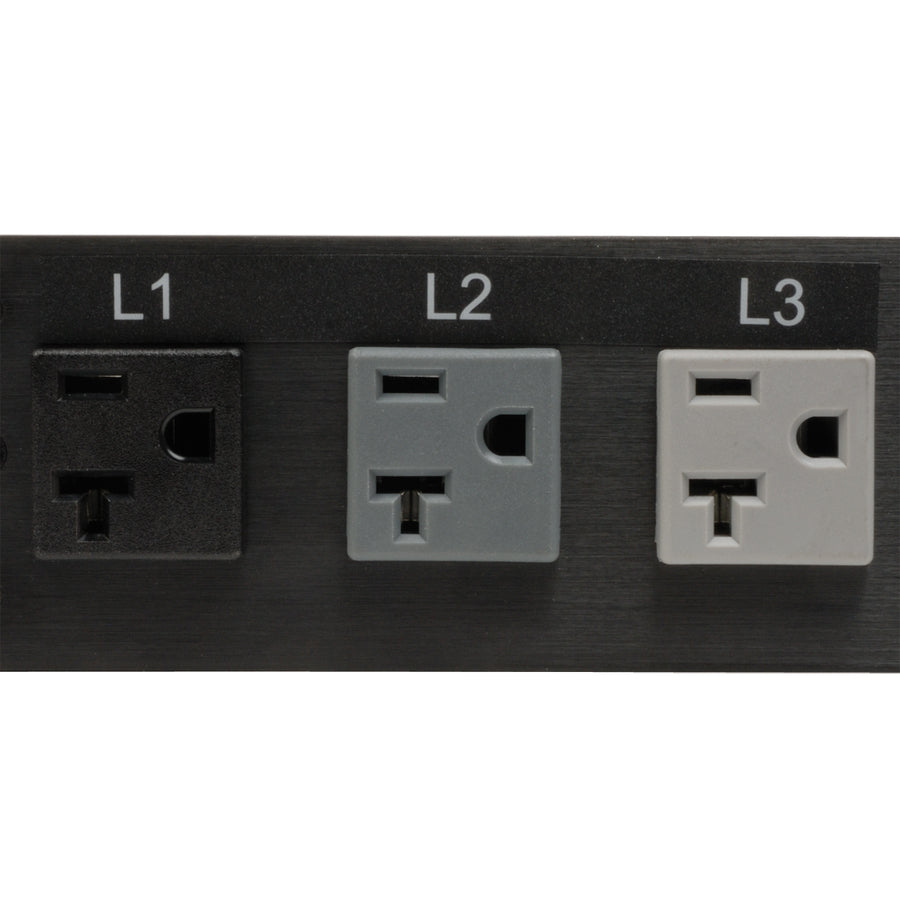

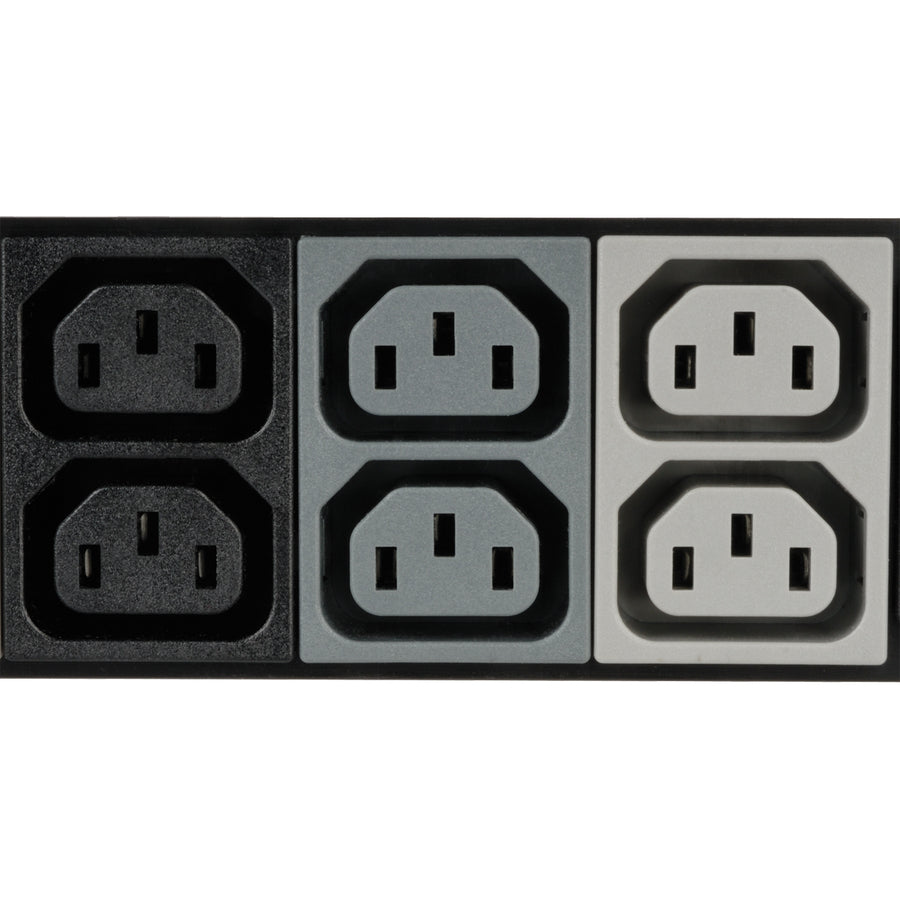

| Receptacle Detail | 6 x NEMA 5-15/20R |
| Receptacle Type | NEMA 5-15/20R |
| Weight (Approximate) | 12.60 lb |
| Width | 1.9" |
