ContactTripp Lite PDU Basic 208V / 240V 30A 6 C19; 32 C13 L6-30P Vertical 0URM
Item #: PDUV30HV | Model #: 0037332138910
| 10 Questions
| Type | Value |
|---|---|
| Brand Name | Tripp Lite |
| Country of Origin | United States |
| Depth | 3.8" |
| Height | 63.8" |
| Input Voltage | 230 V AC |
| Input Voltage Range | 208 V AC - 240 V AC |
| Limited Warranty | 5 Year |
| Manufacturer | Tripp Lite |
| Manufacturer Part Number | PDUV30HV |
| Manufacturer Website Address | http://www.tripplite.com |

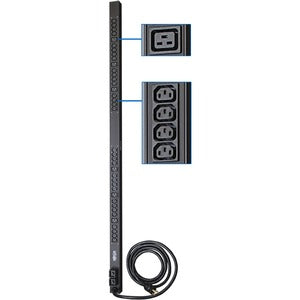

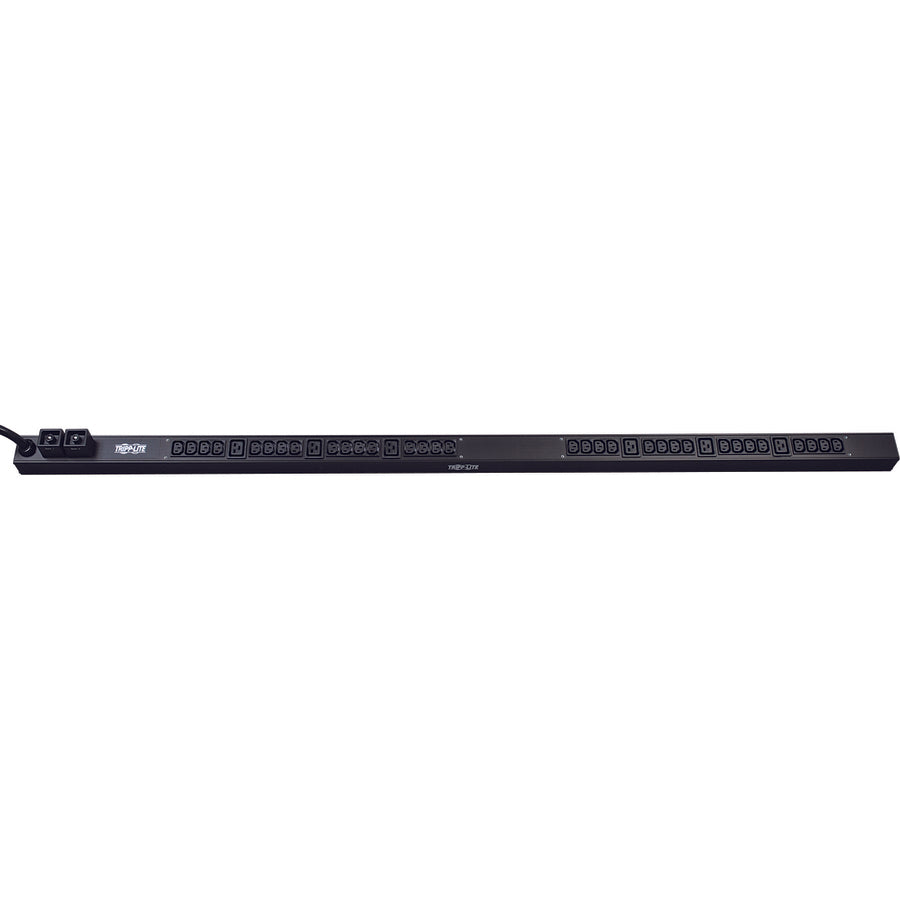

| Marketing Information | Tripp Lite Basic Power Distribution Units give IT Managers the ability to power multiple servers and vital networking hardware from a single input power source. Switch-free unfiltered electrical pass-through reliably distributes UPS or generator power to critical equipment in rack enclosures, network closets and more. Tooless mounting enables simple installation in button-mount compatible racks. Included mounting brackets support vertical installation in standard 2 and 4 post racks or other surfaces, such as under-counter or wallmount configurations. Plug retention brackets keep vital equipment plugged in and continuously powered.PDUV30HV 63.75 in. vertical 0U rack PDU supports 30A maximum capacity at 208/240V (agency derated to 24A). Includes 10 ft. attached line cord with L6-30P input plug. 32 C13 and 6 C19 outlets support up to 38 directly connected pieces of networking equipment. Outlets are arranged in two separately breakered 15A load banks. |
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| Output Voltage | 240 V AC |
| Package Contents |
|
| PDU Type | Basic |
| Plug/Connector Type | NEMA L6-30P |
| Product Model | PDUV30HV |
| Product Name | PDUV30HV PDU Basic 208V - 240V 30A 38 Outlet |
| Product Type | PDU |
| Protection Type | Short Circuit Protection |
| Receptacle Detail | 32 x IEC 60320 C13 |
| Receptacle Type | IEC 60320 C13 |
| Weight (Approximate) | 8 lb |
| Width | 2.3" |
