Tripp Lite PDU Metered 120V 20A 5-15/20R 12 Outlet L5-20P Horizontal 1URM

Item #: PDUMH20   |   Model #: 0037332142504

  |   10 Questions
Regular price
$284.54
Sale price
$284.54
Regular price
Sold out
Unit price
per

1 Each

Special Buy

Type Value
Brand Name Tripp Lite
Country of Origin United States
Depth 4.5"
Environmental Certification RoHS
Environmentally Friendly Yes
Height 1.8"
Input Voltage 120 V AC
Limited Warranty 2 Year
Manufacturer Tripp Lite
Manufacturer Part Number PDUMH20
Manufacturer Website Address http://www.tripplite.com
Marketing Information

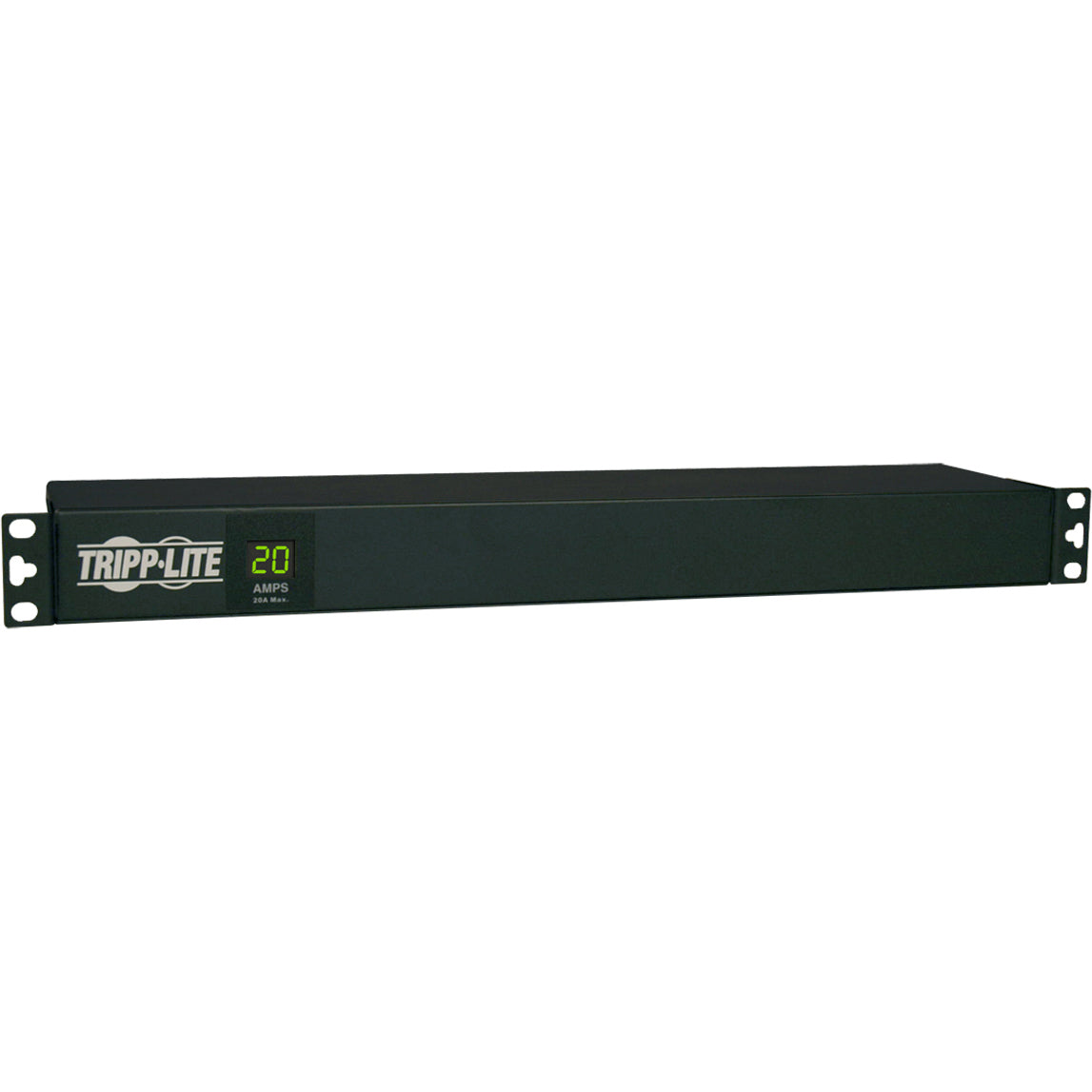

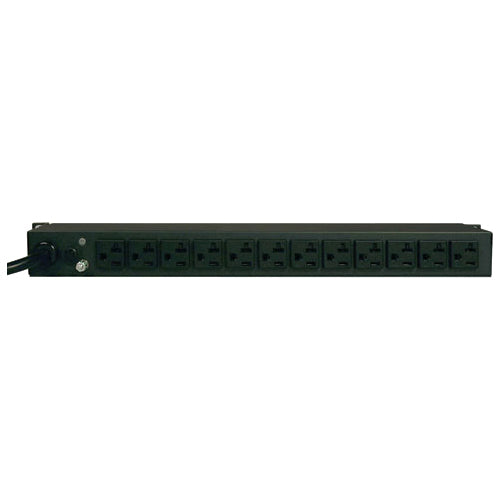

Tripp Lite's PDUMH20 AC power distribution unit offers a digital current monitor and provides 20 amps of 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter, or 1U/0U rackmount installation. Uses only 1U of rack space when installed in any 19-inch rack, with the potential for zero U mounting in the cable management area of most rack enclosures. Built-in digital ammeter display offers continuous visual power consumption data for the entire PDU. Attractive rackmount housing with 12 rear-facing outlets measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes the PDUMH20 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets, and more. Includes 12 rear-facing NEMA 5-15/20R outlets, 15-ft. AC power cord with L5-20P input plug. Comes wih 6-inch L5-20P-to-5-20P adapter, 20 amp breaker, TVSS grounding lug, and rugged all-metal rackmount case design.

Mount Type Rack-mountable
Mounting Orientation Vertical
Output Voltage 120 V AC
Package Contents
  • PDUMH20 PDU Metered 120V 20A 12 Outlet
  • PDUMH20 Metered rackmount PDU
  • Owner's manual with warranty information
Plug/Connector Type NEMA L5-20P
Product Model PDUMH20
Product Name PDUMH20 PDU Metered 120V 20A 12 Outlet
Product Type PDU
Protection Type Overload Protection
Rack Height 1U
Receptacle Detail 12 x NEMA 5-15/20R
Receptacle Type NEMA 5-15/20R
Weight (Approximate) 3 lb
Width 17.5"
