Tripp Lite PDU Monitored 2.9kW 120V 24 5-15/20R 30A LX Platform 0URM TAA

• IPv4
• IPv6
• HTTP
• HTTPS
• SMTP
• SNMPv1
• SNMPv2
• SNMPv3
• telnet
• SSH
• FTP
• DHCP
• NTP

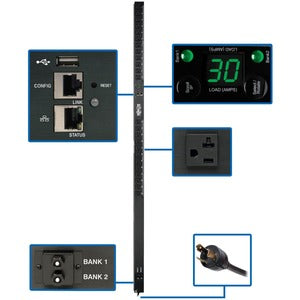

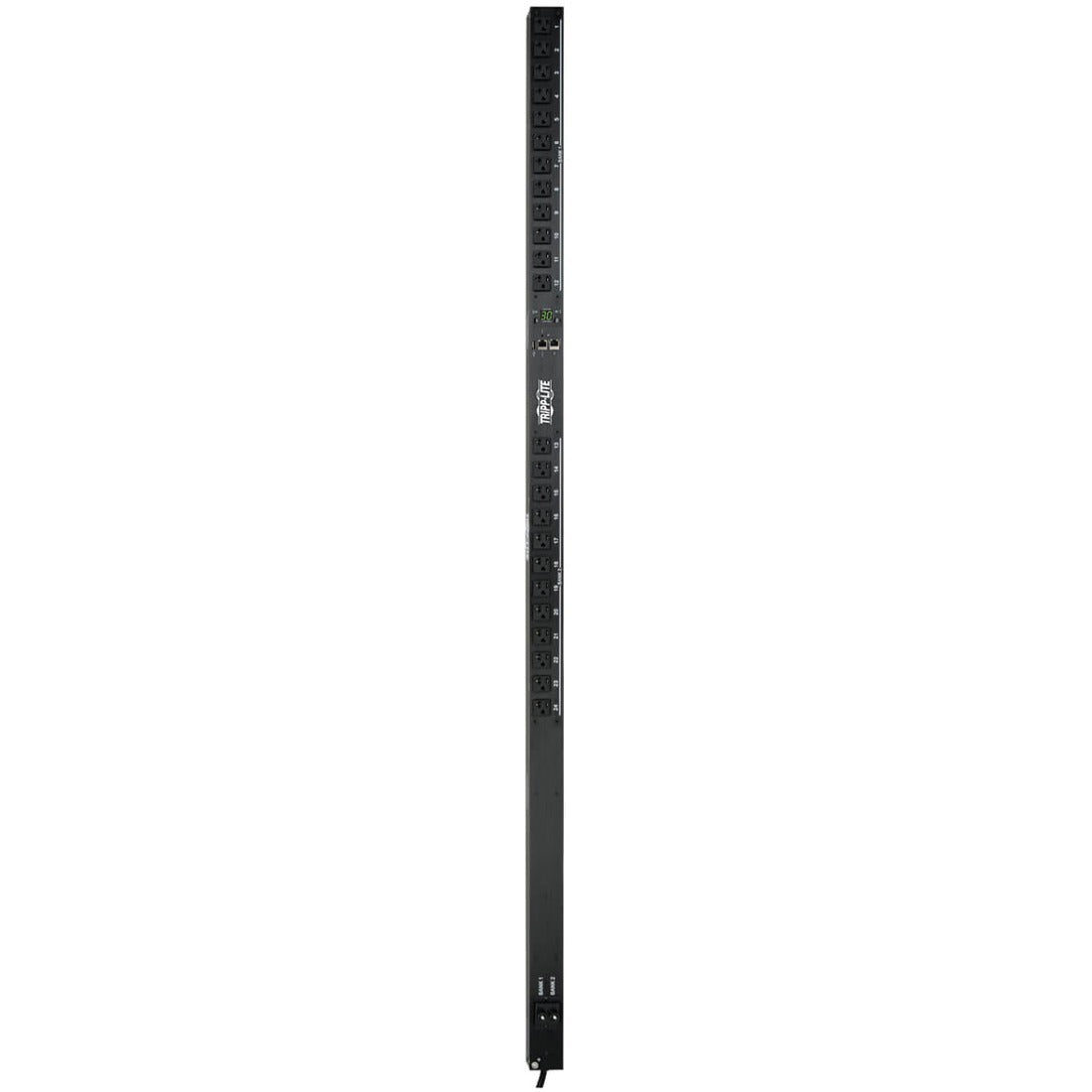

The PDUMNV30LX 2.9kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for IT and industrial applications, the vertical PDU features 24 NEMA 5-15/20R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L5-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A digital ammeter allows you to monitor power consumption for both breakered load banks, as well as the total load to ensure they remain well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

Features

Distributes and Monitors Network-Grade AC Power

• 2.9kW 120V 20A monitored PDU with single-phase input

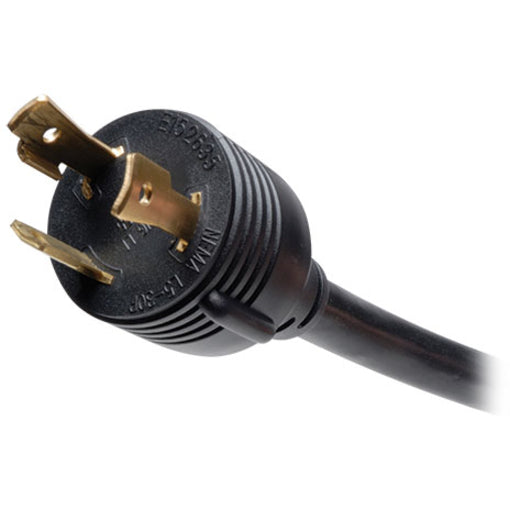

• NEMA L5-30P with 10 ft. cord connects to compatible AC power source
• Firmware upgrades support future product enhancements

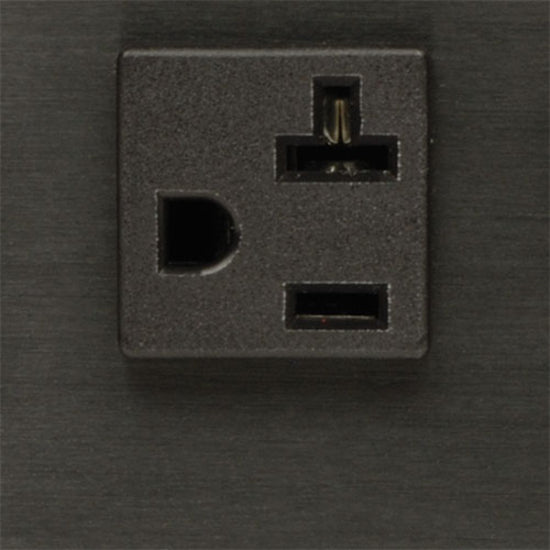

24 NEMA 5-15/20R Outlets Distribute Power

• Cord retention brackets prevent cables from becoming accidentally disconnected

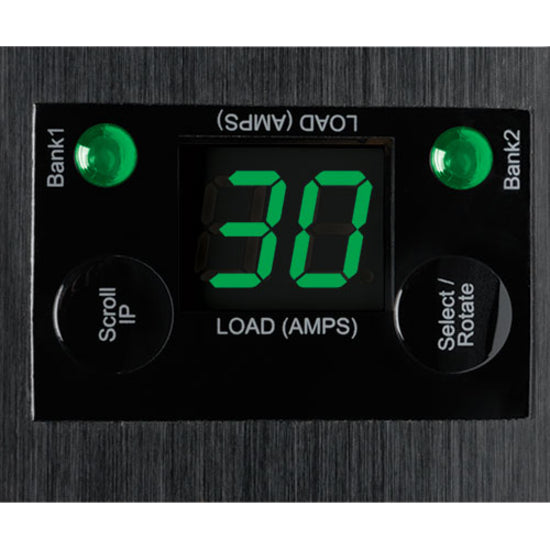

Digital Ammeter

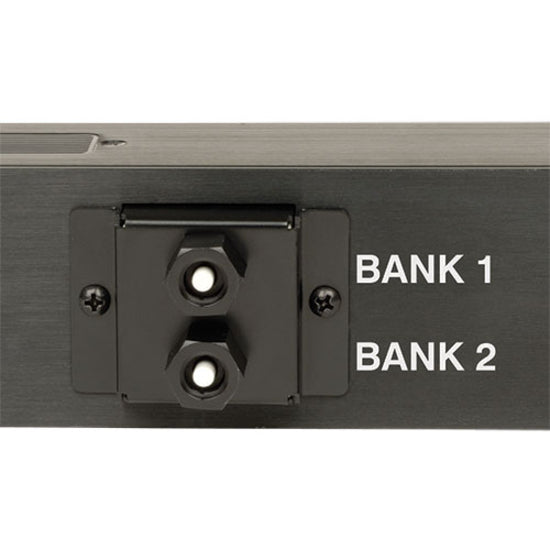

• Reports power consumption for both breakered load banks, plus total output current
• Supports IP-address self-ID
• Rotates 180° for easy reading at either angle

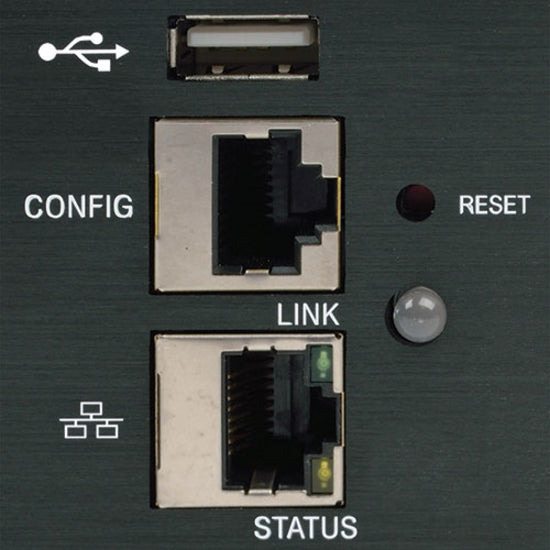

Built-In LX Platform Interface

• Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
• Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
• Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
• No Java required

Broad Communications Compatibility

• Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
• Supports automatic and manual assignment of IP address

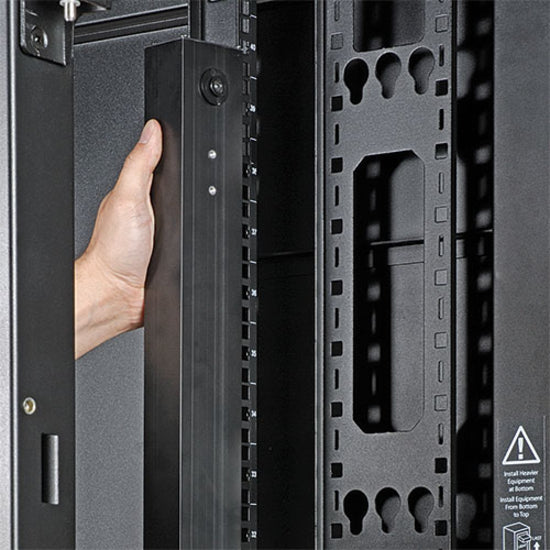

Easy 0U Installation in EIA-Standard 19 in. Racks

• Mounts vertically using included toolless buttons or rack-mounting brackets
• Included PDUMVROTATEBRKT allows mounting with rear-facing outlets

TAA-Compliant

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

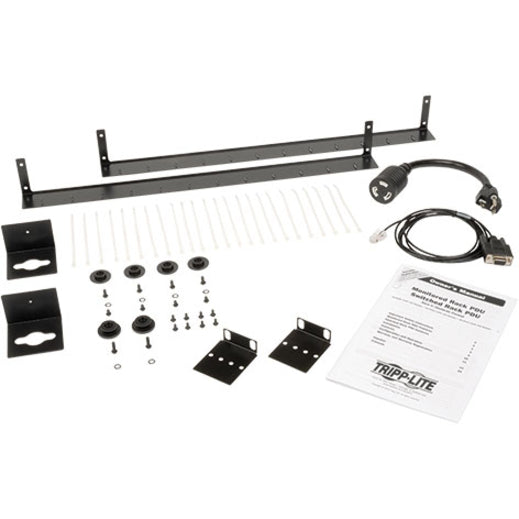

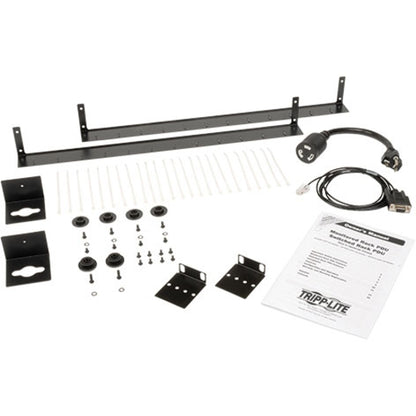

• PDUMNV30LX 2.9kW Single-Phase Monitored PDU
• Built-in LX Platform Interface
• Configuration Cable
• 24 x Cable ties
• 2 x Cord retention brackets
• Rack-mounting hardware
• PDUMVROTATEBRKT Mounting Bracket Accessory
• Owner's Manual
