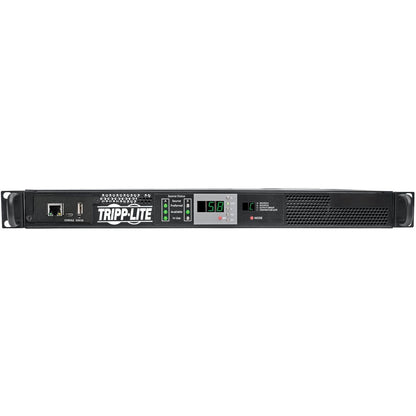

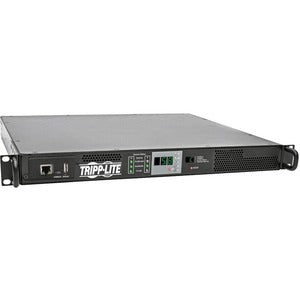

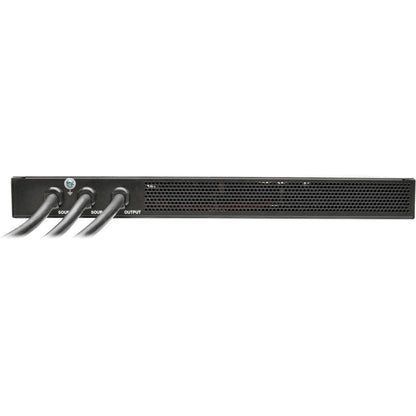

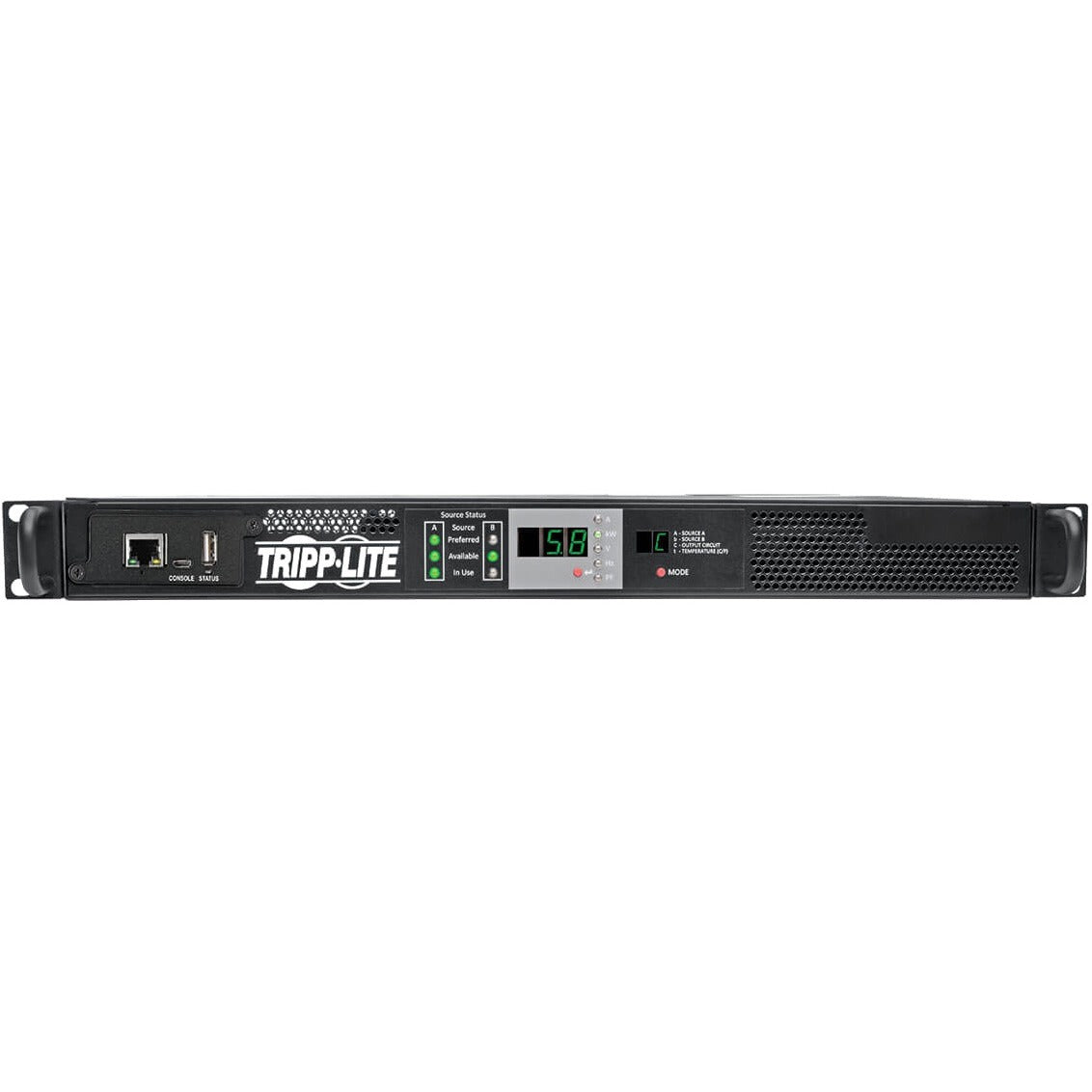

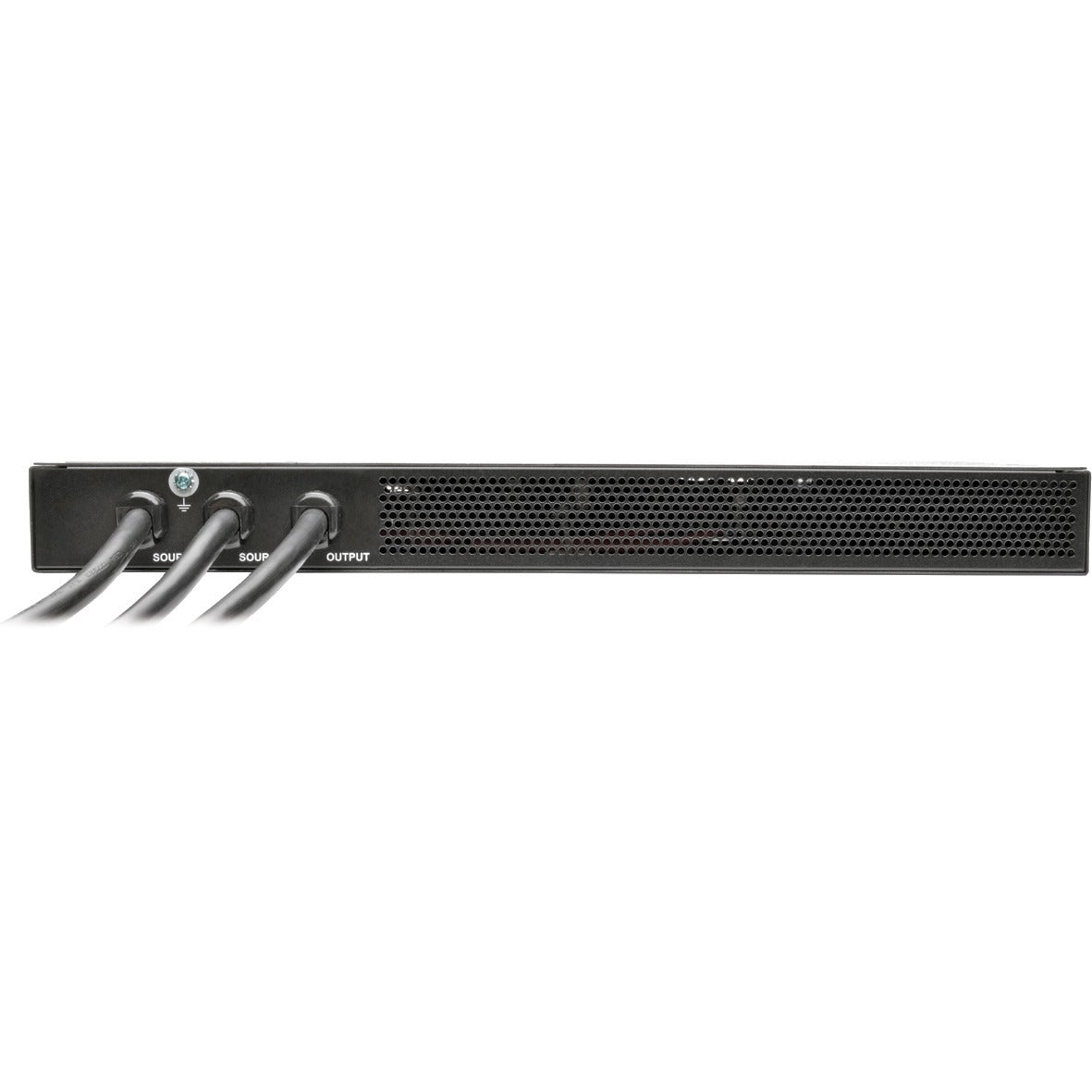

ContactTripp Lite PDU Monitored Horizontal 5.8kw 208/240V L6-30R 2 L6-30P ATS 1URM
Item #: 4367796 | Model #: 0037332184917
| 10 Questions
| Type | Value |
|---|---|
| Brand Name | Tripp Lite |
| Country of Origin | China |
| Depth | 14" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 1.7" |
| Input Current | 30 A |
| Input Voltage | 230 V AC |
| Limited Warranty | 2 Year |
| Management | Protocols:
|
| Manufacturer | Tripp Lite |
| Manufacturer Part Number | PDUMNH30HVAT |
| Manufacturer Website Address | http://www.tripplite.com |

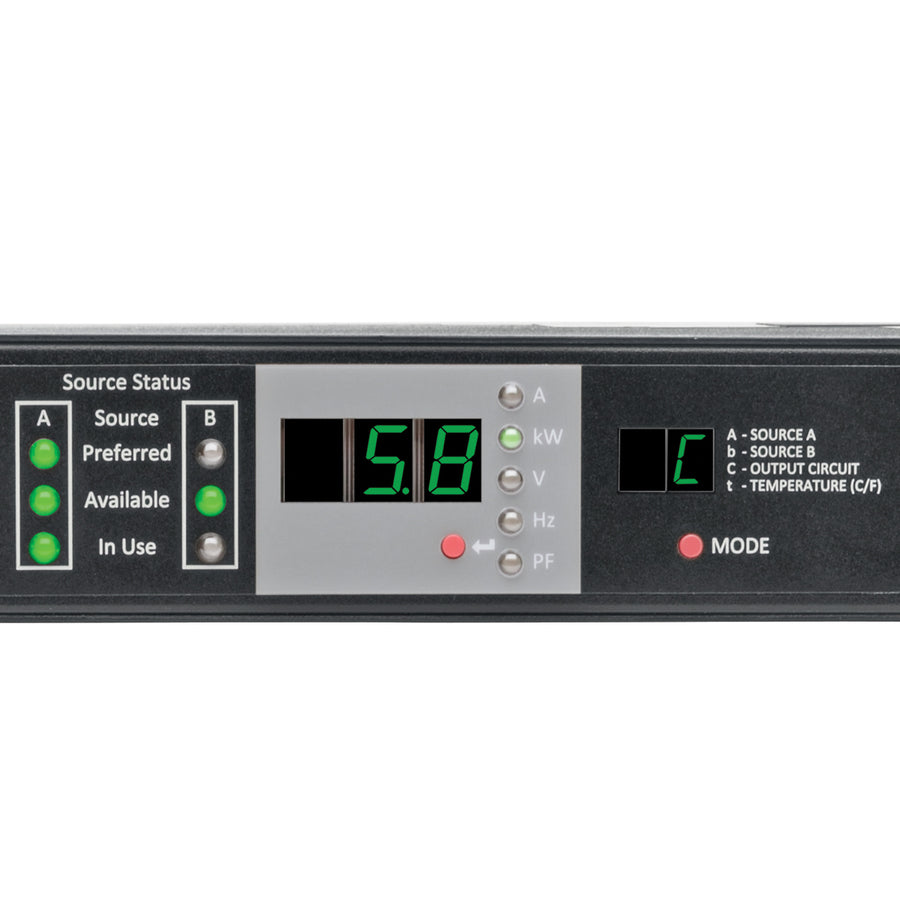

| Marketing Information | The PDUMNH30HVAT 5.8kW Single-Phase 208/240V ATS/Monitored PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and features one L6-30R outlet-perfect for connecting a single device or a 0U 208/240V PDU with an L6-30P plug. Dual 10-foot input cords with L6-30P plugs connect to separate primary and secondary single-phase power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption. Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Automated alerts help prevent accidental overloads, power loss and downtime. Digital display indicates power availability, voltage, source A/B input status, output load and power factor, as well as temperature and humidity conditions with the optional ENVIROSENSE module (sold separately). |
| Mount Type | Rack-mountable |
| Output Voltage | 230 V AC |
| Package Contents |
|
| PDU Type | Monitored |
| Phase | Single Phase |

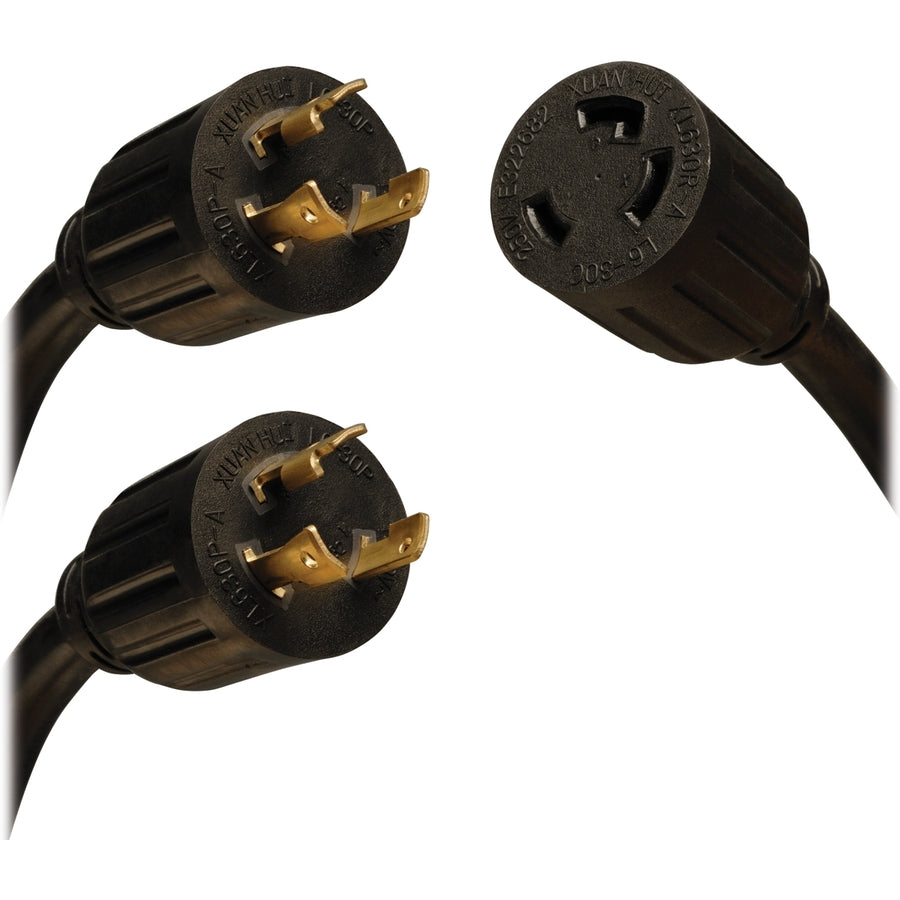

| Plug/Connector Detail | 2 x NEMA L6-30P |
| Plug/Connector Type | NEMA L6-30P |
| Power Rating (Watt) | 5800 W |
| Product Model | PDUMNH30HVAT |
| Product Name | PDUMNH30HVAT 5.8kW Single-Phase 208/240V ATS/Monitored PDU |
| Product Series | Monitored |
| Product Type | PDU |
| Rack Height | 1U |
| Receptacle Detail | 1 x NEMA L6-30R |
| Receptacle Type | NEMA L6-30R |
| Weight (Approximate) | 15.37 lb |
| Width | 16.9" |
