Tripp Lite PDU Switched 120V 1.4kW 15A 8 5-15R 5-15P LX Interface 1URM TAA

Item #: PDUMH15NET2LX   |   Model #: 0037332203274

  |   10 Questions
Regular price
Sale price
Regular price
Sold out
Unit price

1 Each

Special Buy

Type Value
Brand Name Tripp Lite
Country of Origin United States
Depth 4.3"
Environmental Certification RoHS
Environmentally Friendly Yes
Height 1.8"
Input Current 15 A
Input Voltage 120 V AC
Limited Warranty 2 Year
Management Protocols:
  • IPv4
  • IPv6
  • HTTP
  • SMTP
  • SNMPv1
  • SNMPv2
  • SNMPv3
  • Telnet
  • SSH
  • FTP
  • DHCP
  • NTP
Manufacturer Tripp Lite
Manufacturer Part Number PDUMH15NET2LX
Manufacturer Website Address

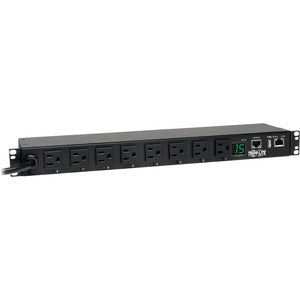

Marketing Information The PDUMH15NET2LX 1.4kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

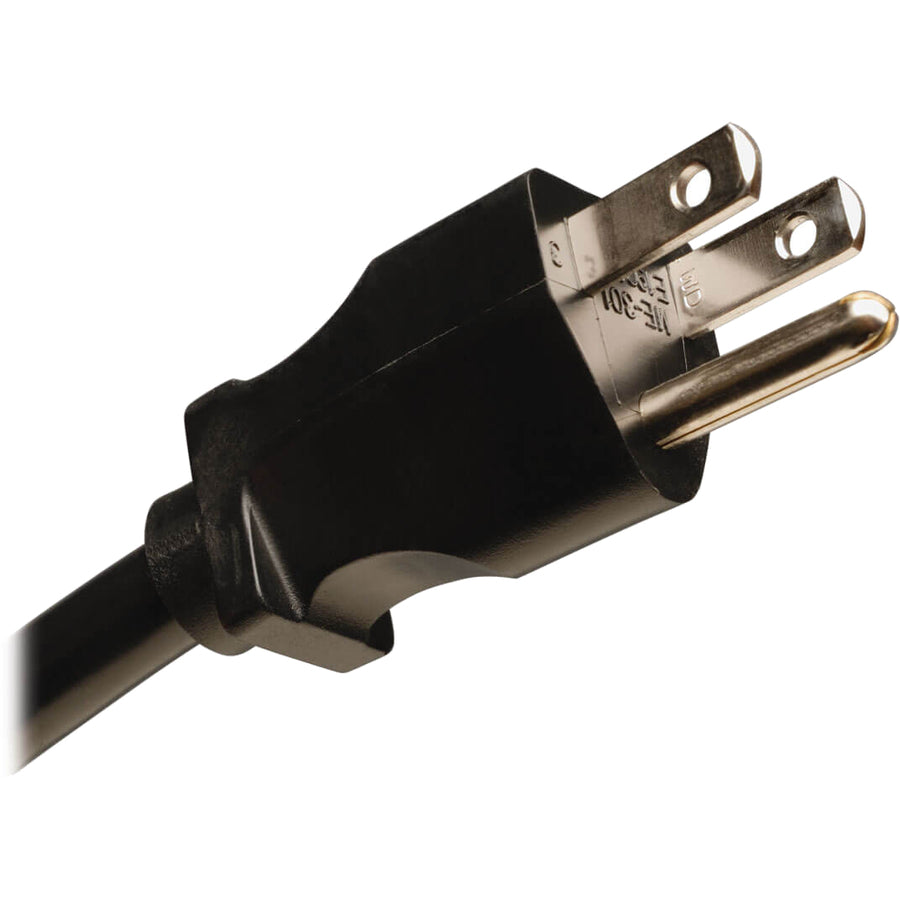

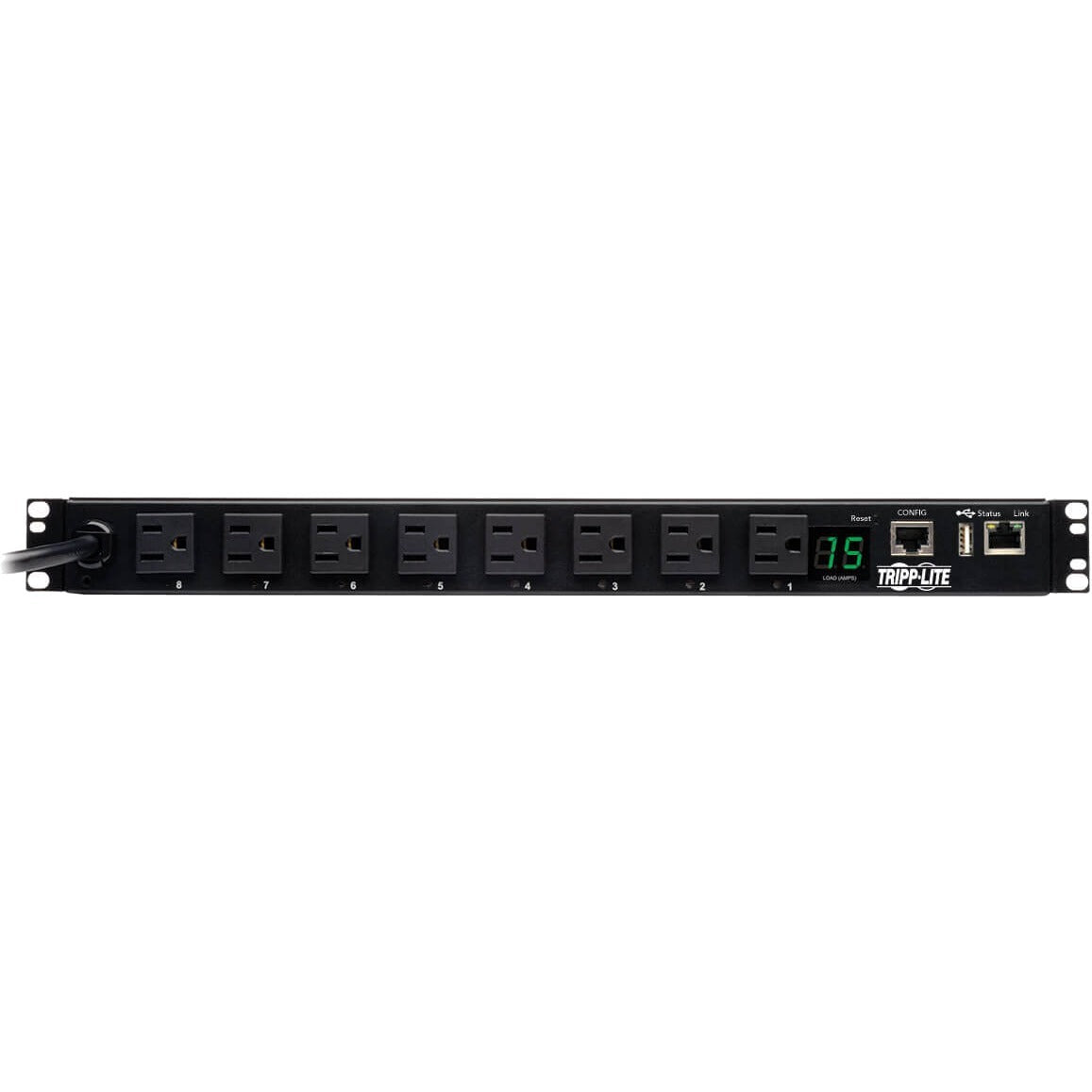

The 1U PDU features eight switched NEMA 5-15R outlets with an included cord retention bracket to prevent cables from becoming accidentally disconnected. A 12-foot cord with NEMA 5-15P plug connects the PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A digital ammeter allows you to monitor the total load in real time to ensure it remains well below maximum capacity with no danger of overload. The rack-mount PDU installs in 1U of space in EIA-standard 19-inch racks. You can also mount it vertically in 0U of rack space or on a wall or under a counter with the included brackets and user-supplied screws.
Mount Type Rack-mountable
Mounting Orientation Horizontal
Output Voltage 127 V AC

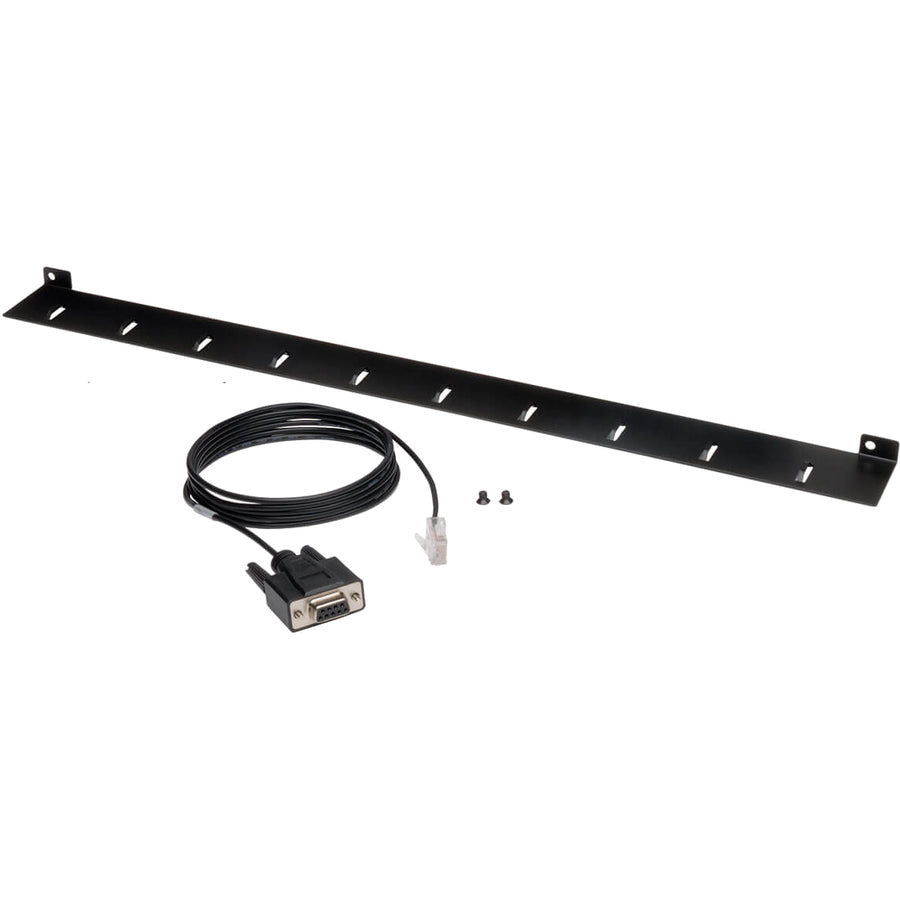

Package Contents
  • PDUMH15NET2LX 8-Outlet PDU
  • Built-in LX Platform Interface
  • Configuration Cable
  • 8 x Cable Ties
  • Cord Retention Bracket
  • Mounting Hardware
  • Owner's Manual
PDU Type Switched
Phase Single Phase
Plug/Connector Type NEMA 5-15P
Power Rating (Watt) 1520 W
Product Model PDUMH15NET2LX
Product Name PDUMH15NET2LX 8-Outlet PDU
Product Type PDU
Rack Height 1U
Receptacle Detail 8 x NEMA 5-15R
Receptacle Type NEMA 5-15R
TAA Compliant Yes
Weight (Approximate) 5.20 lb
Width 17.5"
