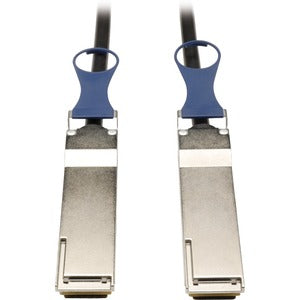

ContactTripp Lite QSFP+ to QSFP+ 40Gb Passive DAC Copper Infiniband Cable 20" 20IN
Item #: 4099072 | Model #: 0037332186096
| 10 Questions
| Type | Value |
|---|---|
| Brand Name | Tripp Lite |
| Cable Characteristic | Patch Cable |
| Cable Length | 1.70 ft |
| Cable Type | QSFP+ |
| Certifications & Standards | MSA |
| Color | Black |
| Connector on First End | 1 x QSFP+ Male Network |
| Connector on Second End | 1 x QSFP+ Male Network |
| Country of Origin | China |
| Device Supported | Network Device |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Passive |
| Limited Warranty | Lifetime |
| Manufacturer | Tripp Lite |
| Manufacturer Part Number | N282-20N-BK |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Tripp Lite's 0.5M (20-in.) QSFP+ 40GBASE-CR4 / 802.3ba qualified passive copper cable provides next generation performance by combining four 10 Gb/s SFP+ channels into one affordable high-density package. Our QSFP+ cables integrate a new 40G Ethernet-optimized (40GbE) 38-position "board-as-connector" design, with zinc die-cast backshells for superior EMI resistance, minimal insertion loss, and improved cross-talk performance. Cable featuress 8-pair wire technology optimized for bandwidth-intense applications including 40-Gigabit Ethernet (40GBASE-CR4), 6G SAS, Fibre Channel and SONET. Flexible 30 AWG conductors maintain a smooth, high-frequency response (20 GHz). Each 1m (3.3-ft) length QSFP+ cable goes through a rigorous assembly and test procedure aimed at eliminating unnecessary signal loss. Our cables are fully compliant to the QSFP+ MSA and SFF-8436 architecture for guaranteed compatibility with all QSFP and QSFP+ ports. |
| Material | Die-cast Zinc - Connector |
| Product Model | N282-20N-BK |
| Product Name | QSFP+ to QSFP+ 40Gb Passive DAC Copper Infiniband Cable, 0.5M (20-in.) |
| Product Type | Network Cable |
