Tripp Lite UPS Maintenance Bypass Panel for SUT30K - 3 Breakers

Item #: 5207633   |   Model #: 0037332222350

  |   10 Questions
$3,992.40
$3,992.40
Sold out

1 Each

Special Buy
Add to list
Type Value
Brand Name Tripp Lite
Compatibility

Tripp Lite SUT30K UPS
Country of Origin China
Current 125 A
Depth 4.6"
Environmental Certification RoHS
Environmentally Friendly Yes
Form Factor Wall-mountable
Height 17.5"
Input Voltage 230 V AC
Limited Warranty 1 Year
Manufacturer Tripp Lite
Manufacturer Part Number SUT30KMBP
Manufacturer Website Address http://www.tripplite.com
Marketing Information

Bypass an SUT30K UPS to Perform Maintenance

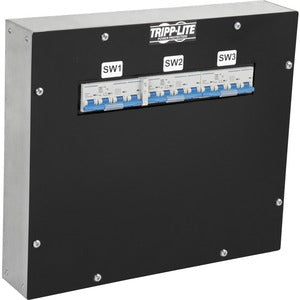

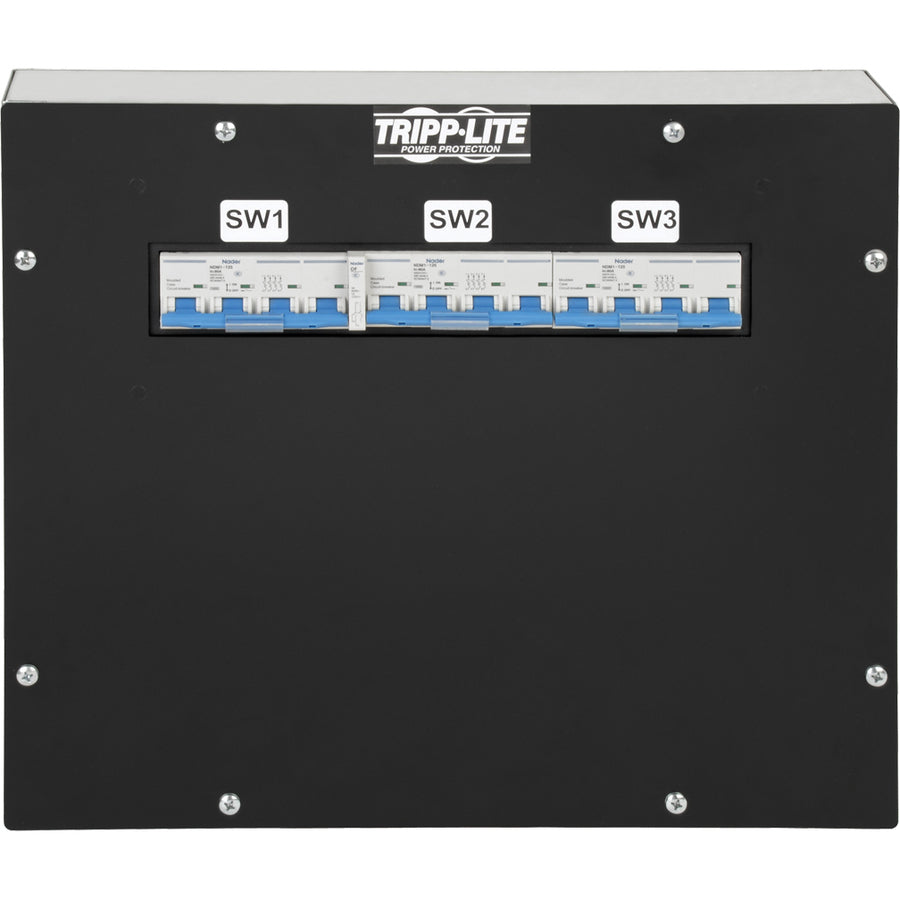

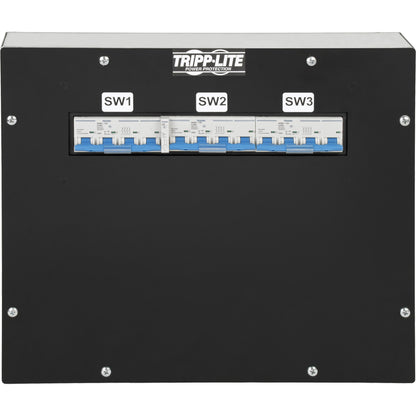

For use with Tripp Lite's SUT30K 3-phase UPS system, the SUT30KMBP maintenance bypass panel (MBP) maintains total continuity of power to connected load circuits when bypass of the UPS is required for regular service and maintenance. This UPS maintenance bypass panel has three 4-pole circuit breakers for Input, Bypass and Output. The breakers have removable handles to allow the panel's trim cover to be removed for internal access. The short circuit rating is 10 kAIC. Maximum current capacity is 125A.

Convenient Wall-Mount Installation

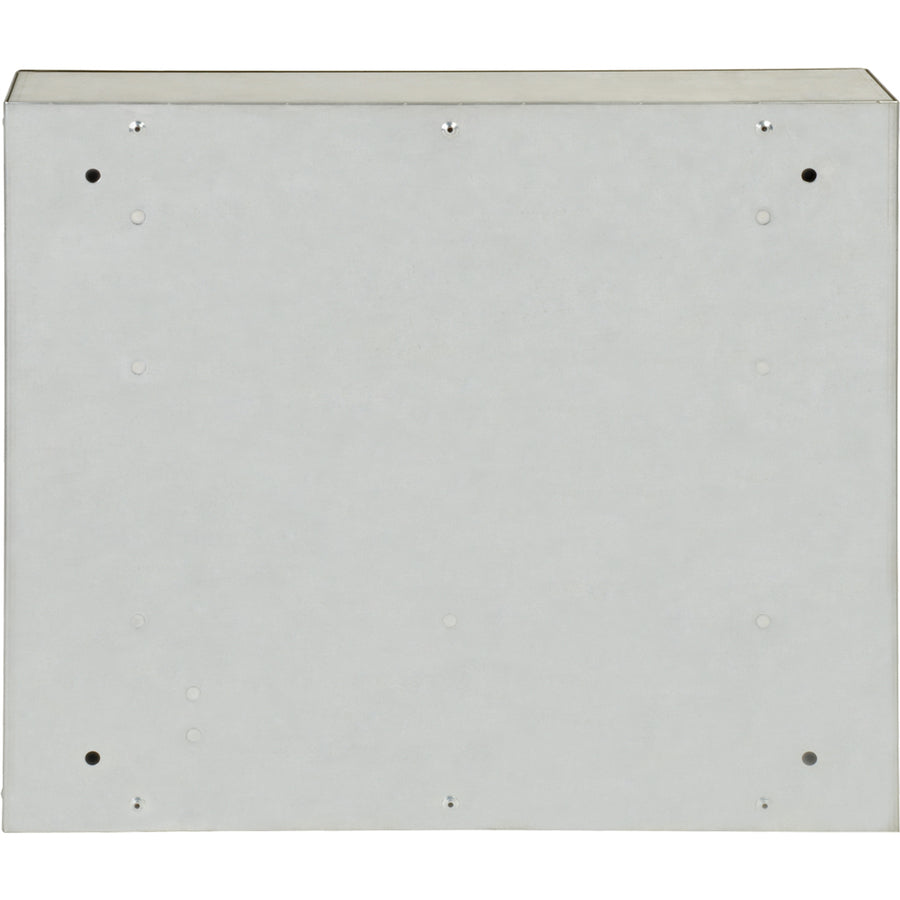

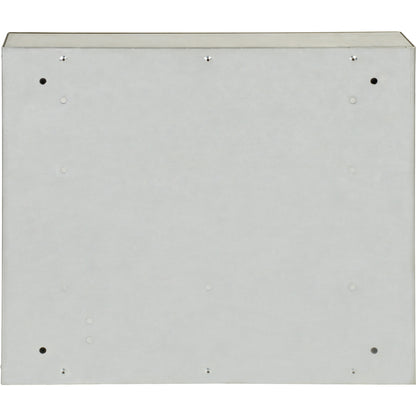

Made of galvanized steel, the service bypass panel has rear mounting holes for installation on a smooth and solid wall (mounting hardware not included).

One-Year Warranty
The SUT30KMBP is backed by a one-year limited warranty, ensuring reliability and performance.
Package Contents
  • UPS Maintenance Bypass Panel for SUT30K - 3 Breakers
  • Installation and Operation Manual
Product Model SUT30KMBP
Product Name UPS Maintenance Bypass Panel for SUT30K - 3 Breakers
Product Type Bypass Panel
Shipping Depth 25"
Shipping Height 10"
Shipping Weight (Approximate) 38 lb
Shipping Width 22"
Weight (Approximate) 28 lb
Width 20"
