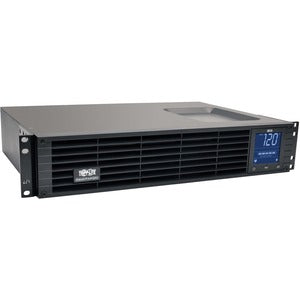

ContactTripp Lite UPS Smart 1000VA 700W Rackmount LCD Pure Sine Wave AVR USB 2URM
Item #: SMC10002URM | Model #: 0037332186232
| 10 Questions
| Type | Value |
|---|---|
| Alarm | Remote Shutdown |
| Assembly Required | No |
| Backup/Run Time (Full Load) | 6.40 Minute |
| Backup/Run Time (Half Load) | 15.60 Minute |
| Battery Management | user-replaceable |
| Brand Name | Tripp Lite |
| Certifications & Standards |
|
| Circuit Breaker | Yes |
| Cord Length | 9.84 ft |
| Country of Origin | United States |
| Depth | 12.5" |
| Emergency Power OFF | Yes |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form Factor | Rack/Tower |
| Height | 3.5" |
| Hot Swappable | Yes |
| Input Current | 9.20 A |
| Input Voltage | 120 V AC |
| Limited Warranty | 3 Year |
| Load Capacity | 1000 VA/700 W |
| Manufacturer | Tripp Lite |
| Manufacturer Part Number | SMC10002URM |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Line-interactive, uninterruptible power supply (UPS) with enhanced LCD interface offers network-grade power protection for your critical server, network and telecommunications equipment. UPS with built-in, auto-voltage regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of a power failure. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption. 95 percent line-mode efficiency offers reduced heat emissions and operating costs. USB and RS-232 ports work with PowerAlert software to communicate detailed UPS status and site power conditions. Communication ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. |
| Maximum Operating Temperature | 104°F (40°C) |
| Output Voltage | 120 V AC |
| Package Contents |
|
| Packaged Quantity | 1 Each |

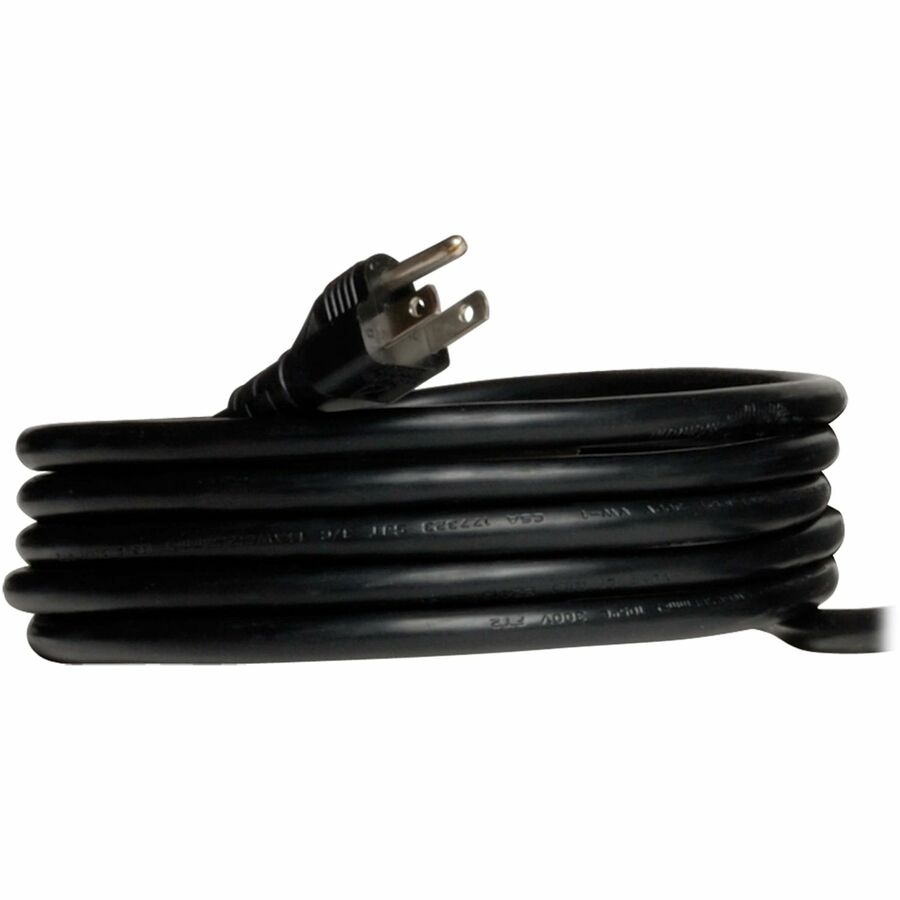

| Plug/Connector Type | NEMA 5-15P |
| Product Line | SmartPro |
| Product Model | SMC10002URM |
| Product Name | Line-interactive UPS Power Supply |
| Product Type | Line-interactive UPS |
| Protection Type | EMI / RFI |
| Rack Height | 2U |

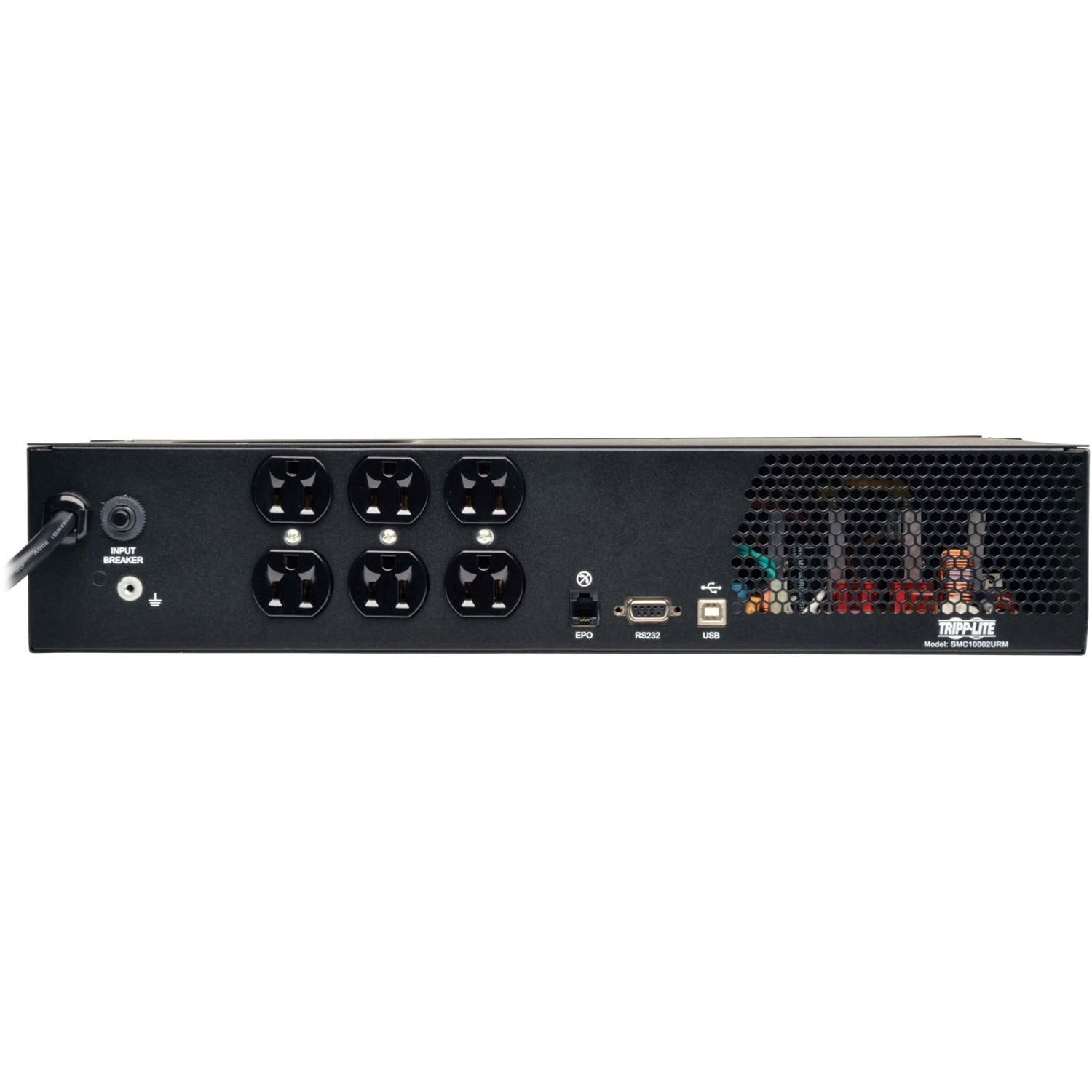

| Receptacle Detail | 6 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Recycled | No |
| Serial Port | Yes |
| Sound Emission | 45 dB |
| Status Indicators | LEDs |
| Surge Energy Rating | 570 J |
| Thermal Dissipation | 35.75 W |
| USB | Yes |
| Waveform Type | Pure Sine Wave |
| Weight (Approximate) | 35.40 lb |
| Width | 17.4" |
