ContactTripp Lite UPS Smart 2200VA 1920W Rackmount AVR 120V / 230V Pure Sine Wave 3URM TAA GSA
Item #: 2770150 | Model #: 0037332156310
| 10 Questions
| Type | Value |
|---|---|
| Additional Information | Input Receptacle: C20 |
| Backup/Run Time (Full Load) | 12 Minute |
| Backup/Run Time (Half Load) | 30 Minute |
| Brand Name | Tripp Lite |
| Certifications & Standards |
|
| Country of Origin | Taiwan |
| Depth | 25.3" |
| Emergency Power OFF | Yes |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form Factor | Rack/Tower |
| Height | 5.3" |
| Hot Swappable | Yes |
| Input Current | 16 A |
| Input Voltage | 220 V AC |
| Limited Warranty | 2 Year |
| Load Capacity | 2200 VA/1920 W |
| Manufacturer | Tripp Lite |
| Manufacturer Part Number | SM2200RMDVTAA |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Tripp Lite's dual input voltage SM2200RMDVTAA line interactive UPS system maintains 120V nominal output when powered by North American 120V or International 230V input. 3U rack / tower form factor with an installed depth of only 22.5 inches. Expandable battery runtime with optional BP48V24-2U and BP48V60RT3U external battery packs. Includes C20 power inlet with set of 4 international cordsets and both NEMA 5-15R and 5-15/20R output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Integrated 2-bank programmable PDU switching supports load shedding and remote-reboot of up to 2 individual connected devices. 3-stage metered current monitoring and battery charge status LEDs. 95% efficiency in line power mode. |
| Network Management | SNMP Manageable |
| Output Voltage | 120 V AC |

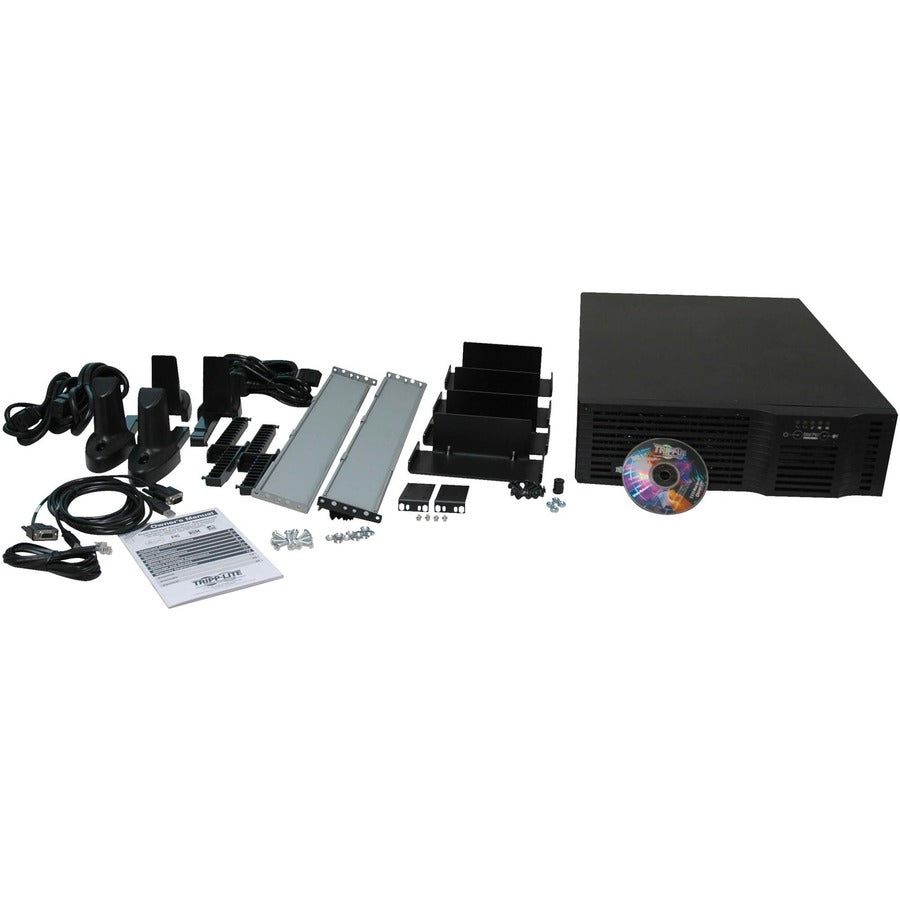

| Package Contents |
|
| Product Line | SmartPro |
| Product Model | SM2200RMDVTAA |
| Product Name | SmartPro SM2200RMDVTAA 2200 VA Tower/Rack Mountable UPS |
| Product Type | Line-interactive UPS |
| Rack Height | 3U |
| Receptacle Detail | 4 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Serial Port | Yes |
| Software Included | PowerAlert Software |
| TAA Compliant | Yes |
| Transfer Time | 4 ms |
| Typical Battery Recharge Time | 4.50 Hour |
| USB | Yes |
| Weight (Approximate) | 104.25 lb |
| Width | 17.5" |
