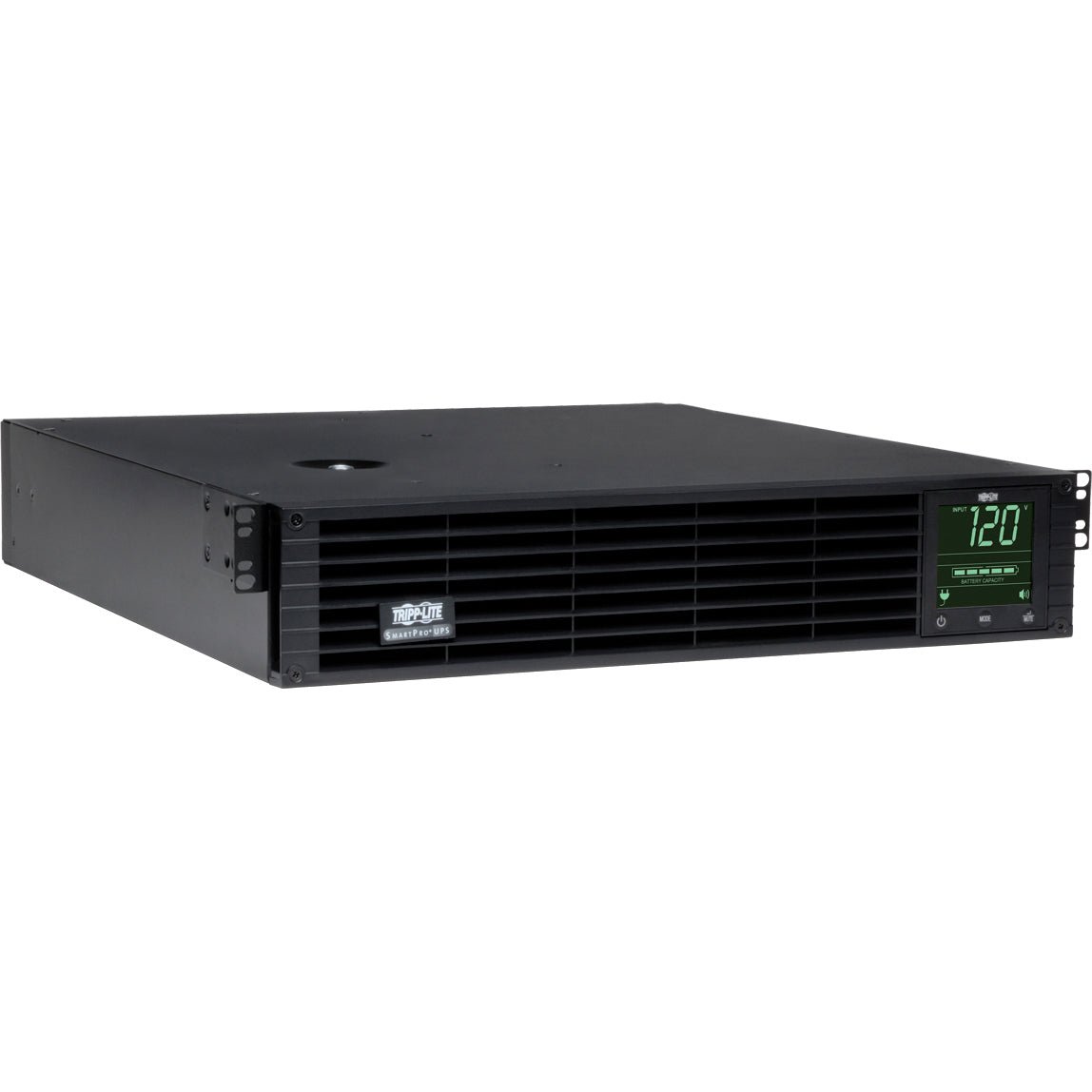

ContactTripp Lite UPS Smart 2200VA 1920W Rackmount AVR Pure Sign Wave 100V/110V/120V USB DB9 2URM
Item #: SMART2200RM2U | Model #: 0037332150622
| 10 Questions
| Type | Value |
|---|---|
| Alarm | Low Battery |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 13 Minute |
| Brand Name | Tripp Lite |
| Certifications & Standards |
|
| Cord Length | 10 ft |
| Country of Origin | United States |
| Depth | 19" |
| Emergency Power OFF | Yes |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form Factor | Rack-mountable |
| Height | 3.5" |
| Hot Swappable | Yes |
| Input Current | 16.40 A |
| Input Voltage | 110 V AC |
| Limited Warranty | 3 Year |
| Load Capacity | 2200 VA/1920 W |
| Manufacturer | Tripp Lite |
| Manufacturer Part Number | SMART2200RM2U |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and slot for network management accessory card. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert UPS monitoring software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules. |
| Maximum Operating Temperature | 104°F (40°C) |
| Network Management | SNMP Manageable |
| Output Voltage | 110 V AC |
| Package Contents |
|
| Packaged Quantity | 1 Each |
| Plug/Connector Type | NEMA 5-20P |
| Product Line | SmartPro |
| Product Model | SMART2200RM2U |
| Product Name | SMART2200RM2U UPS System |
| Product Type | Line-interactive UPS |
| Protection Type | Under Voltage |
| Rack Height | 2U |
| Receptacle Detail | 4 x NEMA 5-15/20R |
| Receptacle Type | NEMA 5-15/20R |
| Recycled | No |
| Serial Port | Yes |
| Software Included | PowerAlert Software |
| Status Indicators | 5 Front Panel Leds:
|
| Typical Battery Recharge Time | 4.50 Hour |
| USB | Yes |
| Waveform Type | Sine Wave |
| Weight (Approximate) | 64 lb |
| Width | 17.5" |
