| Type |
Value |
| Backup/Run Time (Full Load) |
3 Minute |
| Backup/Run Time (Half Load) |
10 Minute |
| Brand Name |
Tripp Lite |
| Certifications & Standards |
- UL1778 (USA)
- CSA (Canada)
- NOM (Mexico)
- FCC Part 15 Category A (EMI)
|
| Country of Origin |
United States |
| Depth |
19" |
| Emergency Power OFF |
Yes |
| Environmental Certification |
RoHS |
| Environmentally Friendly |
Yes |
| Form Factor |
Rack-mountable |
| Height |
3.5" |
| Hot Swappable |
Yes |
| Input Voltage |
120 V AC |
| Limited Warranty |
2 Year |
| Load Capacity |
3000 VA/2880 W |
| Manufacturer |
Tripp Lite |
| Manufacturer Part Number |
SMART3000RMXL2U |
| Manufacturer Website Address |
http://www.tripplite.com |
| Marketing Information |

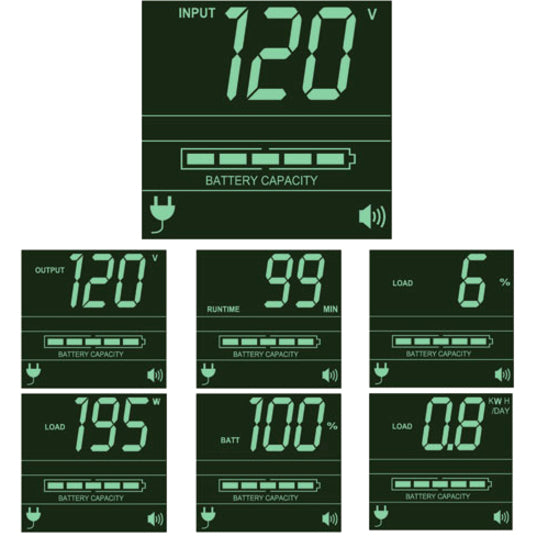

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional Network Management Card option. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert UPS monitoring software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules. |
| Network Management |
SNMP Manageable |
| Output Voltage |
120 V AC |

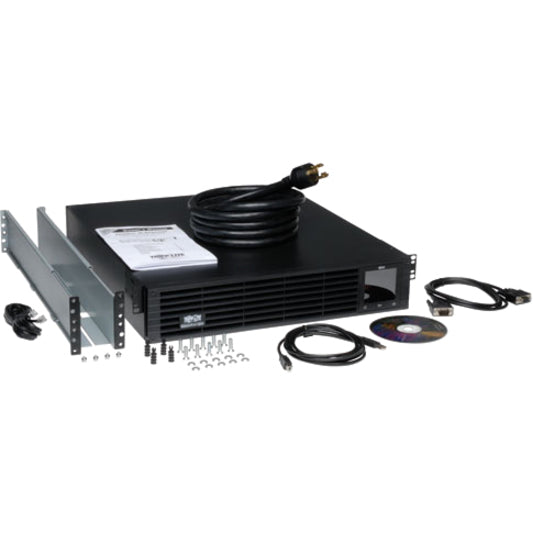

| Package Contents |
- SmartPro SMART3000RMXL2U 3000VA Rack-mountable UPS
- UPS power module with internal batteries
- PowerAlert Software CD with USB, DB9 and EPO cabling
- 4 x post rackmount installation accessories
- Owner's manual with warranty information
|
| Plug/Connector Type |

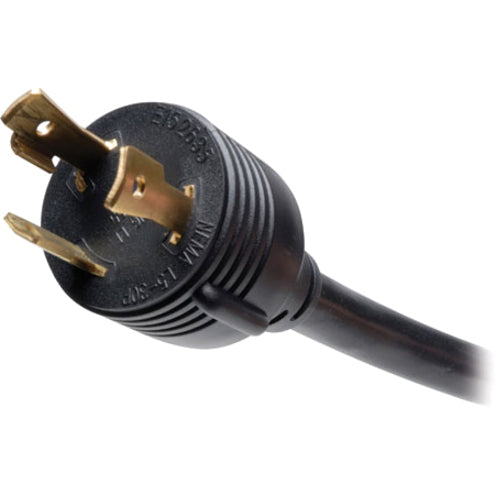

NEMA L5-30P |
| Product Line |
SmartPro |
| Product Model |
SMART3000RMXL2U |
| Product Name |
SmartPro SMART3000RMXL2U 3000VA Rack-mountable UPS |
| Product Type |
Line-interactive UPS |
| Rack Height |
2U |
| Receptacle Detail |
1 x NEMA L5-30R |
| Receptacle Type |
NEMA L5-30R |
| Serial Port |
Yes |
| Software Included |
PowerAlert Software |
| Transfer Time |
5 ms |
| Typical Battery Recharge Time |
5 Hour |
| USB |
Yes |
| Weight (Approximate) |
64 lb |
| Width |
17.5" |
