ContactTripp Lite UPS Smart 5000VA 3750W Rackmount AVR 120V/208V Pure Sign Wave 5kVA USB DB9 3URM
Item #: 1039442 | Model #: 0037332121462
| 10 Questions
| Type | Value |
|---|---|
| Additional Information |
|
| Backup/Run Time (Full Load) | 8.50 Minute |
| Backup/Run Time (Half Load) | 20 Minute |
| Battery Characteristics | Maintenance-free |
| Battery Chemistry | Sealed Lead Acid (SLA) |
| Brand Name | Tripp Lite |
| Certifications & Standards |
|
| Country of Origin | Taiwan |
| Depth | 25" |
| Emergency Power OFF | Yes |
| Form Factor | Tower |
| Height | 5.3" |
| Hot Swappable | Yes |
| Input Current | 27 A |
| Input Voltage | 208 V AC |
| Limited Warranty | 3 Year |
| Load Capacity | 5000 VA/3750 W |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SMART5000XFMRXL |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Tripp Lite 5kVA Smart RM UPS. 5000VA line-interactive UPS for server, network and telecommunications equipment. UPS with internal batteries requires 3 rack spaces installed. Accepts 208V nominal input voltage. Simultaneous 208 & 120V output. Corrects brownouts and overvoltages from 167V to 260V. Sine wave output. Maintains battery-derived AC output during blackouts and severe voltage fluctuations. Expandable runtime with optional external battery packs. 11 output receptacles. NEMA L6-30P input connection with support for user-supplied 50A or hardwire input. Network-grade AC surge and noise suppression. Network management interfaces include USB, DB9 serial and SNMPWEBCARD slot. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all network interfaces simultaneously. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated 8-bank switched PDU. 3-stage metered current monitoring and battery charge LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rack mounting accessories included; 2-9USTAND and 2POSTRMKITWM accessories available. Field-replaceable, hot-swappable internal batteries and battery packs. |
| Modem (RJ-11) | Yes |
| Network Management | SNMP Manageable |
| Output Voltage | 208 V AC |

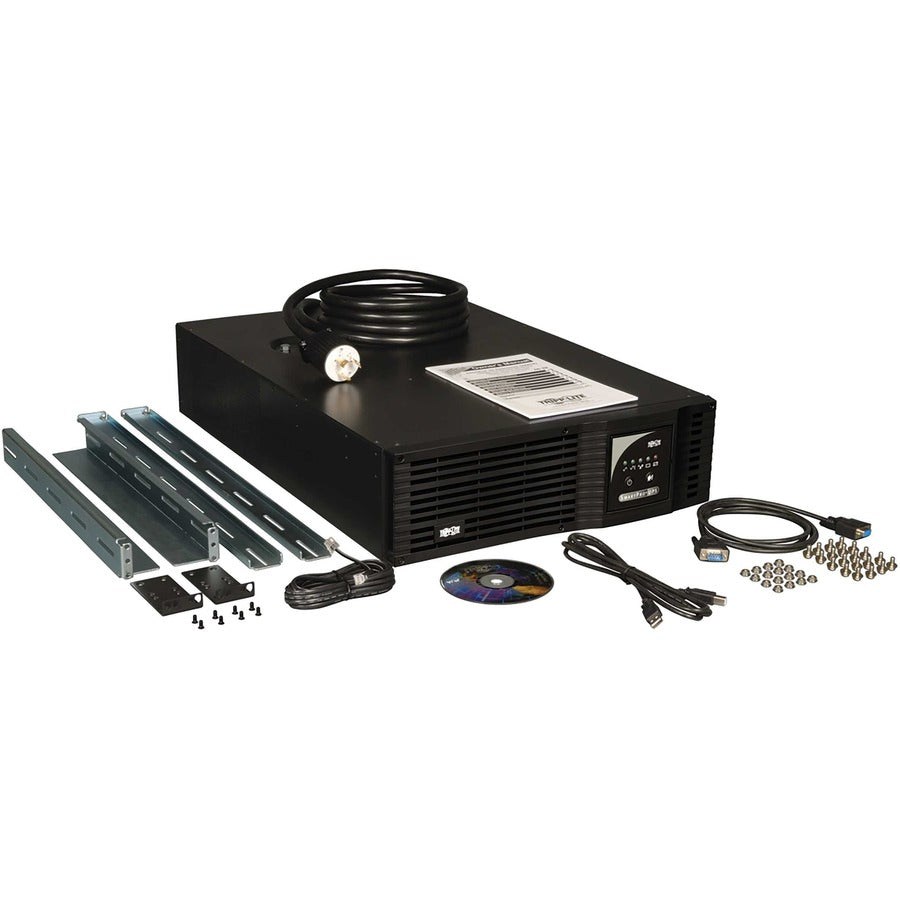

| Package Contents |
|

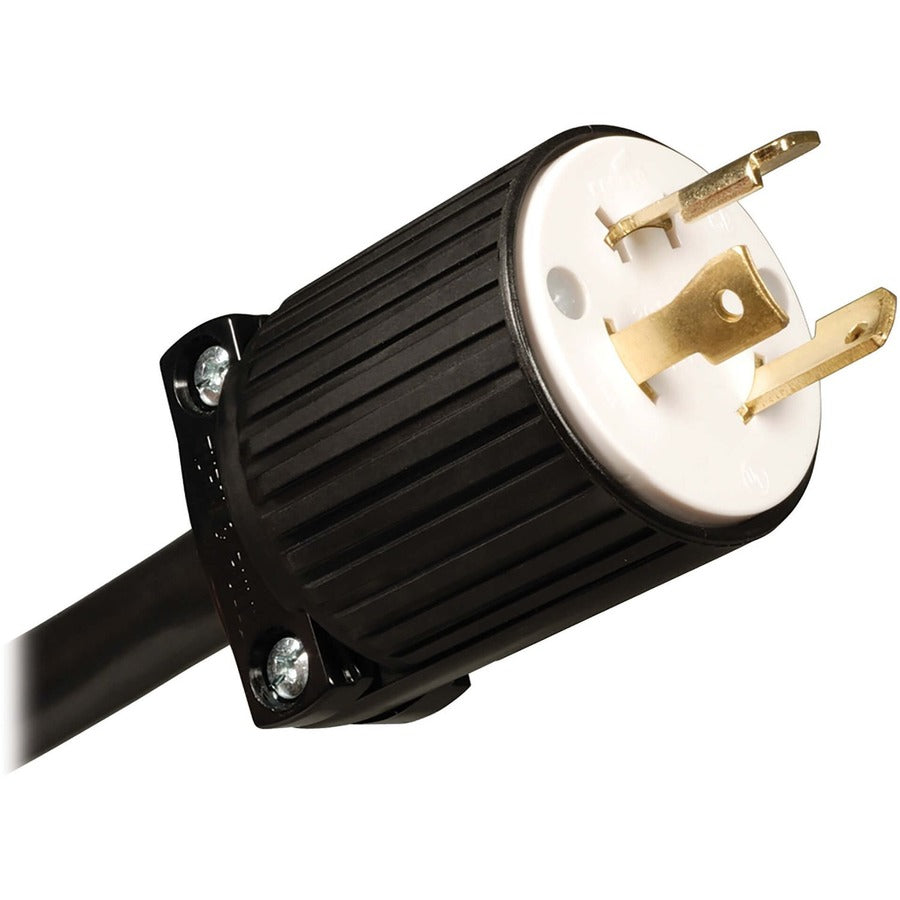

| Plug/Connector Type | NEMA L6-30P |
| Product Line | SmartPro |
| Product Model | SMART5000XFMRXL |
| Product Name | SmartPro Series SMART5000XFMRXL 5000VA Tower/Rack Mountable UPS |
| Product Type | Line-interactive UPS |
| Rack Height | 3U |

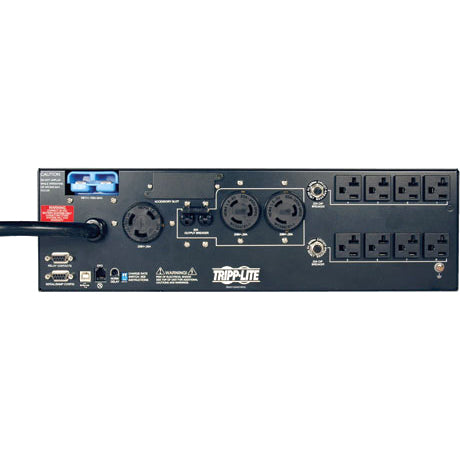

| Receptacle Detail | 8 x NEMA 5-15/20R |
| Receptacle Type | NEMA 5-15/20R |
| Serial Port | Yes |
| Software Included | PowerAlert UPS Monitoring Software |
| TAA Compliant | Yes |
| Total Number of Expansion Slo | 1 |
| Transfer Time | 4 ms |
| Typical Battery Recharge Time | 4 Hour |
| USB | Yes |
| Weight (Approximate) | 143.30 lb |
| Width | 17.5" |
