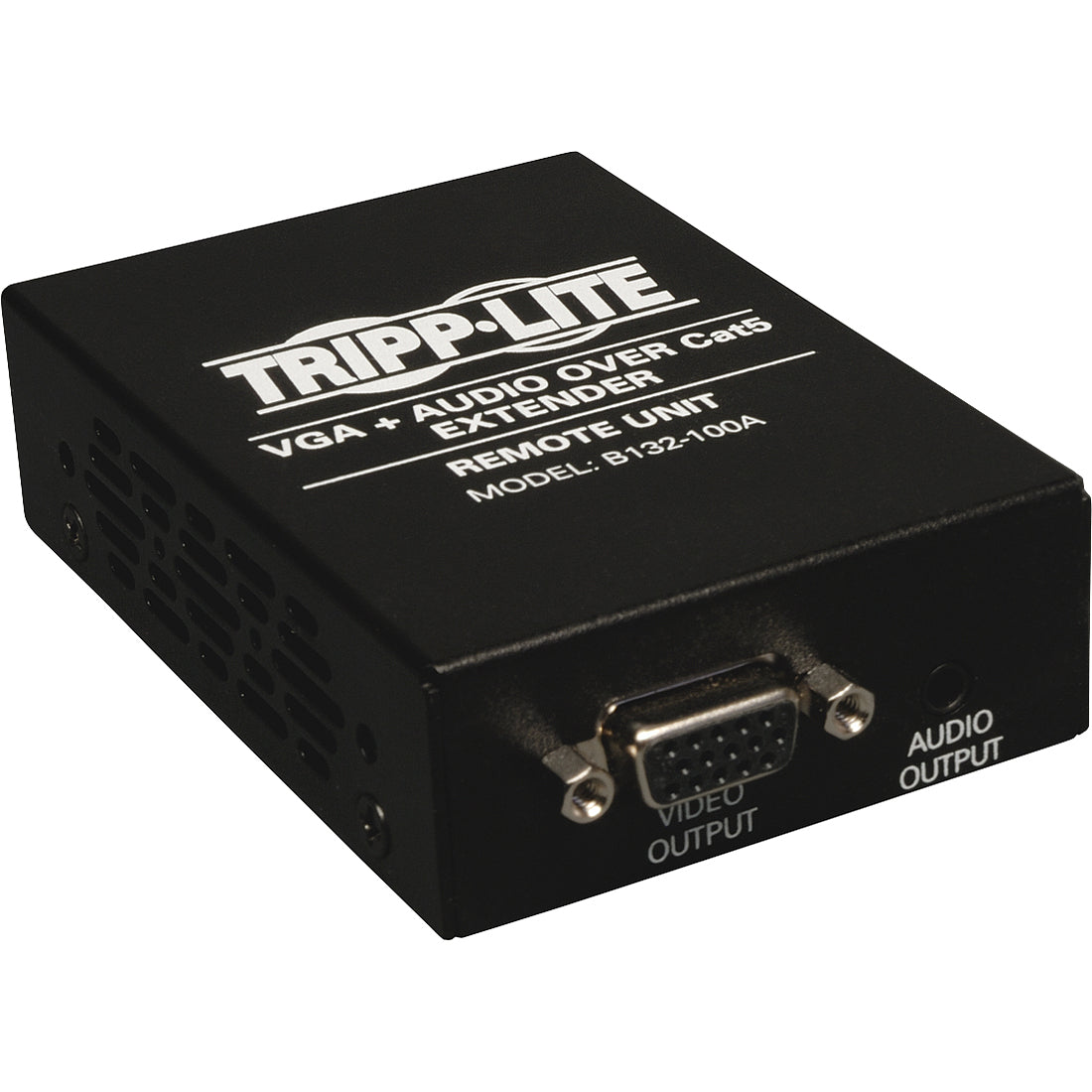

ContactTripp Lite VGA + Audio Over Cat5/Cat6 Remote Unit Video Extender / Splitter
Item #: 2443931 | Model #: 0037332148773
| 10 Questions
| Type | Value |
|---|---|
| Brand Name | Tripp Lite |
| Certifications & Standards |
|
| Color | Black |
| Connectivity Technology | Wired |
| Country of Origin | Taiwan |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form Factor | Pole-mountable |
| Limited Warranty | 1 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | B132-100A |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Tripp Lite's B132-100A works with a B132-002A-2 or B132-004A-2 local transmitter unit to extend a 1920 x 1440 (60Hz) Video and Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video and Audio signal up to 1,000 ft.. 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution. For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. Features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. |
| Maximum Operating Distance | 1000 ft |
| Maximum Video Resolution | 1920 x 1440 |
| Media Type Supported | Twisted Pair |
| Network (RJ-45) | Yes |
| Number of Input Devices Suppo | 1 |
| Number of Network (RJ-45) Por | 1 |
| Number of Output Devices Supp | 2 |
| Package Contents |
|
| Product Model | B132-100A |
| Product Name | B132-100A TAA/GSA Compliant Video Extender |
| Product Type | Video Extender Transmitter |
| TAA Compliant | Yes |
| Transmitter Depth | 3.60" |
| Transmitter Height | 1.10" |
| Transmitter Weight (Approxima | 7.20 oz |
| Transmitter Width | 2.50" |
| Twisted Pair Cable Standard | Category 6 |
