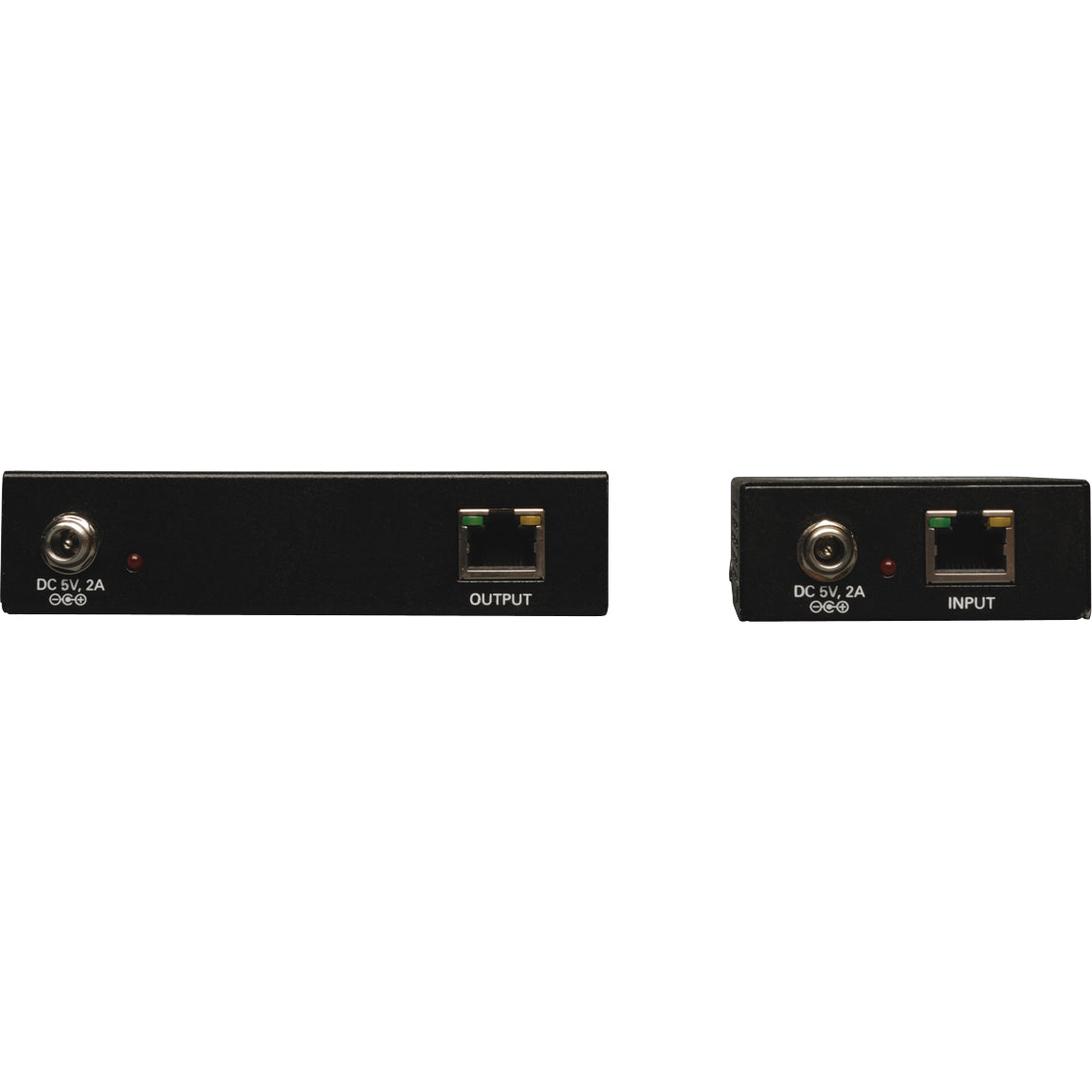

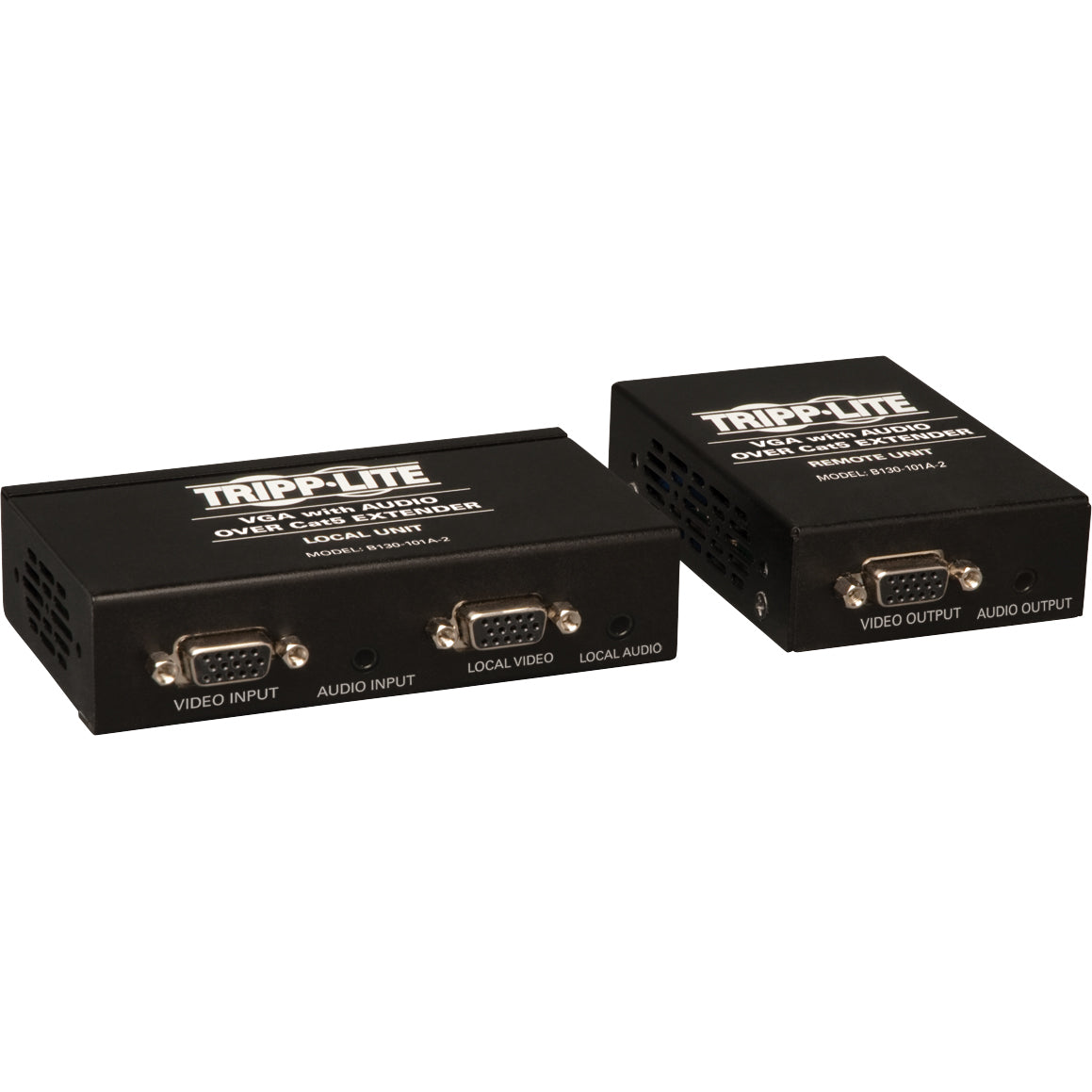

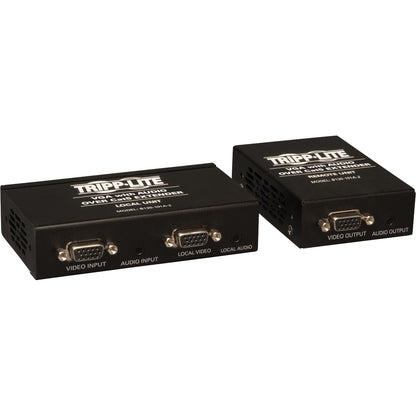

Tripp Lite VGA & Audio over Cat5/Cat6 Video Extender Kit Transmitter Receiver TAA GSA

Item #: 3616454   |   Model #: 0037332178398

  |   10 Questions
Regular price
$200.00
Sale price
$200.00
Regular price
Sold out
Unit price
per

1 Each

Special Buy

Tripp Lite VGA & Audio over Cat5/Cat6 Video Extender Kit Transmitter Receiver TAA GSA - 1 Input Device - 2 Output Device - 1000 ft Range - 2 x Network (RJ-45) - 1 x VGA In - 2 x VGA Out - 1920 x 1440 - Twisted Pair - Category 6 - Wall Mountable, Rack-mountable, Pole-mountable - TAA Compliant
Type Value
Brand Name Tripp Lite
Certifications & Standards TAA
Color Black
Connectivity Technology Wired
Country of Origin Taiwan
Environmental Certification RoHS
Environmentally Friendly Yes
Form Factor Pole-mountable
Input Voltage 220 V AC
Limited Warranty 1 Year
Manufacturer Tripp Lite by Eaton
Manufacturer Part Number B130-101A-2
Manufacturer Website Address http://www.tripplite.com
Marketing Information

Tripp Lite's B130-101A-2 allows you to extend a 1920 x 1440 (60Hz) video and audio signal up to 500 ft., or a 1024 x 768 (60Hz) video and audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6). The range and number of monitors/speakers can be further expanded by adding B132-110A repeater units. Connect up to 3 repeaters, with the B130-101A-2 receiver at the end of the chain, for a total of 4 sets of monitors and speakers. A 1920 x 1440 (60Hz) Video and Audio signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) Video and Audio signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver. For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware for both local and remote units, allowing them to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc.

Maximum Operating Distance 1000 ft
Maximum Video Resolution 1920 x 1440
Media Type Supported Twisted Pair
Network (RJ-45) Yes
Number of Input Devices Suppo 1
Number of Network (RJ-45) Por 2
Number of Output Devices Supp 2
Number of VGA Inputs 1
Number of VGA Outputs 2

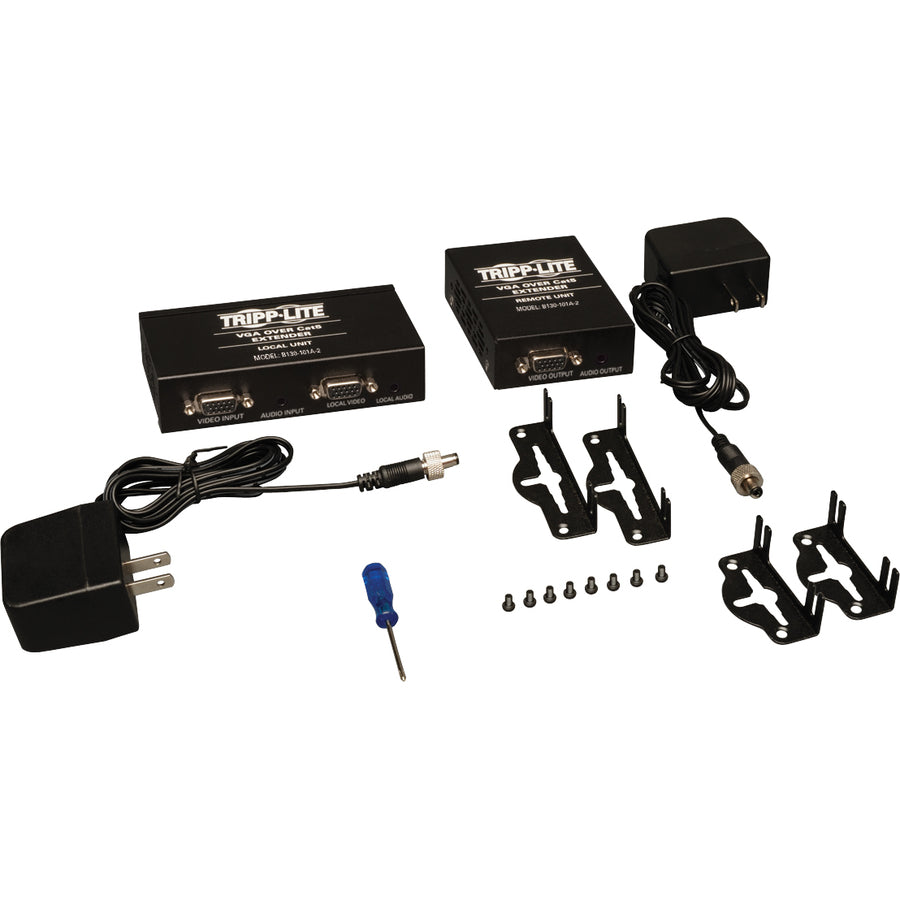

Package Contents
  • Local (Transmitter) Unit
  • Remote (Receiver) Unit
  • Mini-Screwdriver for EQ/Gain Adjustment
  • 2 x Mounting Hardware Kits
  • 2 x External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
  • Owner's Manual
Product Model B130-101A-2
Product Name VGA + Audio over Cat5 Extender Kit (Transmitter + Receiver)
Product Type Video Extender Transmitter/Receiver
TAA Compliant Yes
Twisted Pair Cable Standard Category 6
VGA In Yes
VGA Out Yes
Tripp Lite VGA & Audio over Cat5/Cat6 Video Extender Kit Transmitter Receiver TAA GSA - 1 Input Device - 2 Output Device - 1000 ft Range - 2 x Network (RJ-45) - 1 x VGA In - 2 x VGA Out - 1920 x 1440 - Twisted Pair - Category 6 - Wall Mountable, Rack-mountable, Pole-mountable - TAA Compliant
