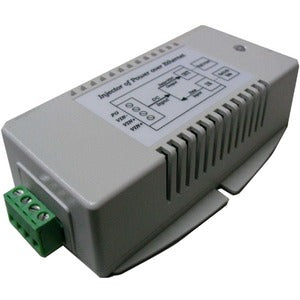

Tycon Power (TP-DCDC-4856G-VHP) 36-72VDC In, 56VDC 70W Passive POE Out DCDC

Item #: 3880251   |   Model #: 633090396595

  |   10 Questions
Regular price
Sale price
Regular price
Sold out
Unit price

1 Each

Special Buy

Type Value
Brand Name Tycon Power
Certifications & Standards
  • FCC Class B EN55022 Class B
  • UL1950
  • CSA 22.2
  • Ubiquiti airFiber Antennas
  • Axis Q60 Series PTZ Cameras
Depth 4.9"
Environmental Certification T�V
Environmentally Friendly Yes
Form Factor External
Height 1.5"
Input Ports 1 x Gigabit Ethernet
Input Voltage 72 V DC
Limited Warranty 1 Year
Manufacturer Tycon Power Systems
Manufacturer Part Number TP-DCDC-4856G-VHP
Manufacturer Website Address http://www.tyconpower.com
Marketing Information The TP-DCDC-4856G-VHP is a very high power DC to DC converter / passive POE inserter designed for Ubiquiti airFiber™ antennas and also various outdoor PTZ security cameras.

The DCDC converter supplies 70W passive POE power on all 8 Ethernet wires.

They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated.
Maximum Output Current 1.25 A
Maximum Output Power 70 W
Maximum Output Voltage 56 V DC
Output Ports 1 x Gigabit Ethernet
Product Name (TP-DCDC-4856G-VHP) 36-72VDC In, 56VDC 70W Passive POE Out DCDC
Product Type PoE Injector
Protection Type Over Voltage
Width 3"
