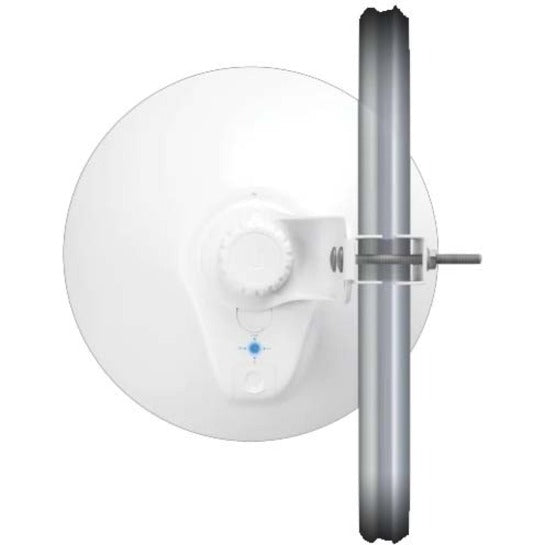

Ubiquiti LTU Pro 600 Mbps Wireless Access Point with 24 dBi Dish Antenna and PoE

Ubiquiti LTU Pro 600 Mbit/s Wireless Access Point

The Ubiquiti LTU Pro (Part Number: LTU-PRO-US) is a high-performance wireless access point designed for reliable point-to-multi-point (PtMP) deployments in the 5 GHz band. Equipped with an integrated 24 dBi dish antenna, it offers exceptional range and signal strength, making it suitable for outdoor applications where long-distance connectivity is essential. The LTU Pro leverages Ubiquiti's proprietary LTU technology, which provides up to 600 Mbps of real TCP/IP throughput and supports modulation rates of up to 4096QAM, surpassing the limitations of standard Wi-Fi solutions.

This device supports both bridged and built-in NAT router modes, offering flexibility to adapt to various network configurations. Its frequency split capability enables separate TX and RX channels, helping to avoid interference and optimize performance. The robust pole-mount design ensures quick installation with adjustable elevation, allowing for precise aiming within a ±15-degree range, which simplifies outdoor deployment in diverse environments.

Channel width flexibility is a key feature, with options ranging from 10 MHz up to 100 MHz, enabling tailored bandwidth settings to match local interference conditions. Auto power adjustments automatically set the optimal output power, ensuring stable and efficient network operation. Signal control is managed via the access point, which regulates TX output levels to maintain network stability and maximize throughput. Configuration can be performed through either the intuitive LTU Configuration Interface or Ubiquiti's Network Management System (UNMS™), providing comprehensive management options for network administrators.

The integrated GPS module enhances synchronization across the network and enables map and Fresnel views within the dashboard, facilitating precise alignment and network planning. The LTU Pro is built with durability in mind, featuring a pole-mountable form factor and an integrated mechanical tilt for easy adjustment. It includes a 24V, 0.5A Gigabit PoE adapter and pole-mount kit for straightforward setup. This device is ideal for outdoor wireless backhaul, point-to-multi-point applications, or extending network coverage in challenging environments, delivering high throughput and reliable performance in a compact, weather-resistant package.

Features:

• Proprietary Ubiquiti LTU Processor for optimized performance

• Integrated 24 dBi dish antenna for extended outdoor coverage

• Supports channel widths from 10 MHz to 100 MHz for flexible bandwidth management

• Automatic power adjustment for stable signal levels

• Frequency split capability to avoid interference

• Pole-mountable design with mechanical tilt adjustment

• Supports both bridged and NAT router modes for deployment versatility

• Built-in GPS for synchronization and network mapping

• Gigabit Ethernet port with PoE support for easy power and data connection

• Supports high modulation rates of up to 4096QAM for maximum throughput
