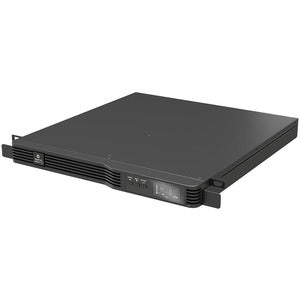

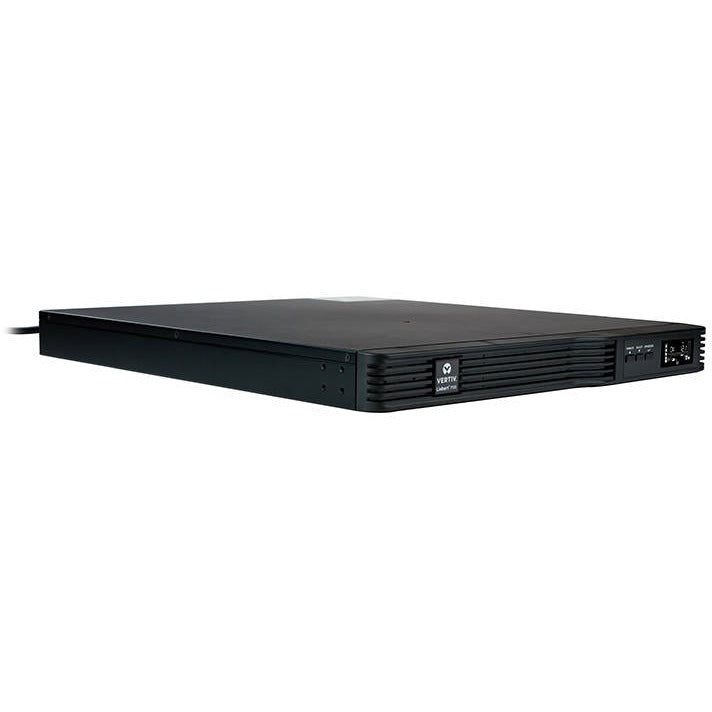

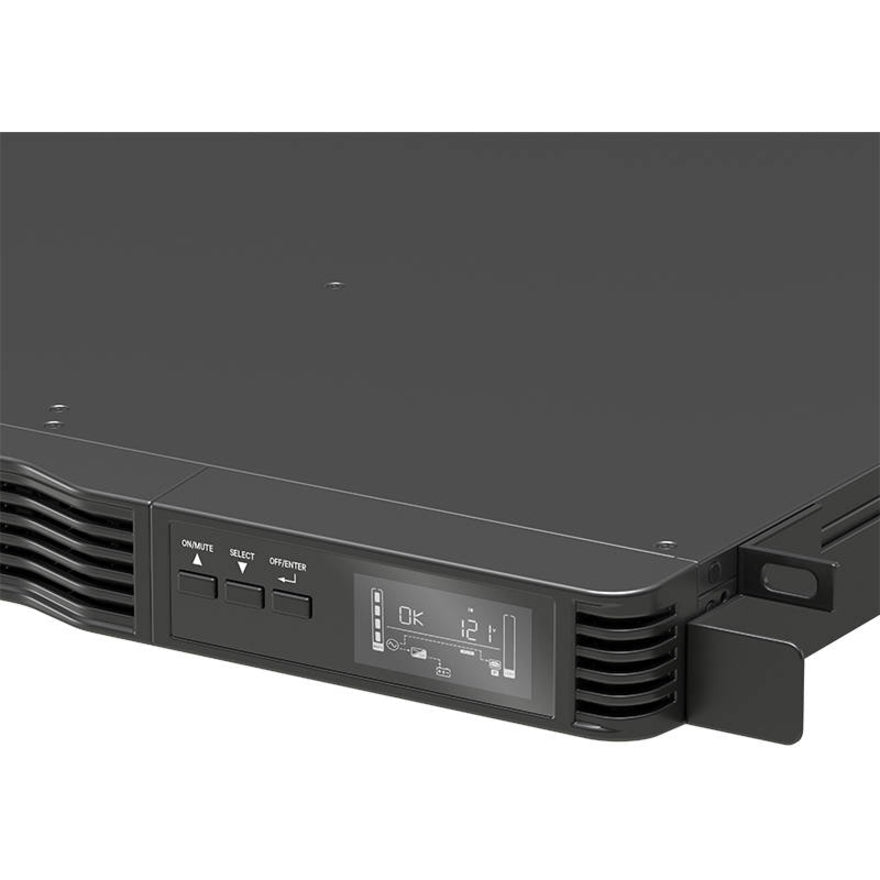

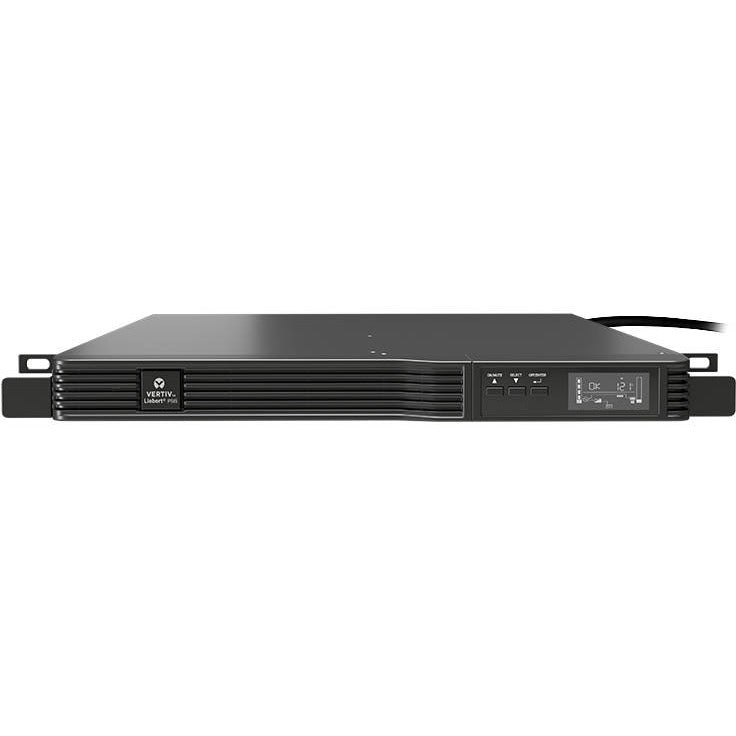

ContactVertiv Liebert PSI5 UPS - 1440VA 1350W 120V 1U Line Interactive AVR Rack Mount UPS, 0.9 Power Factor
Item #: 5707114 | Model #: 0767041028034
| 10 Questions
| Type | Value |
|---|---|
| Application/Usage | Network Closet |
| AVR | Yes |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 14 Minute |
| Battery Capacity | 9000 mAh |
| Battery Characteristics | Valve-regulated, Non-spillable |
| Battery Chemistry | Lead Acid |
| Battery Size | 6V |
| Brand Name | Liebert |
| Country of Origin | China |
| DC System Voltage | 6 V DC |
| Depth | 22.4" |
| Energy Star | No |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| EPO Port | Yes |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Hot Swappable | Yes |
| Input Frequency | 65 Hz |
| Input Voltage | 120 V AC |
| Input Voltage Range | 75 V AC 146 V AC |
| Limited Warranty | 2 Year |
| Load Capacity | 1500 VA/1350 W |
| Manufacturer | Vertiv |
| Manufacturer Part Number | PSI5-1500RM1201U |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Marketing Information | The Vertiv Liebert PSI5 1440VA UPS is designed to protect and extend the life of your electronic devices in school, home and office. This 1U rack mount UPS offers cost-effective protection from downtime and damage caused by power outages, brownouts, sags, surges or noise interference. Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment. Voltage regulation is from 83 to 159 VAC without using the battery. With advanced pure sine wave output, this line interactive UPS ensures availability of critical IT applications like network closets and small data centers. This battery backup allows orderly shutdown of critical equipment. It takes less than 6 milliseconds transfer time to battery. Add an optional Vertiv Liebert Unity communication card and remotely monitor up to 50 UPS systems through the free Vertiv Trellis Power Insight Application. It has a 2-year Vertiv UPS warranty with optional extensions for up to 5 years total coverage. |
| Maximum Operating Elevation | 9842.52 ft |
| Maximum Operating Temperature | 104°F (40°C) |
| Network (RJ-45) | No |
| Number of Batteries | 6 |
| Operating Humidity | 20% - 90% |
| Output Frequency | 60 Hz |
| Output Voltage | 125 V AC |
| Package Contents |
|
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-15P |
| Product Model | PSI |
| Product Name | PSI5-1500RM1201U UPS |
| Product Series | PSI5 |
| Product Type | Line-interactive UPS |
| Rack Height | 1U |

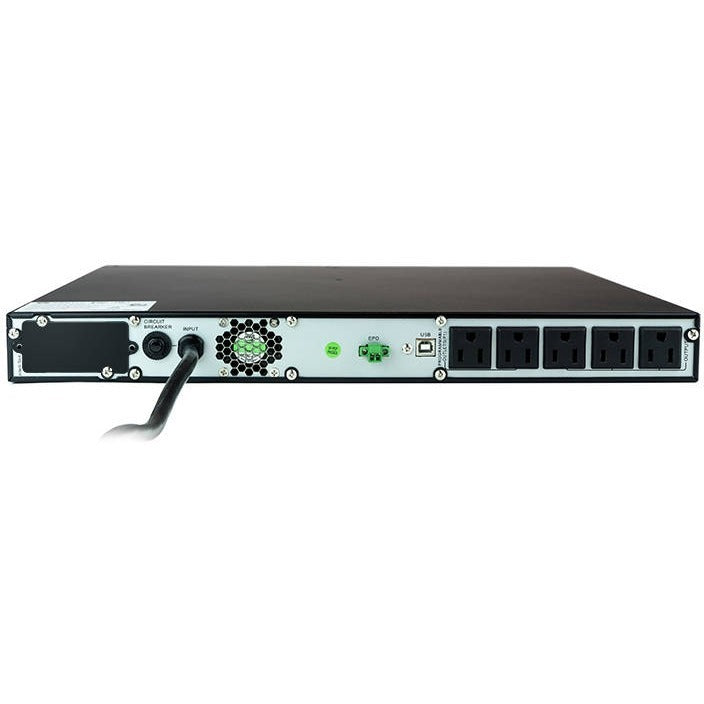

| Receptacle Detail | 5 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Serial Port | No |
| Software Included | Power Insight 2.2 |
| Storage Relative Humidity | 20% - 90% |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| TAA Compliant | No |
| Transfer Time | 4 ms |
| Typical Battery Recharge Time | 6 Hour |
| USB (HID Compliant) Port | Yes |
| Waveform Type | Pure Sine Wave |
| Weight (Approximate) | 45.60 lb |
| Width | 17.2" |
